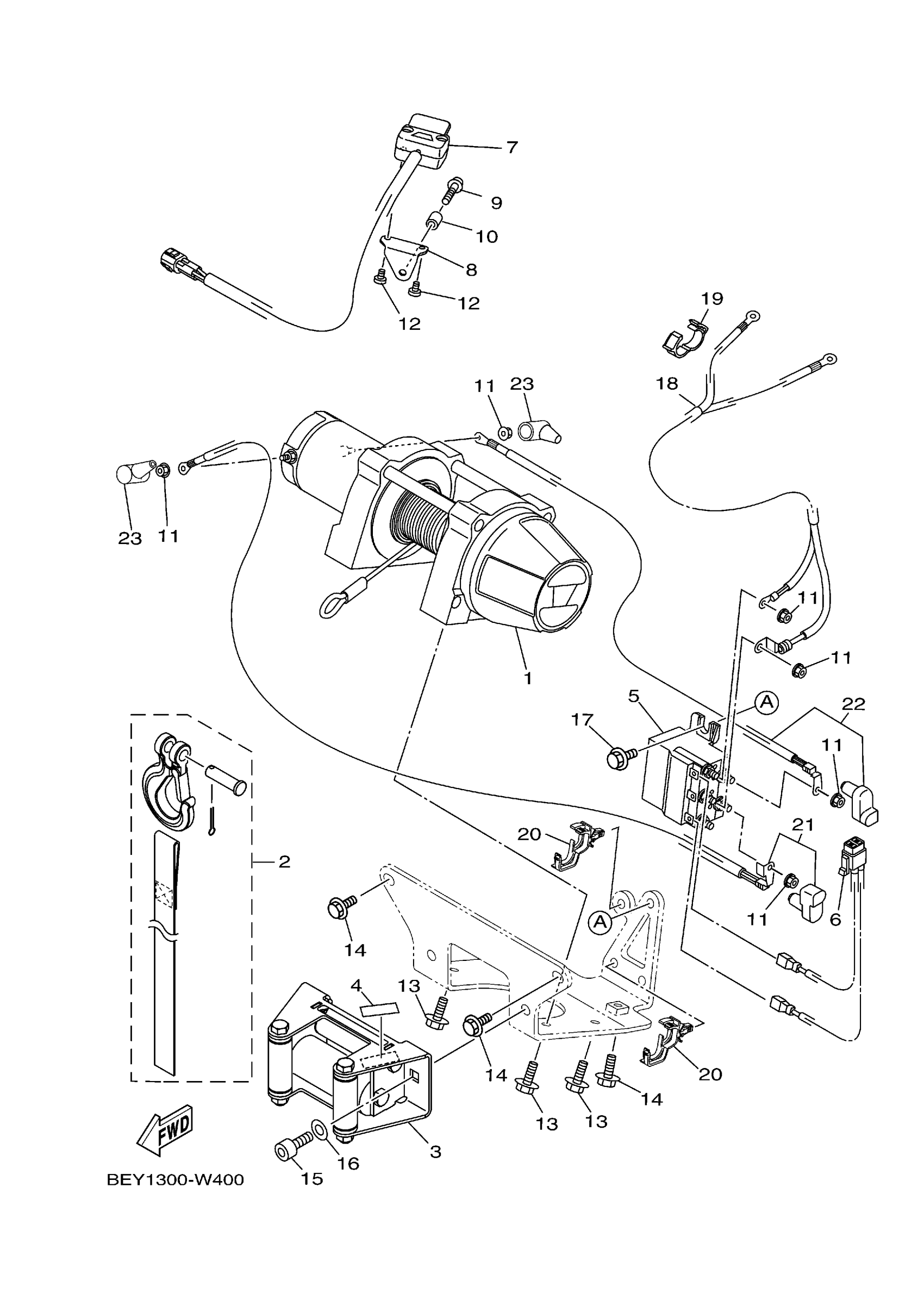

Yamaha YFM45KPSST (KODIAK 450 EPS SE) D28B 2025 WINCH Diagram

#

Description
Price

1

WINCH

BFE-F845V-00-00

$517.96

2

HOOK

BFE-F8488-00-00

$40.49

3

ROLLER

BFE-F178G-00-00

$57.01

4

LABEL 2

BAS-F8459-00-00

$4.34

5

CONTACTOR

BAS-H232W-00-00

$141.16

6

WIRE HARNESS

BFE-82105-00-00

$11.26

7

SWITCH ASSY

BEY-H259E-00-00

Unavailable

8

BRACKET, SWITCH

BFE-F1453-00-00

Unavailable

9

BOLT, FLANGE

95022-06040-00

$2.81

10

COLLAR (1T2)

90387-07598-00

$4.51

11

NUT, FLANGE

95702-06500-00

$1.78

12

SCREW, SPECIAL

BFE-F8382-00-00

$0.62

13

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.43

14

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.43

15

BOLT

91312-10020-00

$5.01

16

WASHER, PLATE

90201-10033-00

Unavailable

17

BOLT, WITH WASHER

90119-06240-00

Unavailable

18

WIRE, SUB LEAD

BEY-H2309-01-00

Unavailable

19

CLAMP

90464-16003-00

Unavailable

20

CLAMP(4SV)

90464-20237-00

Unavailable

21

WIRE, LEAD 3

BEY-H2149-00-00

Unavailable

22

WIRE, LEAD 4

BEY-H2148-00-00

Unavailable

23

PROTECTOR

BAS-F3472-00-00

Unavailable
