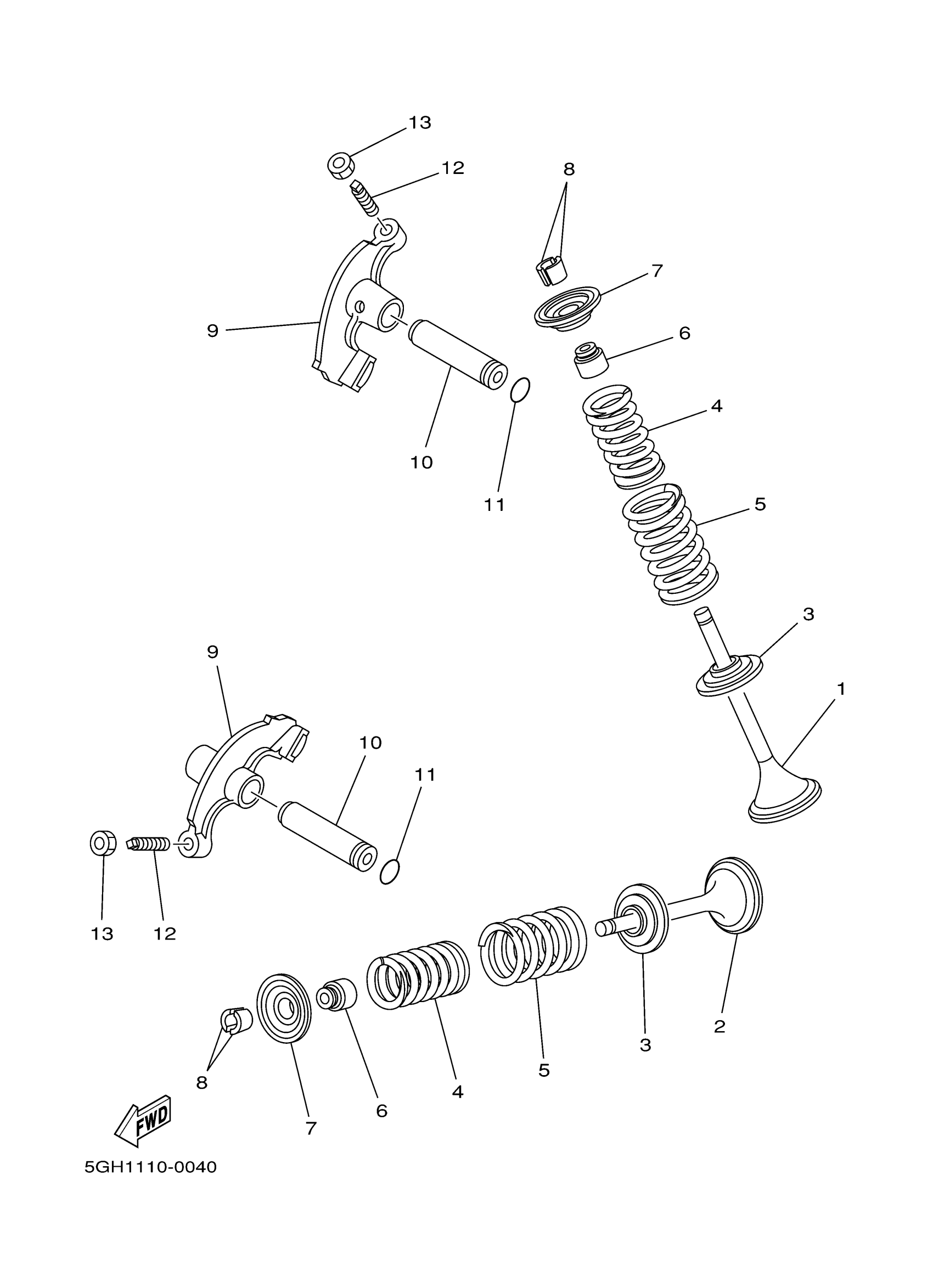

Yamaha YFM45KPSST (KODIAK 450 EPS SE) D28B 2025 VALVE Diagram

VALVE, INTAKE

5GH-12111-00-00

$64.59

VALVE, EXHAUST

5GH-12121-00-00

$69.91

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.40

SPRING, VALVE INNER

22U-12113-00-00

Unavailable

SPRING, VALVE OUTER

1UY-12114-01-00

Unavailable

SEAL, VALVE STEM 2

M01-12129-00-00

$11.36

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.43

LOCK, VALVE SPRING

1J7-12118-00-00

$5.99

ARM, VALVE ROCKER

3GD-12151-00-00

$51.46

SHAFT, ROCKER

3Y1-12156-00-00

Unavailable

O-RING (1J7)

93210-09350-00

$5.42

SCREW, VALVE ADJUSTING

31G-12159-02-00

$7.96

NUT, LOCK

31G-12158-00-00

$5.37
