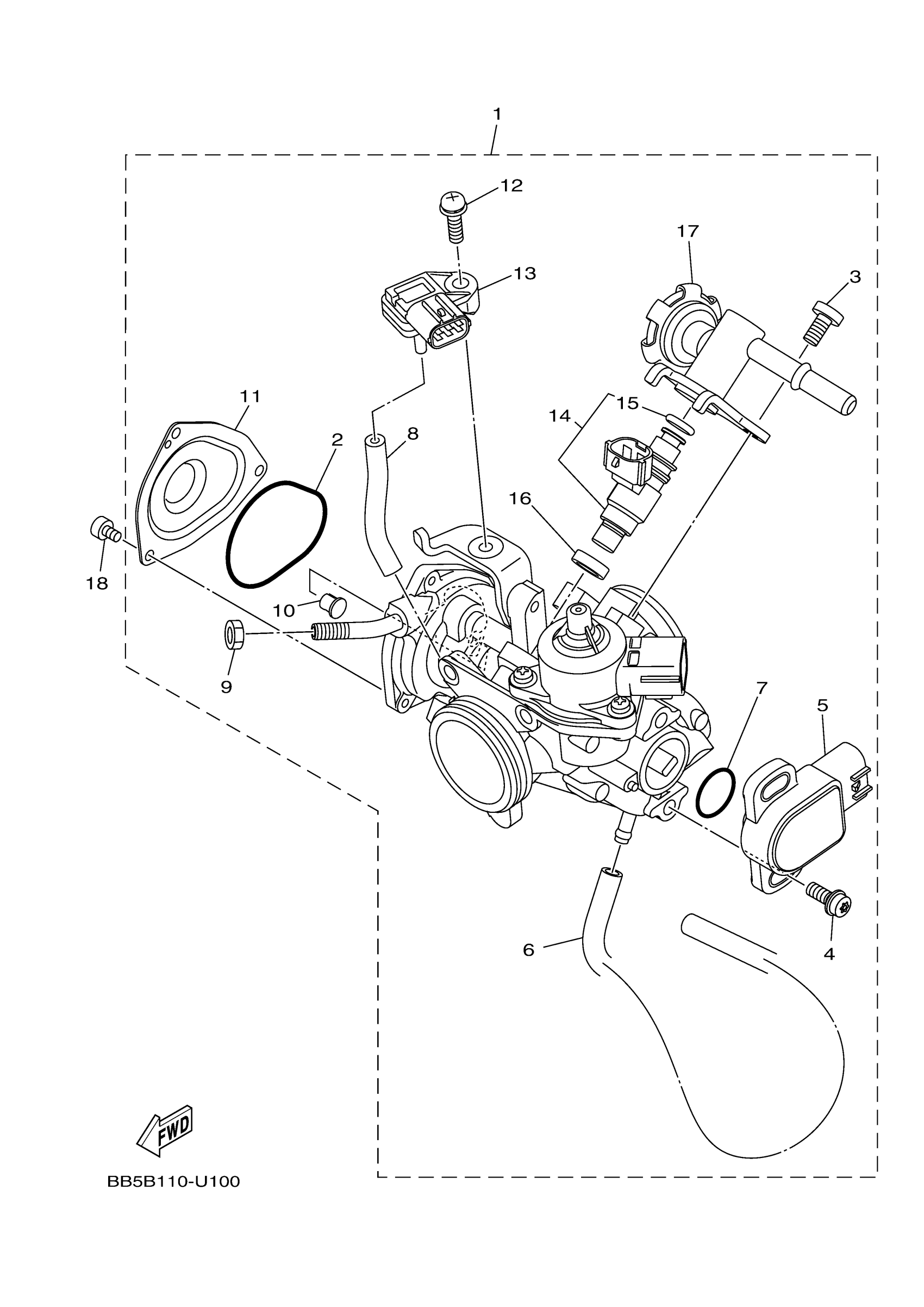

Yamaha YFM45KPSST (KODIAK 450 EPS SE) D28B 2025 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BB5-13750-02-00

Unavailable

2

O-RING

5LP-14147-00-00

$11.99

3

SCREW, PAN

98517-06012-00

$3.78

4

SCREW

8CC-14216-10-00

$7.99

5

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

6

HOSE, AIR

BB5-13543-00-00

$34.99

7

O-RING

5YP-14562-00-00

$7.99

8

HOSE

5PS-14987-00-00

$5.88

9

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

10

GUIDE, CABLE

1UY-14155-00-00

$18.49

11

COVER 1

1S3-14293-00-00

Unavailable

12

SCREW

2C0-14216-00-00

$3.28

13

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

14

INJECTOR

BB5-13761-00-00

$200.99

15

O-RING

5PS-14147-00-00

$13.49

16

GASKET, MANIFOLD

8FP-13556-00-00

Unavailable

17

DELIVERY PIPE ASSY 1

BB5-13160-00-00

Unavailable

18

BOLT

91312-04006-00

Unavailable
