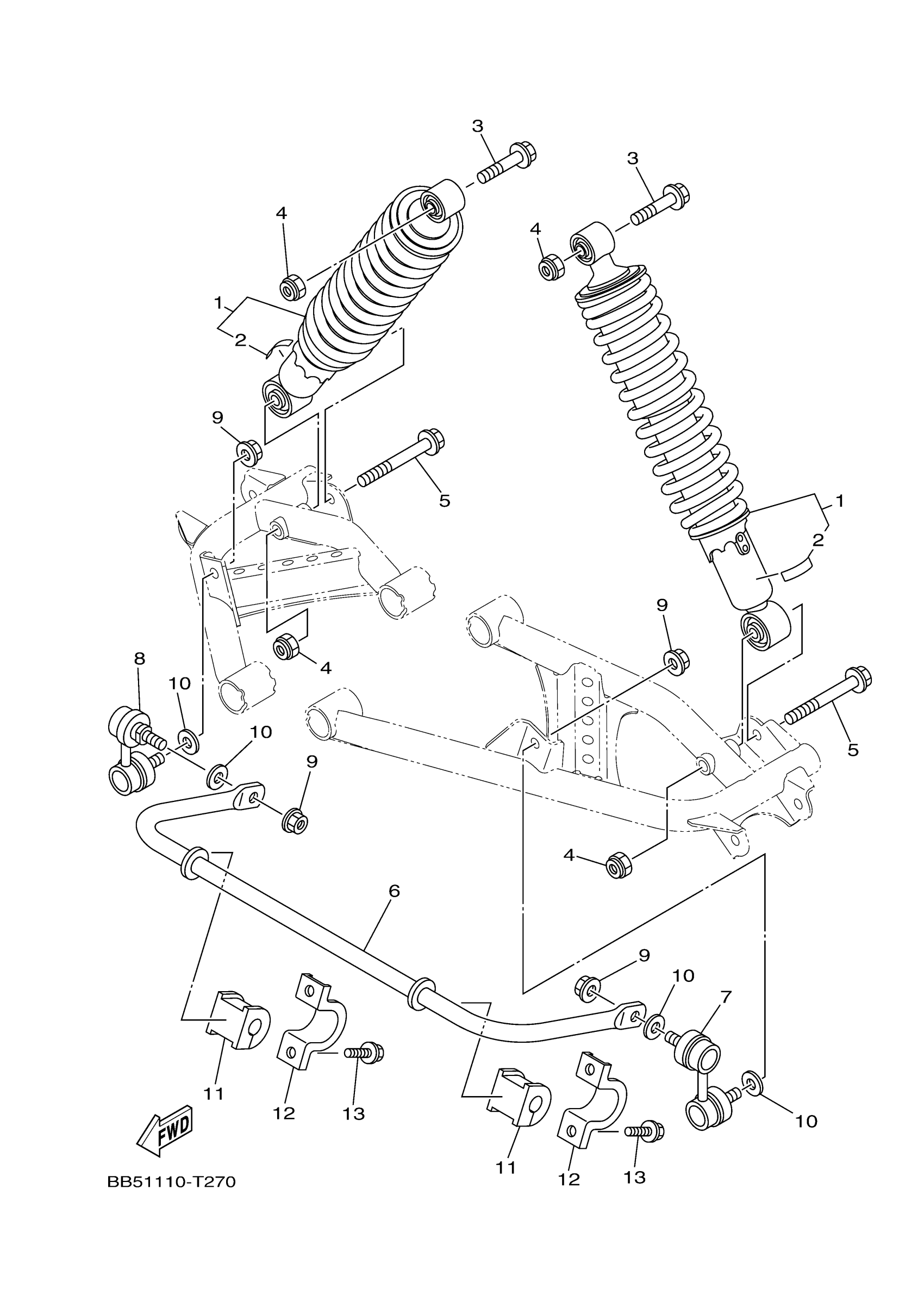

Yamaha YFM45KPSST (KODIAK 450 EPS SE) D28B 2025 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

BB5-F2200-00-00

Unavailable

2

LABEL, WARNING

BB5-F2259-00-00

$2.04

3

BOLT, FLANGE

90105-10841-00

$1.75

4

NUT, SELF-LOCKING

90185-10012-00

$2.78

5

BOLT, FLANGE

90105-10202-00

$5.43

6

BAR, STABILIZER

1CT-G7491-00-00

$60.91

7

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

8

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

9

NUT, S/L FLANGE

95602-10200-00

$2.14

10

WASHER, PLATE

90201-10035-00

$3.42

11

BUSH, STABILIZER F

1D9-F386G-10-00

Unavailable

12

COVER, STABILIZER

1D9-F386H-01-00

$7.72

13

BOLT, FLANGE

95817-08012-00

$3.81
