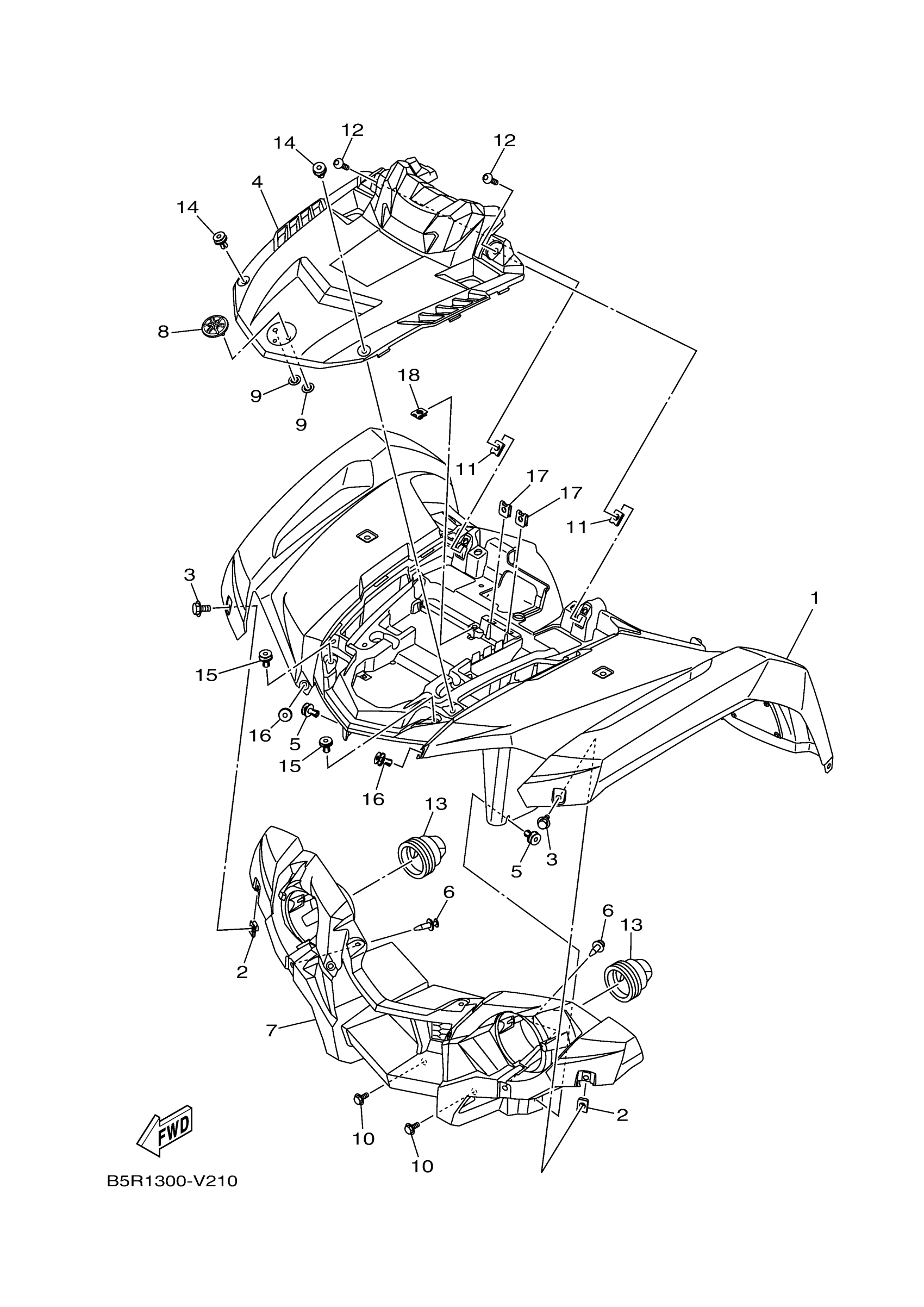

Yamaha YFM45KPSST (KODIAK 450 EPS SE) D28B 2025 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

D28-F1500-01-00

$151.99

2

NUT, SPRING(4ES)

90183-06069-00

Unavailable

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

PANEL, FRONT

BB5-F3391-00-00

Unavailable

5

RIVET

90269-07010-00

$4.35

6

RIVET

90269-06800-00

$2.18

7

GRILLE, FRONT

BB5-F8309-00-00

$44.99

8

TUNING FORK MARK

1XD-F175B-01-00

$14.49

9

NUT, SPRING

90183-06071-00

Unavailable

10

BOLT

90109-06043-00

Unavailable

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$5.60

13

CAP

5UH-F8349-00-00

$14.49

14

RIVET

90269-07010-00

$4.35

15

RIVET

90269-07010-00

$4.35

16

RIVET

90269-07010-00

$4.35

17

NUT, SPRING

90183-05008-00

Unavailable

18

NUT, SPRING(4ES)

90183-06069-00

Unavailable
