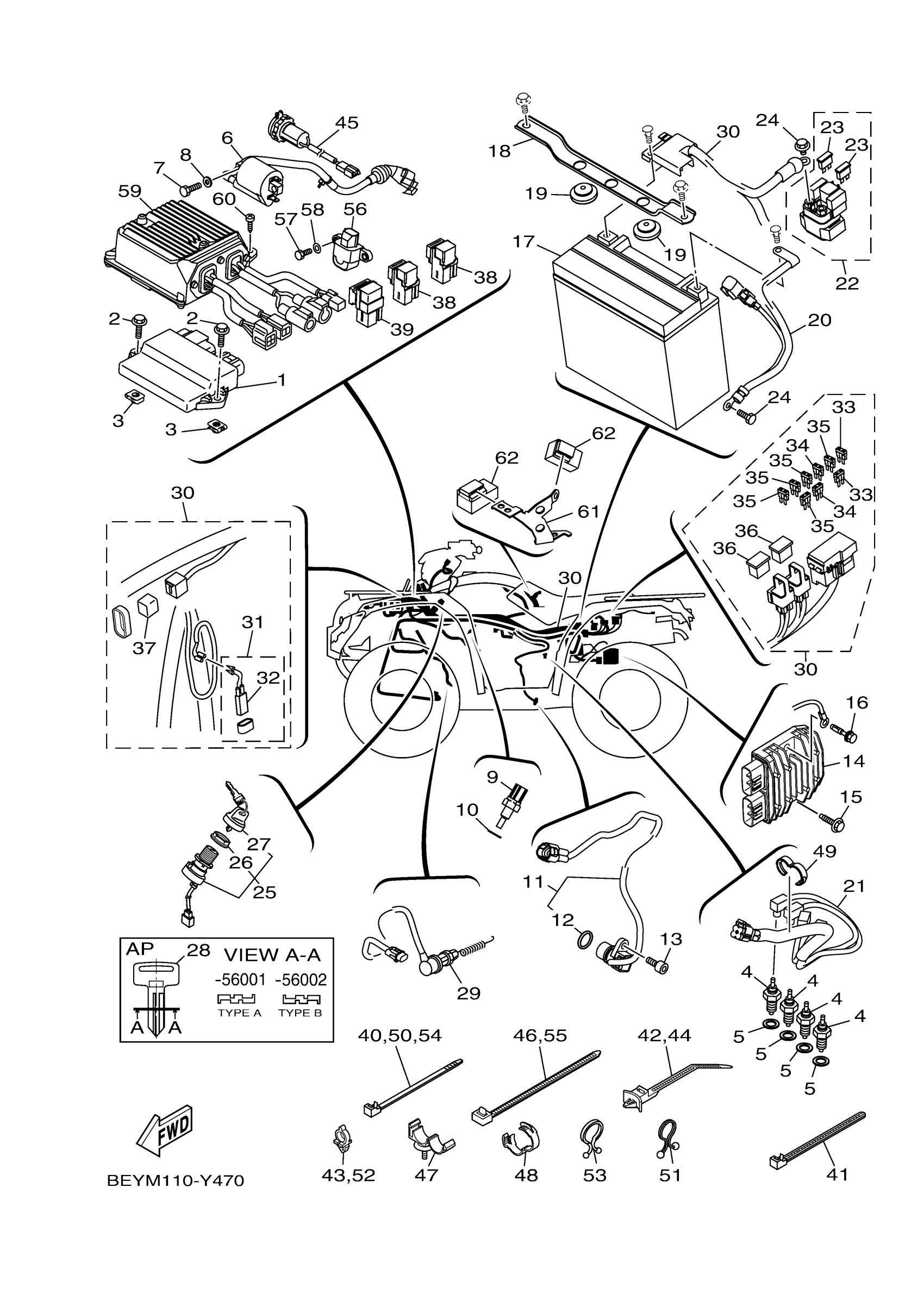

Yamaha YFM45KPSST (KODIAK 450 EPS SE) D28B 2025 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

B5R-8591A-21-00

Unavailable

2

BOLT, FLANGE DEEP RECESS

95E32-06020-00

$0.77

3

NUT, SPRING(4ES)

90183-06069-00

$5.69

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

5

GASKET (1KH,1.0T)

90430-10148-00

$4.44

6

IGNITION COIL ASSY

BB5-82320-03-00

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

THERMO UNIT

52B-H3591-00-00

Unavailable

10

GASKET

90430-10004-00

$5.55

11

SENSOR, SPEED

3C2-83755-11-00

$107.15

12

O-RING

4D9-81168-00-00

$4.04

13

BOLT,SOCKET

91317-06016-00

$1.15

14

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

$203.67

15

BOLT, FLANGE

90105-06833-00

$1.63

16

BOLT

90109-06865-00

$0.73

17

BATTERY ASSY (YUASA YTX20L-BS)

5FU-H2100-21-00

$189.32

18

BRACKET, BATTERY

5ND-H2128-02-00

Unavailable

19

PAD, BATTERY

371-82121-00-00

Unavailable

20

WIRE, MINUS LEAD

BB5-82116-00-00

$25.73

20

WIRE, MINUS LEAD

BB5-82116-01-00

Unavailable

21

WIRE, LEAD

5ND-82541-01-00

Unavailable

22

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

23

FUSE (10A)

42X-82151-00-00

Unavailable

24

BOLT, FLANGE

95022-06008-00

Unavailable

25

MAIN SWITCH ASSY

28P-82510-02-00

Unavailable

26

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

27

CAP, KEY

3HN-82579-00-00

Unavailable

28

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

28

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable

29

STOP SWITCH ASSY

BB5-82530-01-00

Unavailable

30

WIRE HARNESS ASSY

B5R-82590-10-00

Unavailable

30

WIRE HARNESS ASSY

B5R-82590-11-00

Unavailable

31

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

32

THERMO SWITCH ASSY

4GB-82560-00-00

Unavailable

33

FUSE (15A)

67F-82151-50-00

$3.48

34

FUSE

5JJ-82151-20-00

Unavailable

35

. FUSE (10A)

67F-82151-40-00

$6.07

36

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

37

DIODE ASSY

3WP-81980-00-00

Unavailable

38

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

39

RELAY ASSY

5DM-81950-01-00

Unavailable

40

CLAMP

90464-51800-00

Unavailable

41

CLAMP(JN6)

90464-31827-00

Unavailable

42

CLAMP

90464-38800-00

Unavailable

43

CLAMP

90464-12830-00

Unavailable

44

CLAMP

90464-38800-00

Unavailable

45

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

46

CLAMP

90464-48800-00

Unavailable

47

CLAMP

90464-12830-00

Unavailable

48

CLAMP

90464-28003-00

Unavailable

49

CLAMP

90464-16001-00

Unavailable

50

CLAMP

90464-51800-00

Unavailable

51

CLAMP

90464-25267-00

Unavailable

52

CLAMP

90464-12830-00

Unavailable

53

CLAMP

90464-37257-00

Unavailable

54

CLAMP

90464-51800-00

Unavailable

55

CLAMP

90464-48800-00

Unavailable

56

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

57

BOLT(6A1)

97095-05016-00

Unavailable

58

WASHER, PLAIN (646)

92990-05600-00

Unavailable

59

POWER STRG. CONT.

B5R-859A0-01-00

Unavailable

60

BOLT, FLANGE DEEP RECESS

95E32-06020-00

$0.77

61

HOLDER

B5R-H331M-00-00

Unavailable

62

RELAY ASSY

5JJ-81950-11-00

Unavailable
