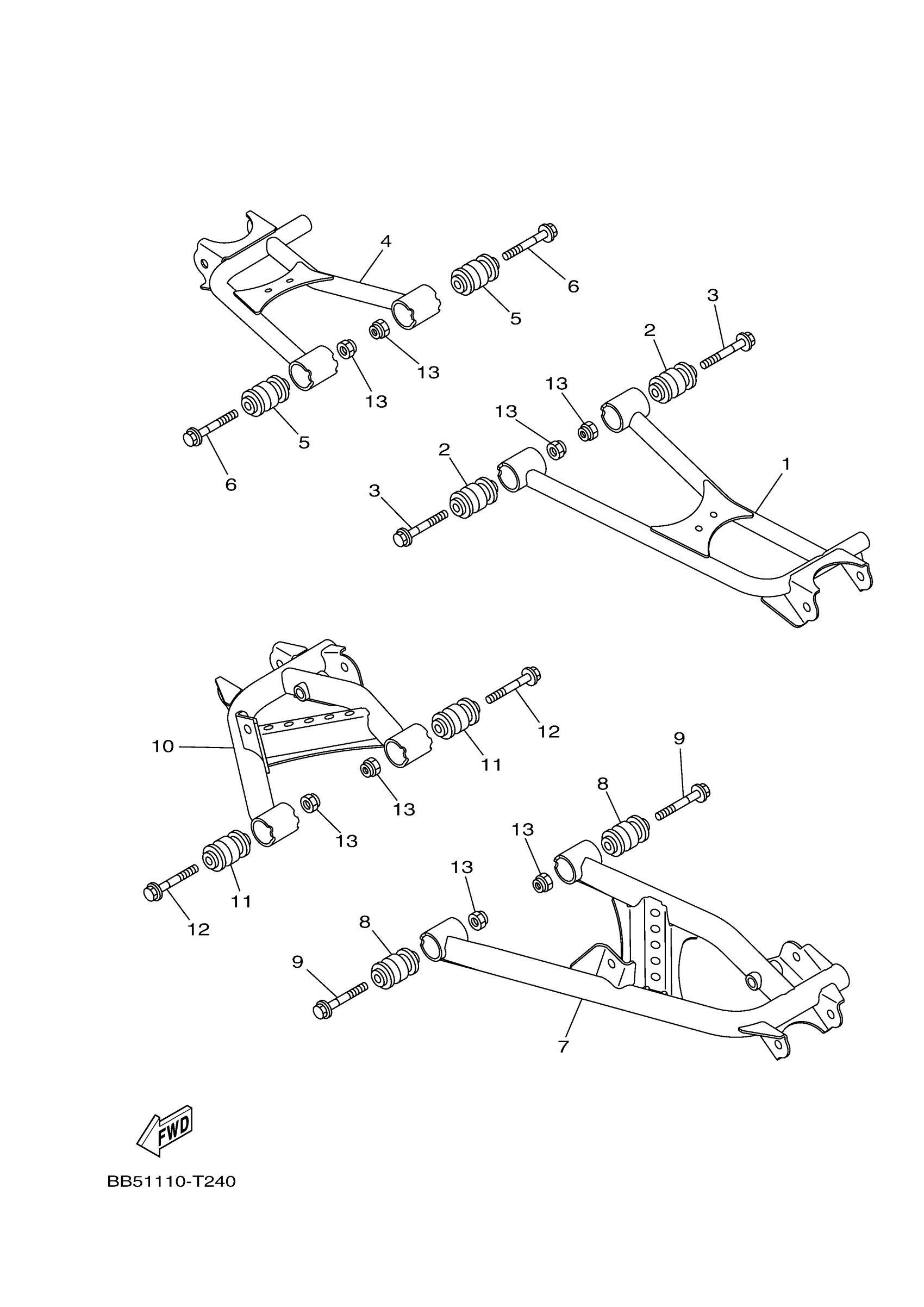

Yamaha YFM45KPSPL (KODIAK 450 EPS SE) BEYM 2023 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

BB5-F2171-01-00

$40.99

2

BUSH

1HP-F3526-00-00

$22.99

3

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

4

ARM, REAR 2

BB5-F2172-01-00

$43.99

5

BUSH

1HP-F3526-00-00

$22.99

6

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

7

ARM 1

BB5-F217M-01-00

$64.99

8

BUSH

1HP-F3526-00-00

$22.99

9

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

10

ARM 2

BB5-F217N-01-00

$64.99

11

BUSH

1HP-F3526-00-00

$22.99

12

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

13

NUT, S/L FLANGE

95602-10200-00

$4.82
