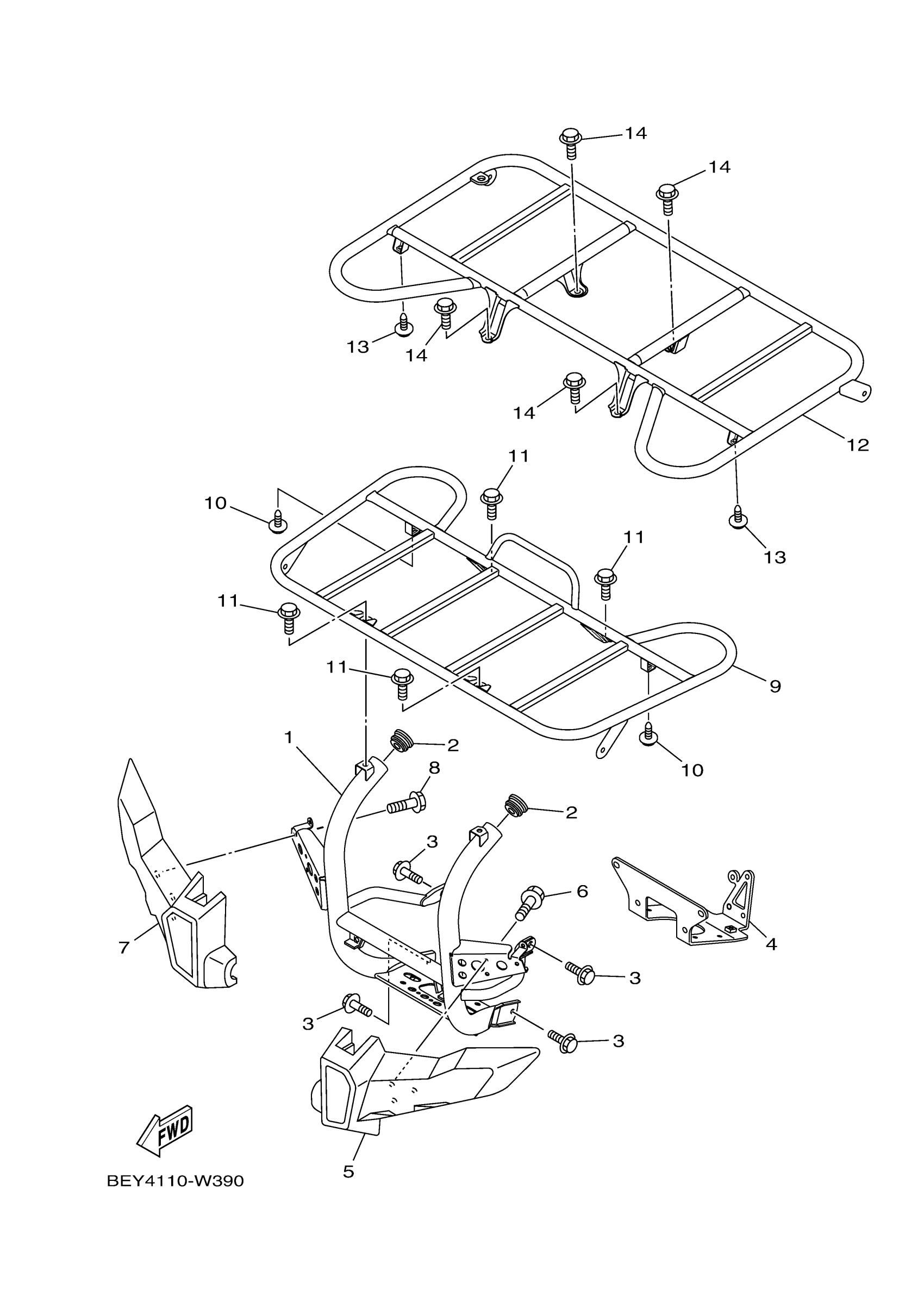

Yamaha YFM45KPSNL (KODIAK 450 EPS SE) BEYD 2022 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT

B5R-F845N-10-00

$311.99

2

PLUG

90338-29800-00

$8.49

3

BOLT, FLANGE

95817-08014-00

$5.60

4

BRACKET 1

BEY-F8426-00-00

$79.99

5

DAMPER 1

37S-F8415-00-00

$94.99

6

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.75

7

DAMPER 2

37S-F8416-00-00

$91.99

8

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.75

9

CARRIER, FRONT

BB5-F4841-30-00

$151.99

10

BOLT, WITH WASHER

90119-06157-00

$8.49

11

BOLT, FLANGE

95817-08012-00

$5.49

12

CARRIER, REAR

BB5-F4842-30-00

Unavailable

13

BOLT, WITH WASHER

90119-06157-00

$8.49

14

BOLT, FLANGE

95817-08012-00

$5.49
