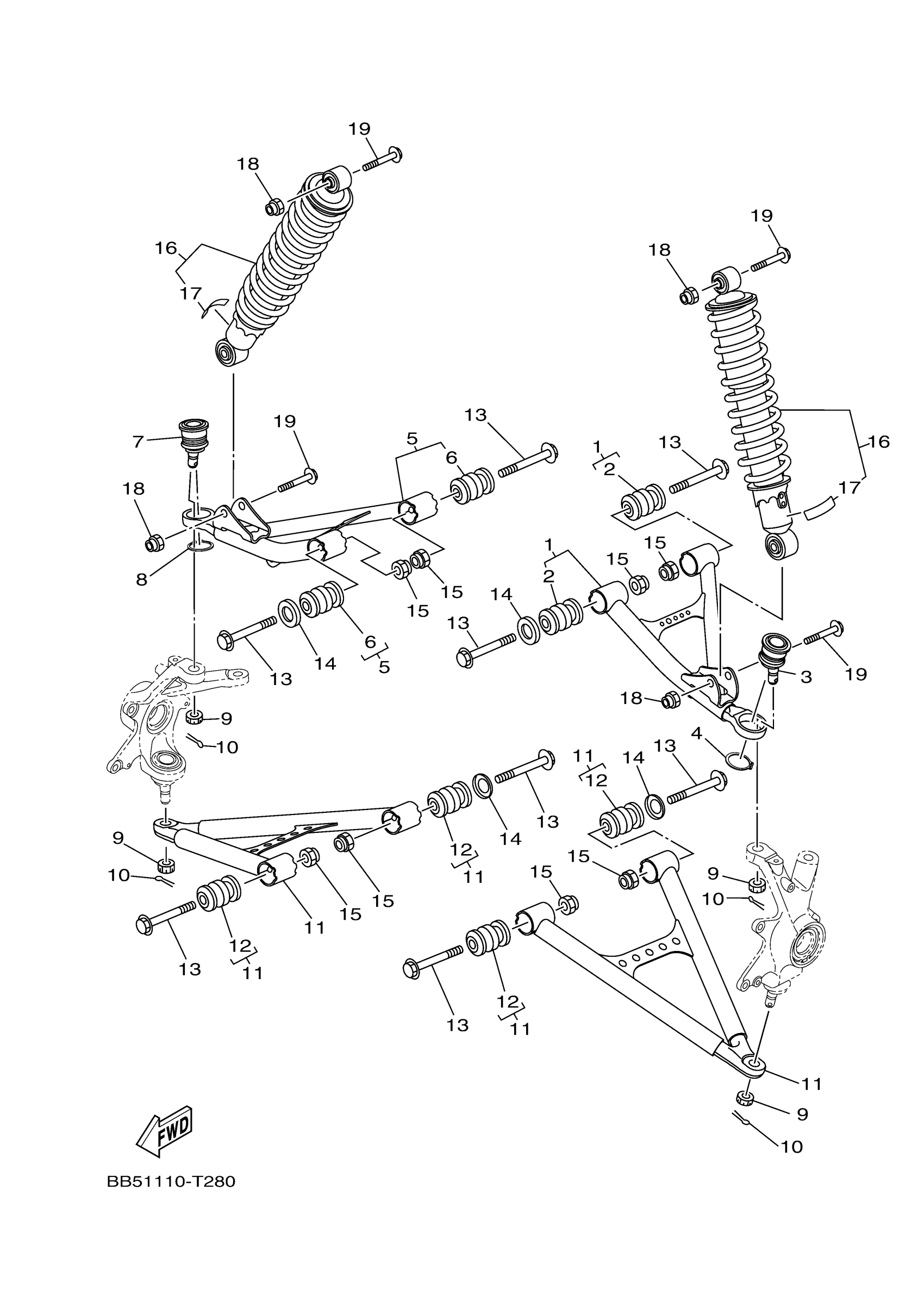

Yamaha YFM45KPSLG (KODIAK 450 EPS SE) B5R4 2020 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

BB5-F3540-02-00

Unavailable

2

BUSH

1HP-F3526-00-00

$22.99

3

BALL JOINT 2

3B4-23579-01-00

$83.99

4

CIRCLIP(4A6)

99009-30400-00

$8.49

5

FRONT UPPER ARM CO

BB5-F3550-02-00

$65.99

6

BUSH

1HP-F3526-00-00

$22.99

7

BALL JOINT 2

3B4-23579-01-00

$83.99

8

CIRCLIP(4A6)

99009-30400-00

$8.49

9

NUT, CASTLE

90171-12001-00

$7.49

10

PIN, COTTER

91490-25020-00

$3.19

11

FRONT LOWER ARM CO

BB5-F3570-01-00

$65.99

12

BUSH

1HP-F3526-00-00

$22.99

13

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

14

WASHER

5KM-22149-10-00

$7.99

15

NUT, S/L FLANGE

95602-10200-00

$4.82

16

SHOCK ABSORBER ASS

BB5-F3390-00-00

Unavailable

17

LABEL, WARNING

BB5-F2259-00-00

Unavailable

18

NUT, SELF-LOCKING

90185-10012-00

Unavailable

19

BOLT, FLANGE

90105-10841-00

Unavailable
