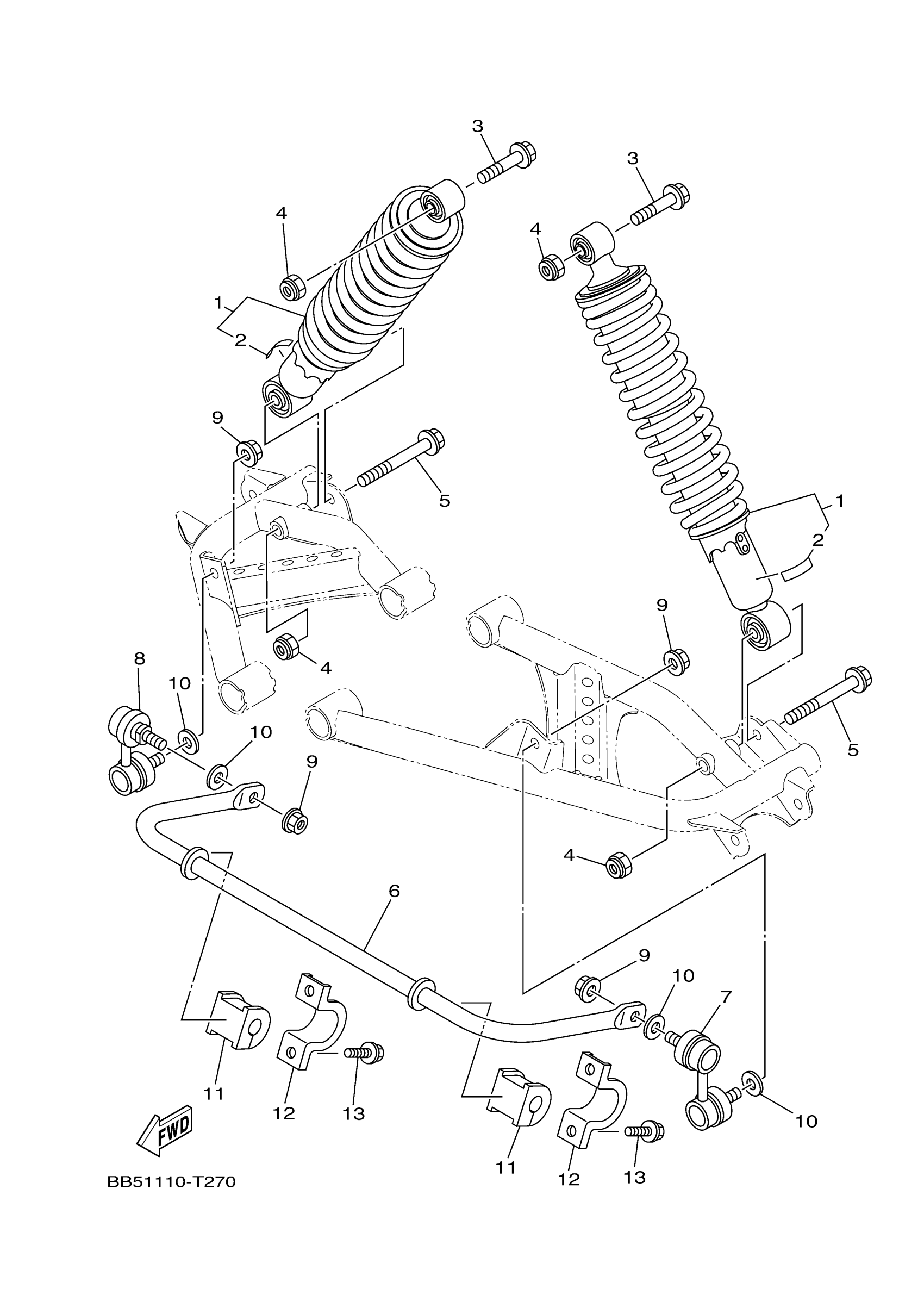

Yamaha YFM45KPLKL (KODIAK 450 EPS 4WD) BB5F 2019 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

BB5-F2200-30-00

$149.37

2

LABEL, WARNING

BB5-F2259-00-00

$2.14

3

BOLT, FLANGE

90105-10841-00

$1.75

4

NUT, SELF-LOCKING

90185-10012-00

$2.78

5

BOLT, FLANGE

90105-10202-00

$5.68

6

BAR, STABILIZER

1CT-G7491-00-00

$63.72

7

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

8

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

9

NUT, S/L FLANGE

95602-10200-00

$2.14

10

WASHER, PLATE

90201-10035-00

$3.42

11

BUSH, STABILIZER F

1D9-F386G-10-00

$6.88

12

COVER, STABILIZER

1D9-F386H-01-00

$7.72

13

BOLT, FLANGE

95817-08012-00

$3.98
