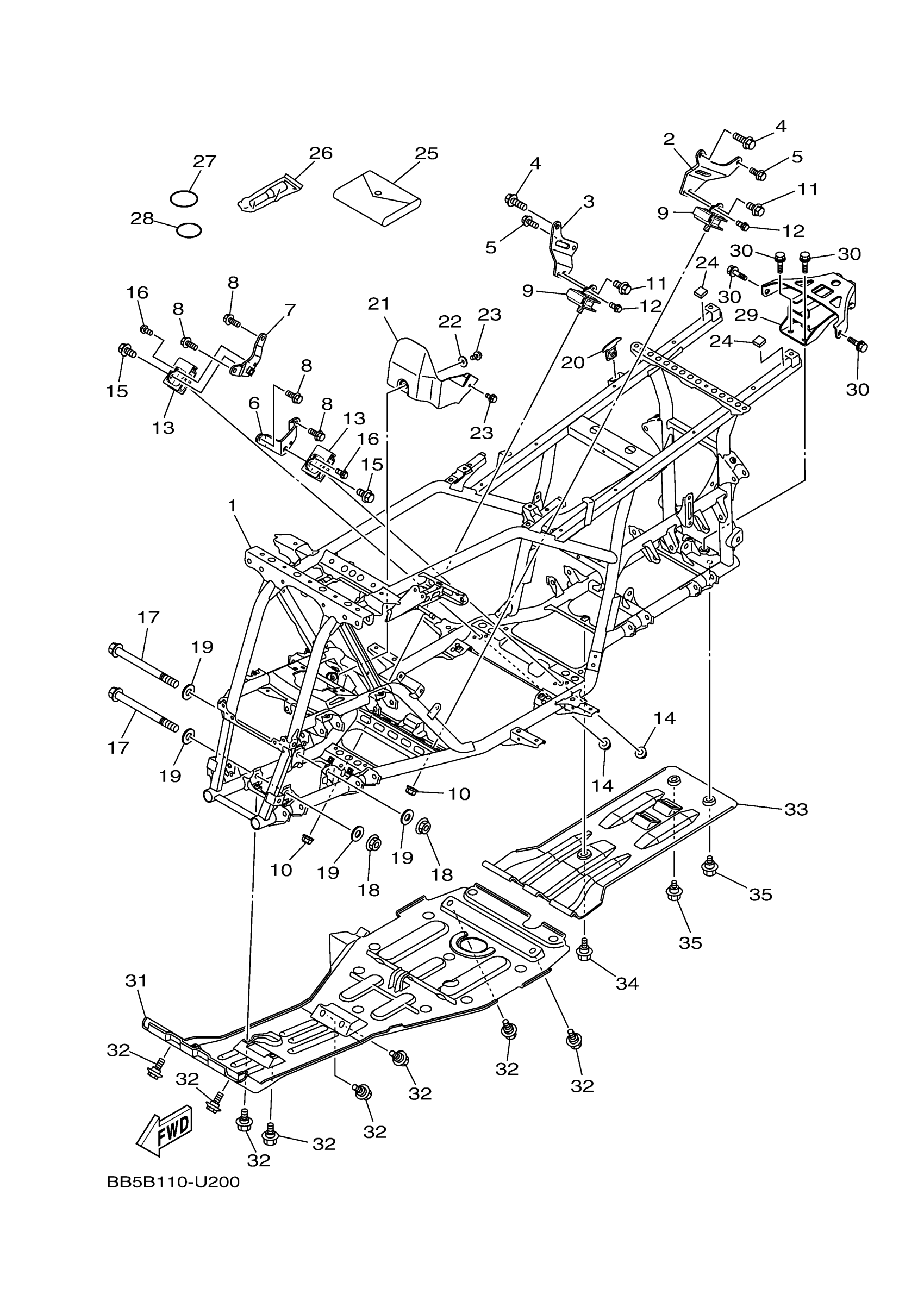

Yamaha YFM45KPLKL (KODIAK 450 EPS 4WD) BB5F 2019 FRAME Diagram
#
Description
Price
1
FRAME
BB5-F1110-02-00
Unavailable
17
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
18
NUT, S/L FLANGE
95602-10200-00
Unavailable
19
WASHER, PLATE
90201-10035-00
Unavailable
20
STAY, MUFFLER 2
BB5-F1446-00-00
Unavailable
21
PROTECTOR 1
1CT-F2825-00-00
Unavailable
22
WASHER, PLATE
90201-06078-00
Unavailable
23
BOLT, FLANGE
95817-06012-00
Unavailable
24
DAMPER
BB5-F113B-00-00
Unavailable
25
TOOL KIT
BB5-F8100-00-00
Unavailable
26
GAUGE, AIR
1NV-2811A-01-00
Unavailable
27
O-RING (4X7)
93210-92448-00
Unavailable
28
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
29
RR HITCH ASSY
2SM-F3802-00-00
Unavailable
30
BOLT, FLANGE
95812-10014-00
Unavailable
31
GUARD, ENGINE 1
5ND-F147A-03-00
Unavailable
32
BOLT
90109-06043-00
Unavailable
33
GUARD COMP.
1CT-F840K-10-00
Unavailable
34
BOLT
90109-06043-00
Unavailable
35
BOLT
90109-06202-00
Unavailable
