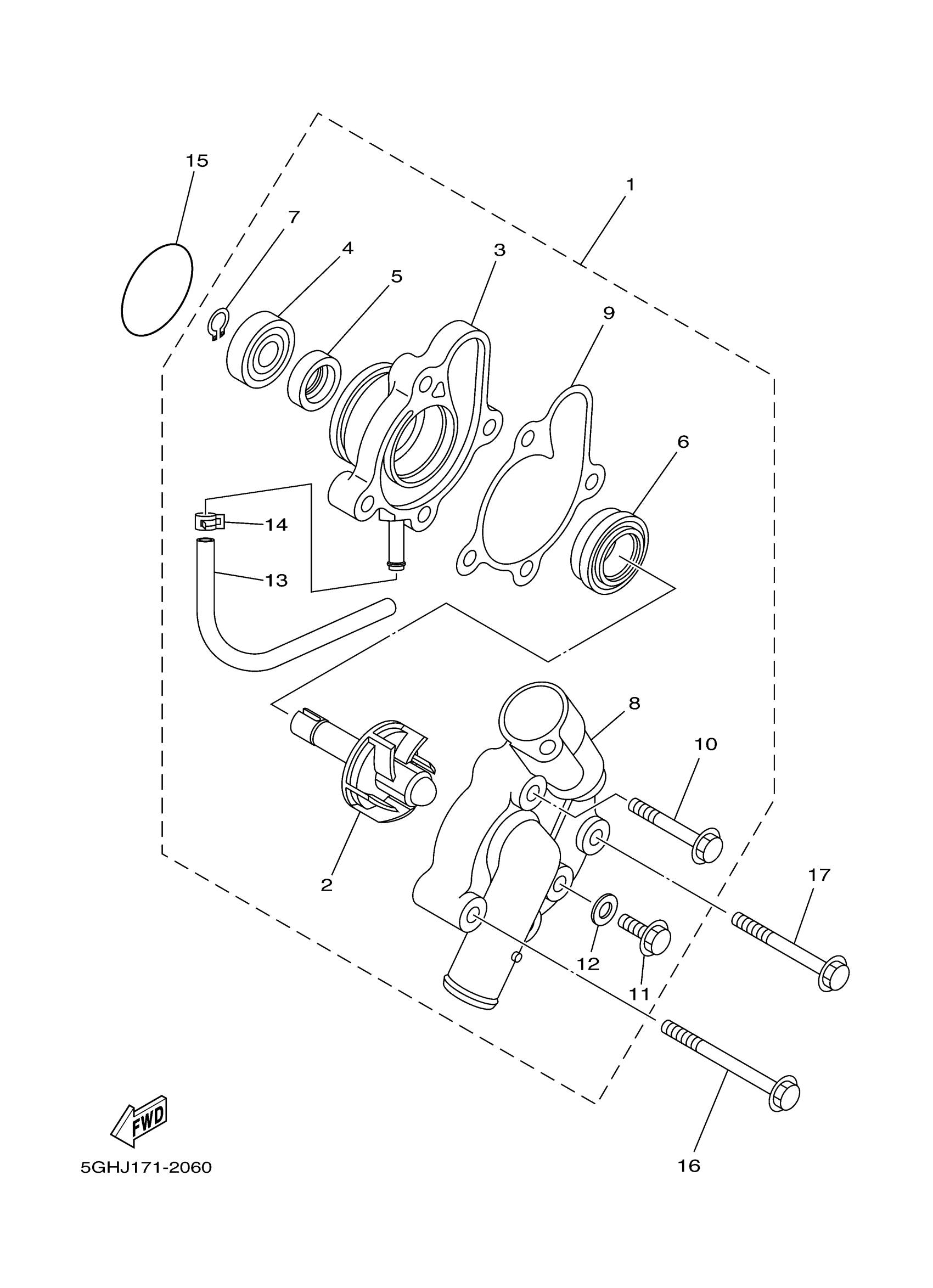

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

5GH-Y1242-01-00

$263.73

2

IMPELLER SHAFT ASSY

5CG-12450-00-00

$79.82

3

HOUSING, WATER PUMP

5GH-12421-01-00

$100.23

4

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

5

OIL SEAL (J10)

93101-10090-00

$6.17

6

SEAL, MECHANICAL

11H-12438-10-00

$50.88

7

CIRCLIP(10W)

99009-10400-00

$3.91

8

COVER, HOUSING

5GH-12422-00-00

$96.05

9

GASKET, HOUSING COVER 2

5GH-12428-00-00

$5.63

10

. BOLT, FLANGE

90105-06086-00

$3.57

11

BOLT, FLANGE

95022-06012-00

$3.00

12

GASKET 256113960000

90430-06014-00

$7.23

13

HOSE(7FK)

90446-04254-00

$6.85

14

CLIP

90467-06194-00

$1.32

15

O-RING (626)

93210-33133-00

$3.01

16

BOLT, FLANGE

95022-06060-00

$6.26

17

BOLT, FLANGE

95022-06050-00

$1.38
