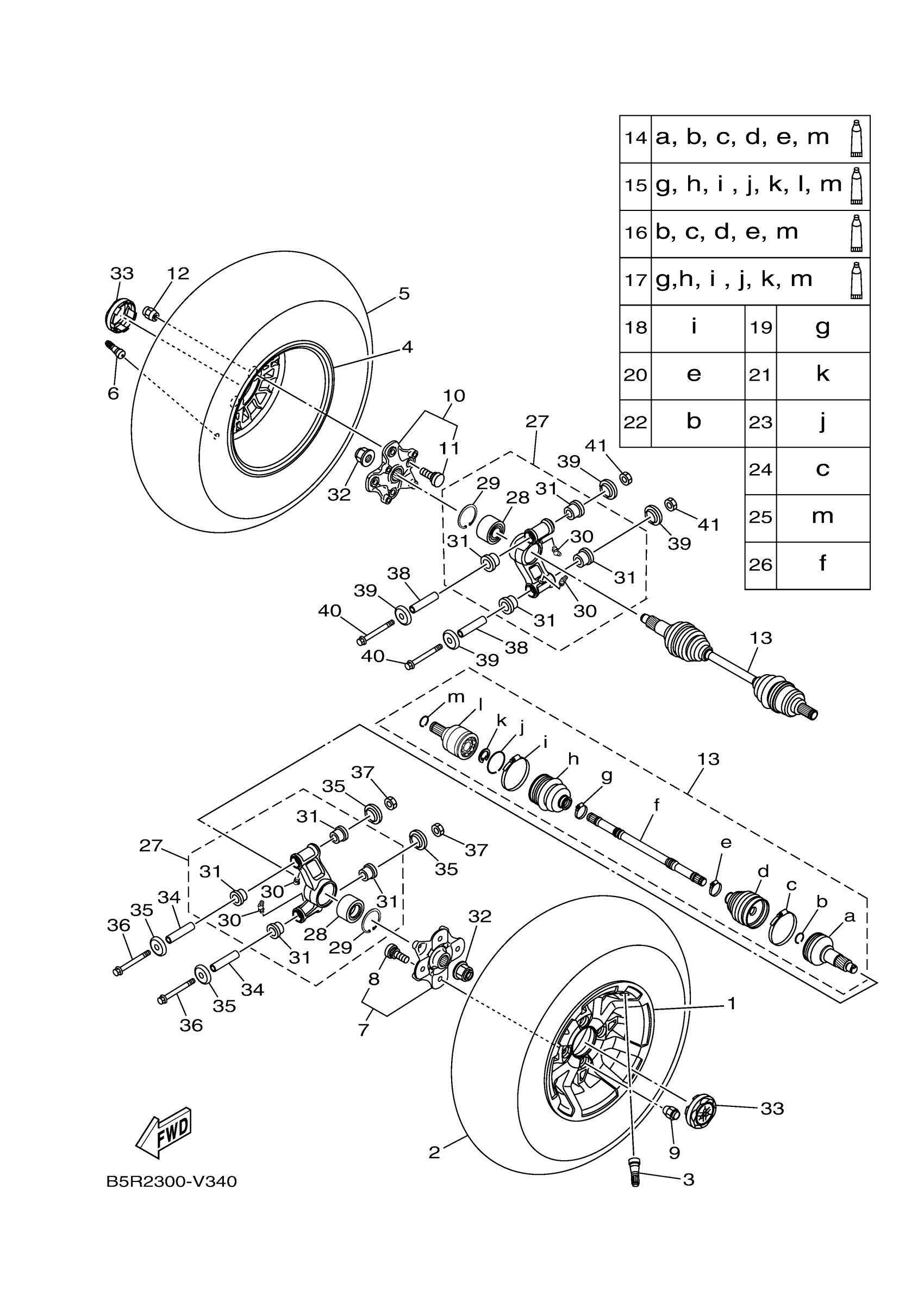

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

B32-F5338-00-00

$188.49

2

TIRE (AT25X10-12 CU906 4PR TL)

94110-12821-00

$177.99

3

VALVE, RIM

93900-00812-00

$7.49

4

CAST WHEEL, REAR

B32-F5338-00-00

$188.49

5

TIRE (AT25X10-12 CU906 4PR TL)

94110-12821-00

$177.99

6

VALVE, RIM

93900-00812-00

$7.49

7

HUB ASSY 2

B16-F510D-03-00

$51.07

8

BOLT, SERRATION

90114-10014-00

$2.74

9

NUT

90179-10032-00

$11.83

10

HUB ASSY 2

B16-F510D-03-00

$51.07

11

BOLT, SERRATION

90114-10014-00

$2.74

12

NUT

90179-10032-00

$11.83

13

REAR DRIVE SHAFT A

BB5-2531H-01-00

$209.87

14

BALL JOINT SET

28P-2510F-10-00

$416.38

15

DOUBLE OFF SET JOI

28P-2530V-10-00

$153.64

16

BOOT SET (BALL JOI

28P-2510G-10-00

$52.34

17

BOOT SET(DOUBLE OF

28P-2510H-10-00

$50.19

18

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

$12.09

19

BOOT BAND (SMALL)

3B4-2512G-00-00

$10.48

20

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

21

SNAP RING

3B4-2512J-00-00

$8.12

22

CIRCLIP

3B4-2512H-00-00

$5.12

23

CIRCLIP

3B4-25182-00-00

$5.03

24

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

25

CLIP, SPRING

3B4-2536E-00-00

$6.43

26

SHAFT

BB5-2518E-10-00

$105.55

27

REAR KNUCKLE ASSY.

BB5-F532F-00-00

$171.28

28

BEARING

93305-00602-00

$98.89

29

CIRCLIP

99009-55500-00

$7.26

30

NIPPLE, GREASE (36X)

93700-06009-00

$9.89

31

BUSH, SOLID(2NL)

90381-17067-00

$12.49

32

NUT

90179-20016-00

$11.20

33

WHEEL CAP ASSY.

1RB-F530B-00-00

$12.27

34

SPACER

5KM-23448-00-00

$15.04

35

COVER, THRUST 1

3JN-23517-00-00

$3.92

36

BOLT, FLANGE

90105-10212-00

$5.62

37

NUT, SELF-LOCKING

90185-10012-00

$2.98

38

SPACER

5KM-23448-00-00

$15.04

39

COVER, THRUST 1

3JN-23517-00-00

$3.92

40

BOLT, FLANGE

90105-10212-00

$5.62

41

NUT, SELF-LOCKING

90185-10012-00

$2.98
