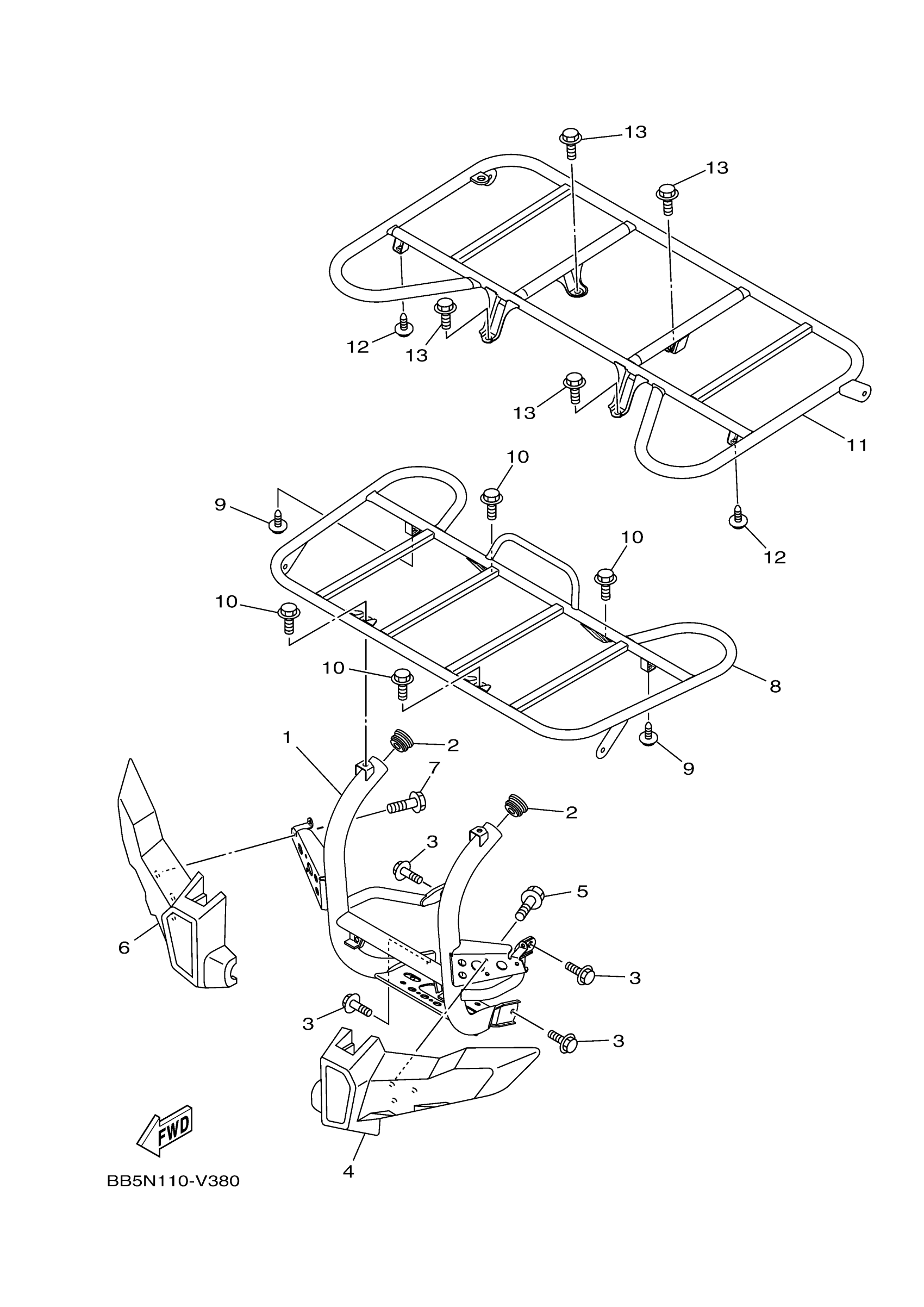

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT

B5R-F845N-10-00

$266.89

2

PLUG

90338-29800-00

$6.60

3

BOLT, FLANGE

95817-08014-00

$1.94

4

DAMPER 1

37S-F8415-00-00

$84.08

5

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.60

6

DAMPER 2

37S-F8416-00-00

$79.19

7

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.60

8

CARRIER, FRONT

BB5-F4841-30-00

$130.67

9

BOLT, WITH WASHER

90119-06157-00

$6.69

10

BOLT, FLANGE

95817-08012-00

$3.98

11

CARRIER, REAR

BB5-F4842-30-00

Unavailable

12

BOLT, WITH WASHER

90119-06157-00

$6.69

13

BOLT, FLANGE

95817-08012-00

$3.98
