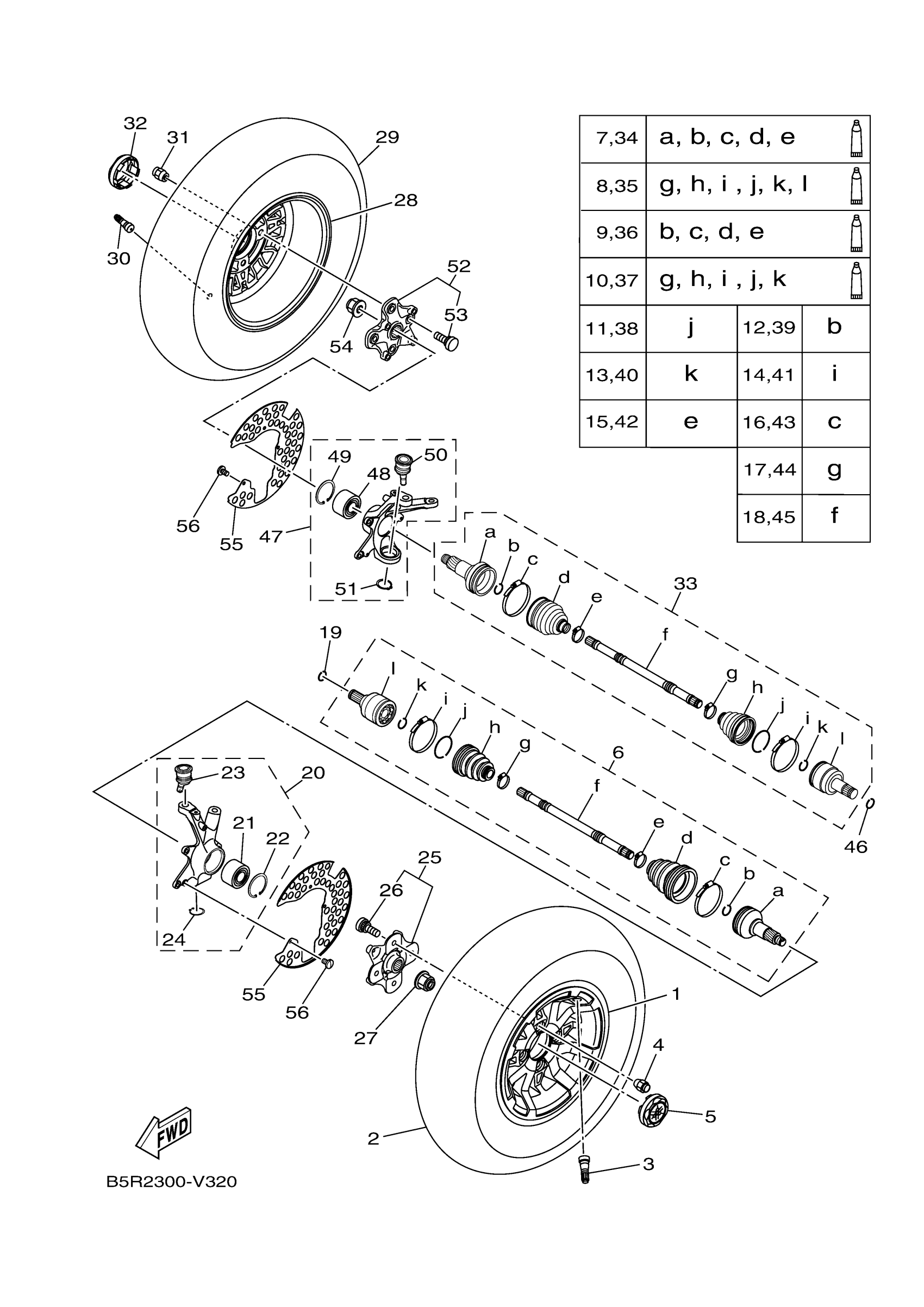

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B32-F5168-00-00

$216.28

2

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

$157.99

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT

90179-10032-00

$11.83

5

WHEEL CAP ASSY.

1RB-F530B-00-00

$12.27

6

DRIVE SHAFT ASSY

B5R-2518F-01-00

$248.98

7

BALL JOINT SET

28P-2510F-05-00

$503.28

8

DOUBLE OFF SET JOI

B5R-2510J-01-00

$189.58

9

BOOT SET (BALL JOI

28P-2510G-02-00

$53.03

10

BOOT SET(DOUBLE OFFSET JOINT)

B5R-2510H-01-00

$39.99

11

CIRCLIP

4S1-2512H-00-00

$1.71

12

CIRCLIP

3B4-2512H-00-00

$5.12

13

SNAP RING

2HR-2512J-00-00

$5.71

14

BOOT BAND

4S1-2511G-00-00

$8.54

15

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

16

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

17

BOOT BAND (SMALL)

B5R-2512G-00-00

$3.86

18

DRUM, BRAKE

B5R-2511E-00-00

$91.20

19

CIRCLIP(2HR)

93450-22119-00

$5.10

20

STEERING KNUCKLE A

BB5-F3501-00-00

$160.85

21

BEARING

93305-00602-00

$98.89

22

CIRCLIP

99009-55500-00

$7.26

23

BALL JOINT 2

3B4-23579-01-00

$72.96

24

CIRCLIP(4A6)

99009-30400-00

$6.55

25

HUB ASSY 2

B16-F510D-03-00

$51.07

26

BOLT, SERRATION

90114-10014-00

$2.74

27

NUT

90179-20016-00

$11.20

28

CAST WHEEL, FRONT

B32-F5168-00-00

$216.28

29

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

$157.99

30

VALVE, RIM

93900-00812-00

$7.49

31

NUT

90179-10032-00

$11.83

32

WHEEL CAP ASSY.

1RB-F530B-00-00

$12.27

33

DRIVE SHAFT ASSY

B5R-2518G-01-00

$227.85

34

BALL JOINT SET

28P-2510F-05-00

$503.28

35

DOUBLE OFF SET JOI

B5R-2510J-01-00

$189.58

36

BOOT SET (BALL JOI

28P-2510G-02-00

$53.03

37

BOOT SET(DOUBLE OFFSET JOINT)

B5R-2510H-01-00

$39.99

38

CIRCLIP

4S1-2512H-00-00

$1.71

39

CIRCLIP

3B4-2512H-00-00

$5.12

40

SNAP RING

2HR-2512J-00-00

$5.71

41

BOOT BAND

4S1-2511G-00-00

$8.54

42

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

43

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

44

BOOT BAND (SMALL)

B5R-2512G-00-00

$3.86

45

SHAFT

B5R-2518E-00-00

$91.20

46

CIRCLIP(2HR)

93450-22119-00

$5.10

47

STEERING KNUCKLE A

BB5-F3502-00-00

$193.69

48

BEARING

93305-00602-00

$98.89

49

CIRCLIP

99009-55500-00

$7.26

50

BALL JOINT 2

3B4-23579-01-00

$72.96

51

CIRCLIP(4A6)

99009-30400-00

$6.55

52

HUB ASSY 2

B16-F510D-03-00

$51.07

53

BOLT, SERRATION

90114-10014-00

$2.74

54

NUT

90179-20016-00

$11.20

55

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$12.25

56

SCREW, BIND(1JK)

98980-06010-00

$5.20
