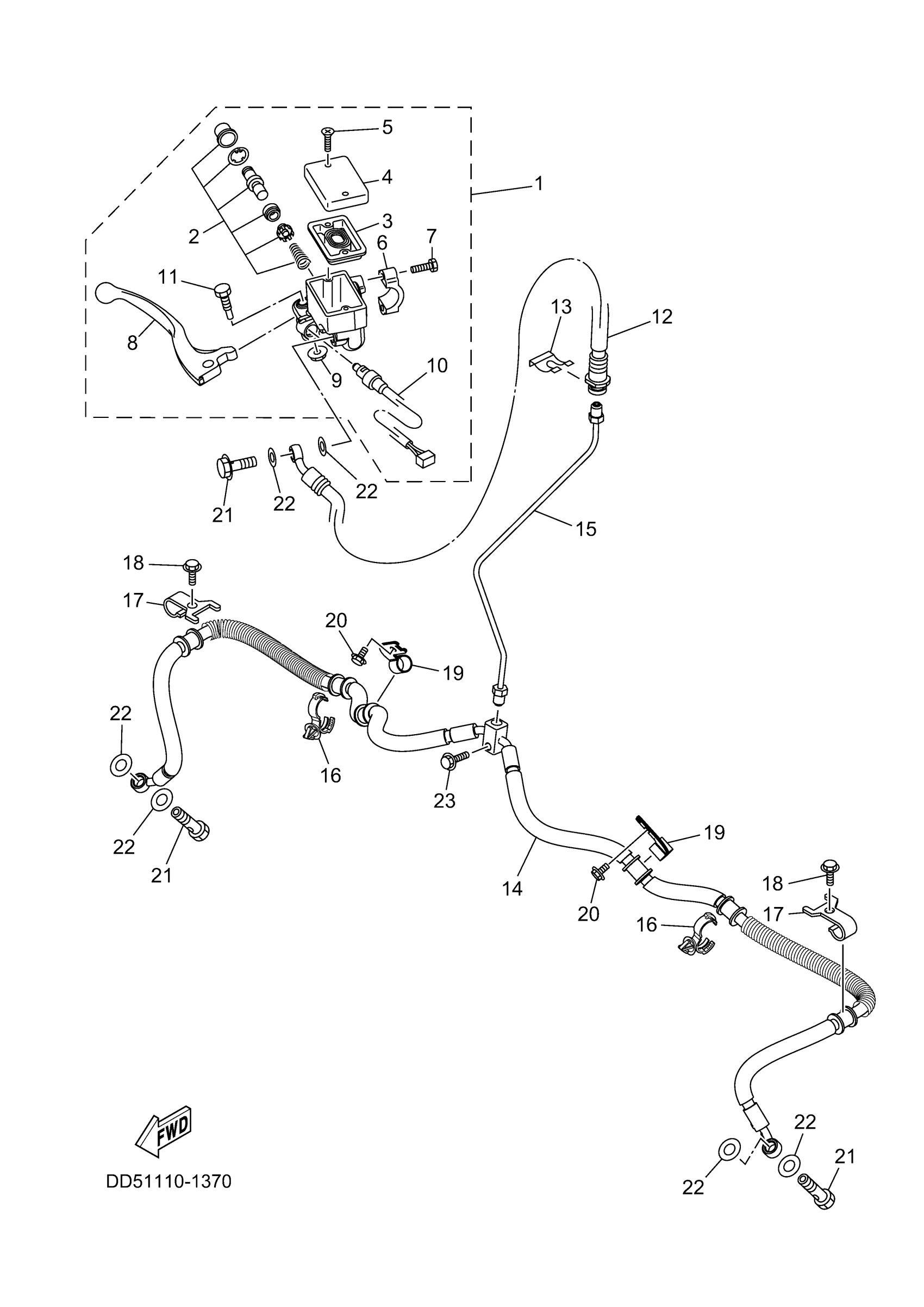

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5KM-2583T-10-00

Unavailable

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$57.99

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

5LP-25852-02-00

$22.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

5GM-25867-10-00

$23.99

7

BOLT, FITTING

5MV-25833-00-00

$6.99

8

LEVER 2

5KM-83922-00-00

$37.99

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$64.99

11

BOLT, LEVER

1FK-2589F-10-00

$8.99

12

HOSE, BRAKE 1

BB5-F5872-01-00

$21.99

13

CIRCLIP

2GU-25866-00-00

$9.99

14

HOSE, BRAKE 2

DD5-F5873-00-00

Unavailable

15

PIPE, BRAKE

DD5-F5871-00-00

Unavailable

16

CLAMP

90464-18002-00

Unavailable

17

HOLDER, BRAKE HOSE

5ND-F5875-01-00

Unavailable

18

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable

19

HOLDER, BRAKE HOSE

2PG-25876-00-00

Unavailable

20

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable

21

BOLT, UNION

90401-10015-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

BLOT, FLANGE DEEP RECESS

95D32-06025-00

Unavailable
