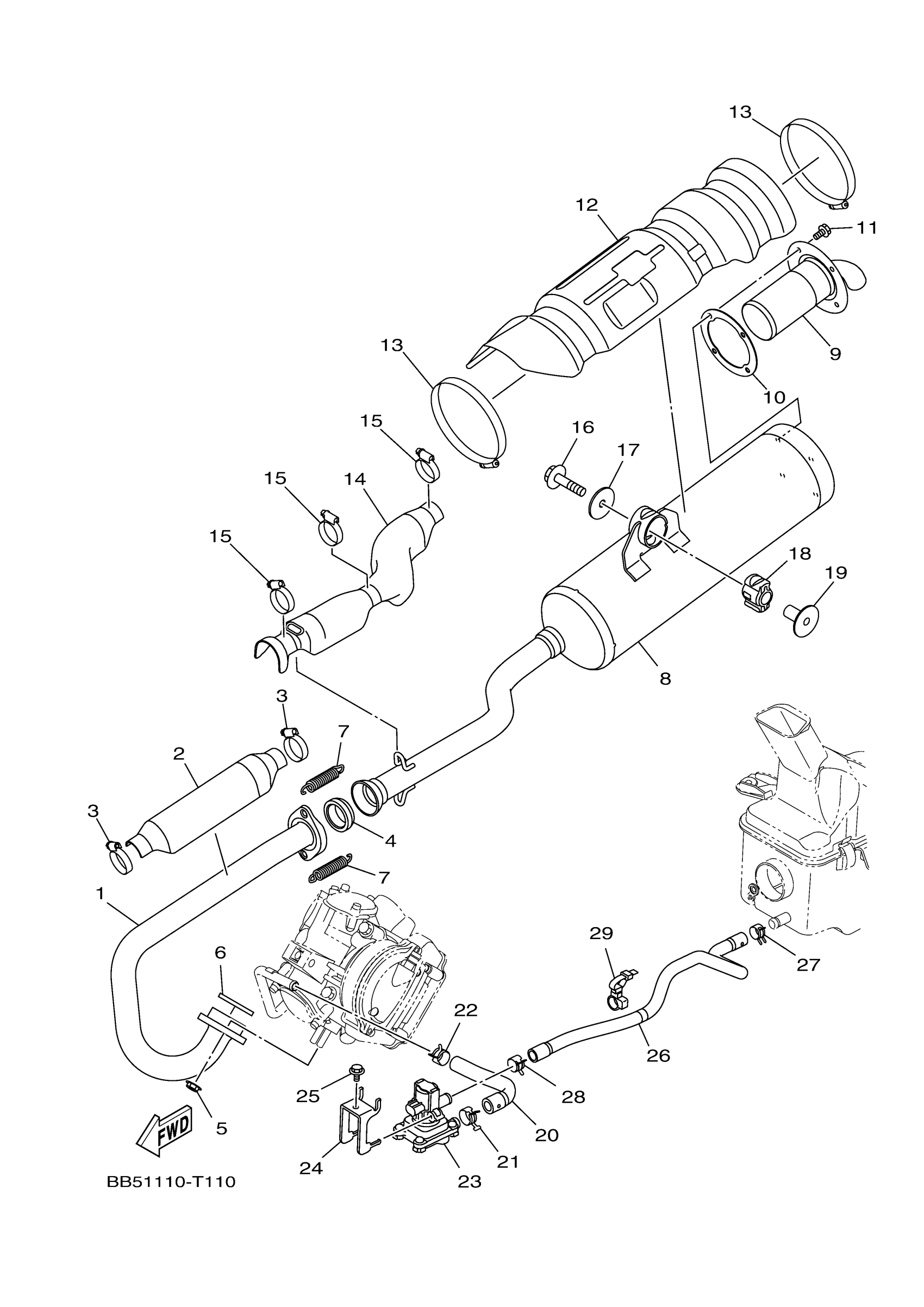

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BB5-E4611-01-00

$64.45

2

PROTECTOR, EXHAUST

BB5-E4628-00-00

$20.42

3

HOSE CLAMP ASSY

90450-38003-00

$14.91

4

GASKET, MUFFLER

BB5-E4714-00-00

Unavailable

5

NUT,FLANGE(J10)

95702-08500-00

$0.80

6

GASKET, EXHAUST PIPE

3GD-14613-00-00

$12.38

7

SPRING, TENSION

90506-26012-00

$12.05

8

MUFFLER 1

DD5-E4711-00-00

Unavailable

9

SPARK ARRESTER ASS

2BG-E4780-00-00

$60.18

10

GASKET, SILENCER

2BG-E4755-00-00

$18.95

11

BOLT, FLANGE

95022-06012-00

$3.00

12

PROTECTOR, MUFFLER

BB5-E4718-00-00

$28.63

13

HOSE CLAMP ASSY

90450-99805-00

$37.45

14

PROTECTOR, MUFFLER

BB5-E4728-00-00

$31.43

15

HOSE CLAMP ASSY

90450-38003-00

$14.91

16

BOLT, FLANGE(8AB)

95817-10050-00

$5.03

17

WASHER PLATE 256234440000

90201-10149-00

$6.68

18

DAMPER, MUFFLER

BB5-14737-00-00

$21.05

19

COLLAR

90387-10113-00

$5.12

20

HOSE, BEND 1

BB5-14881-00-00

$36.08

21

CLIP (23E)

90467-20085-00

$8.31

22

CLIP

90467-18179-00

$2.15

23

AIR INDUCTION SYSTEM ASSY

5VK-14803-00-00

$303.78

24

BRACKET

2MB-F1159-00-00

$1.69

25

BOLT, FLANGE

95812-06010-00

$2.75

26

HOSE, BEND 2

BB5-E4882-00-00

$4.89

27

CLIP

90467-16009-00

$5.25

28

CLIP(3TB)

90467-17128-00

$6.68

29

CLAMP

90464-25006-00

$3.32
