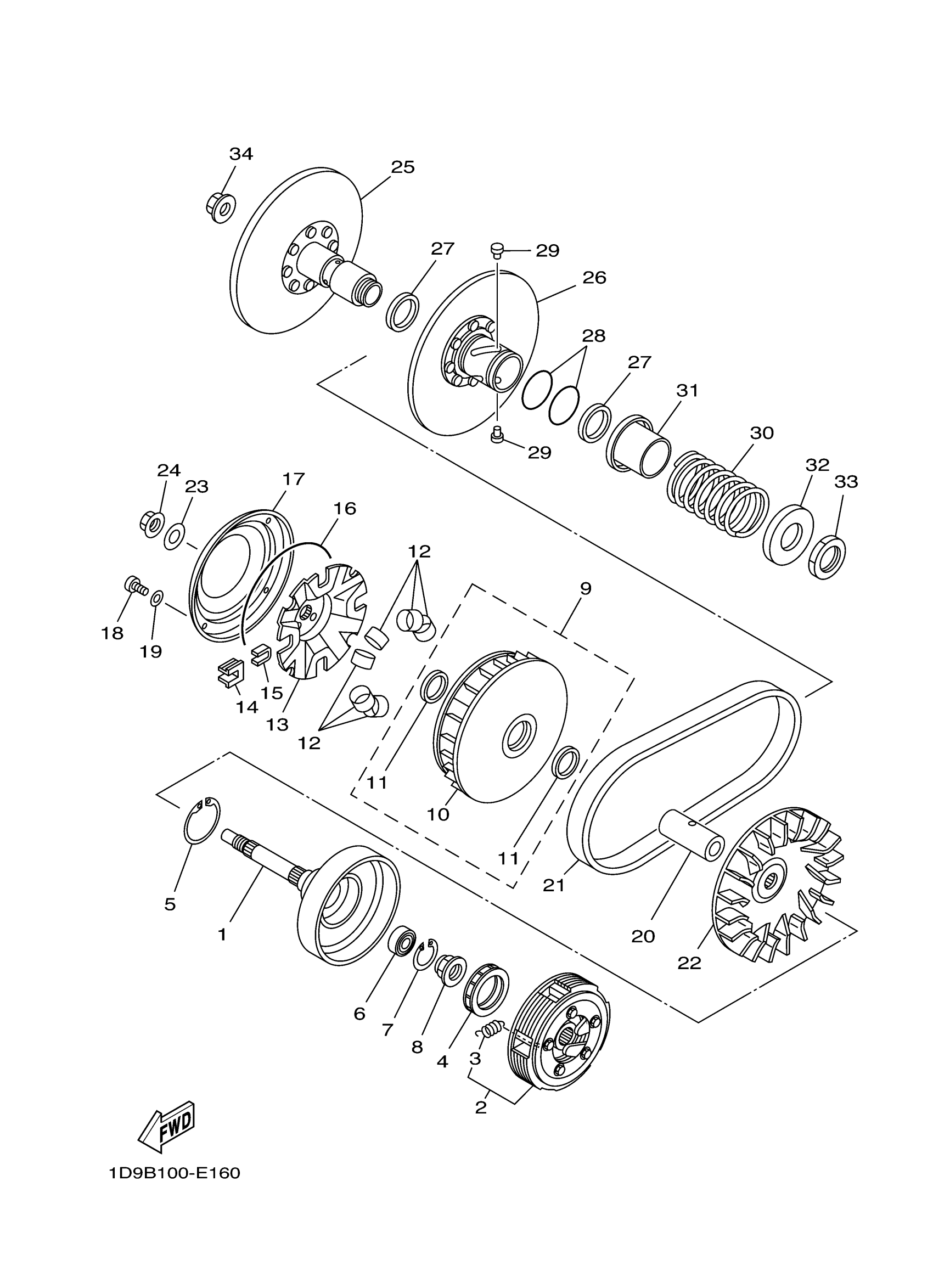

Yamaha YFM45KPHTF (KODIAK 450 EPS HUNTING) DD55 2026 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

5GH-16611-10-00

$346.46

2

CLUTCH CARRIER ASSY

5GH-16620-01-00

$267.30

3

SPRING, CLUTCH WEIGHT 1

5GH-16626-00-00

$11.71

4

BEARING, ONE WAY

5GH-16664-00-00

$128.29

5

CIRCLIP

93410-46079-00

$5.42

6

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$31.48

7

CIRCLIP (3G2)

93450-24062-00

$3.25

8

NUT

90179-22005-00

$23.08

9

PRIMARY SLIDING SHEAVE COMP.

5GH-17606-01-00

$201.95

10

PRIMARY SLIDING SHEAVE COMP.

5GH-17620-01-00

$301.74

11

OIL SEAL

93101-31167-00

$15.43

12

WEIGHT

5KM-17632-00-00

$13.06

13

CAM

5GH-17623-00-00

$65.73

14

SLIDER

4WV-17653-00-00

$6.72

15

SPACER 1

4WV-17654-01-00

$6.00

16

O-RING

93211-52001-00

$24.94

17

STOPPER

5GH-17639-00-00

$25.08

18

SCREW, PAN HEAD

90157-04006-00

$4.15

19

WASHER, PLATE(4HC)

90201-047R9-00

$2.38

20

COLLAR

90387-1914K-00

$116.23

21

V-BELT

5GH-17641-11-00

$131.46

22

SHEAVE, PRIMARY FIXED

5UH-17611-00-00

$136.21

23

WASHER, PLATE

90201-190T7-00

$7.51

24

NUT

90179-16005-00

$11.06

25

SECONDARY FIXED SHEAVE COMP.

5GH-17660-10-00

$371.91

26

SECONDARY SLIDING SHEAVE

BB5-17670-00-00

$206.29

27

OIL SEAL

93104-41119-00

$14.18

28

O-RING (10L)

93210-44545-00

$11.47

29

PIN, GUIDE

4CW-17664-00-00

$6.72

30

SPRING, COMPRESSION

90501-626L9-00

$54.54

31

SEAT, SECONDARY SPRING

4WV-17684-00-00

$47.77

32

SEAT, SPRING

4WV-17644-00-00

$25.93

33

NUT (5G3)

90170-36279-00

$13.51

34

NUT

90179-16005-00

$11.06
