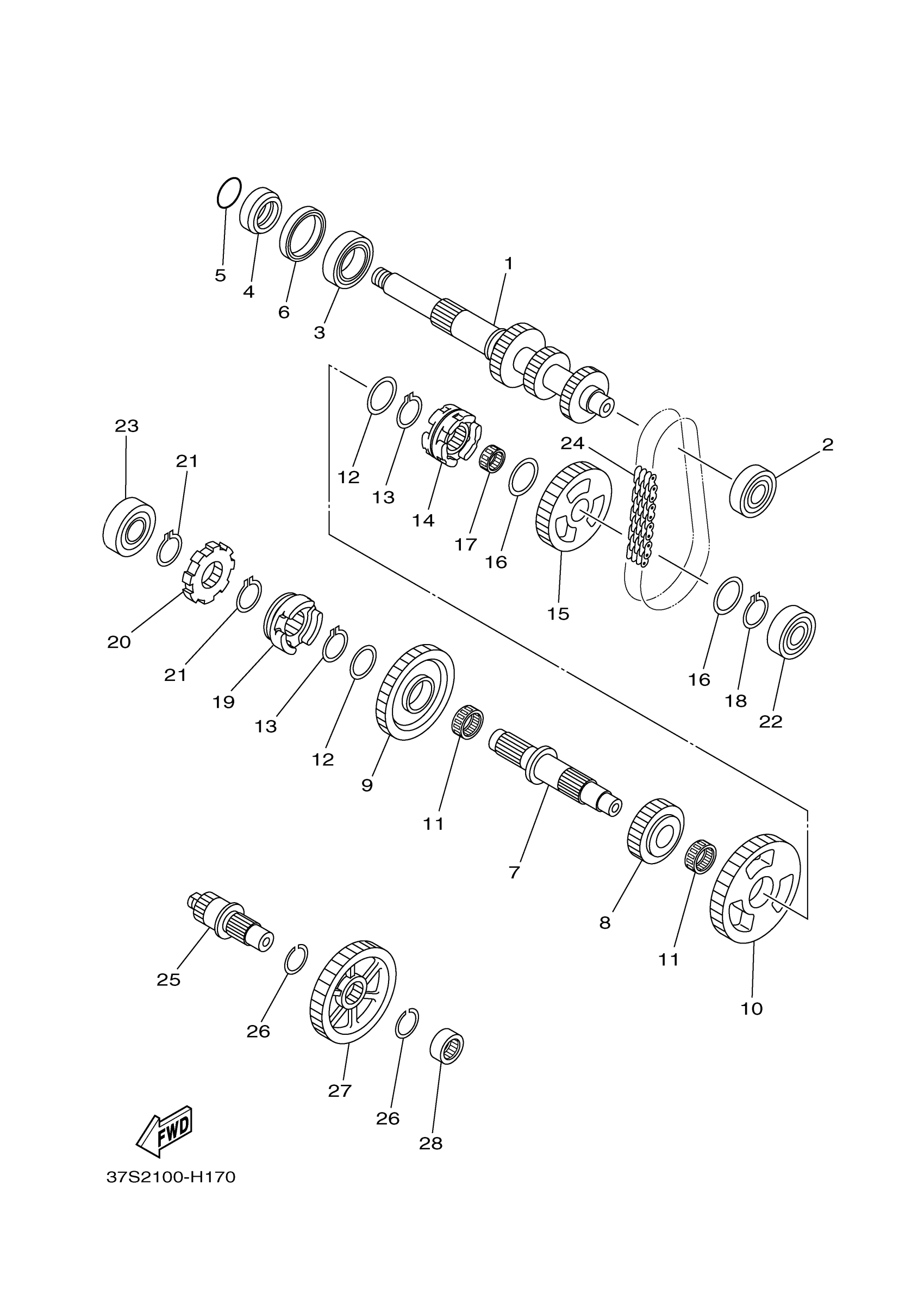

Yamaha YFM45KPHSF (KODIAK 450 EPS HUNTING) D28E 2025 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5GH-17681-11-00

$308.20

2

BEARING (7K2)

93306-00423-00

$29.62

3

BEARING (5X5)

93306-20627-00

$63.41

4

COLLAR

90387-26001-00

$35.24

5

O-RING

93210-26001-00

$4.65

6

OIL SEAL

93102-42004-00

$24.80

7

DRIVE AXLE ASSY

5GH-17402-01-00

$122.64

8

GEAR, MIDDLE DRIVE(24T)

5GH-17582-00-00

$107.15

9

GEAR, HIGH WHEEL(38T)

5GH-17223-00-00

$149.77

10

GEAR, LOW WHEEL(45T)

5GH-17233-00-00

Unavailable

11

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$27.63

12

WASHER, PLATE(8BB)

90201-250R9-00

$5.38

13

CIRCLIP (4L0)

93440-25084-00

$3.81

14

CLUTCH, DOG

1D9-17285-00-00

Unavailable

15

SPROCKET, DRIVEN

5GH-17453-10-00

Unavailable

16

WASHER PLATE 168171160000

90201-20278-00

Unavailable

17

. BEARING

93310-420F2-00

$23.56

18

CIRCLIP (525)

93410-20038-00

Unavailable

19

HOLDER

1D9-17286-00-00

Unavailable

20

STOPPER

5GH-17473-00-00

Unavailable

21

CIRCLIP (4L0)

93440-25084-00

$3.81

22

BEARING

93306-30212-00

Unavailable

23

BEARING(3LD)

93306-20464-00

Unavailable

24

CHAIN

94591-54038-00

Unavailable

25

SHAFT

5ND-17523-00-00

Unavailable

26

CIRCLIP (4L0)

93440-25084-00

$3.81

27

GEAR, MIDDLE DRIVEN(39T)

5GH-17583-00-00

Unavailable

28

BEARING

93311-42077-00

Unavailable
