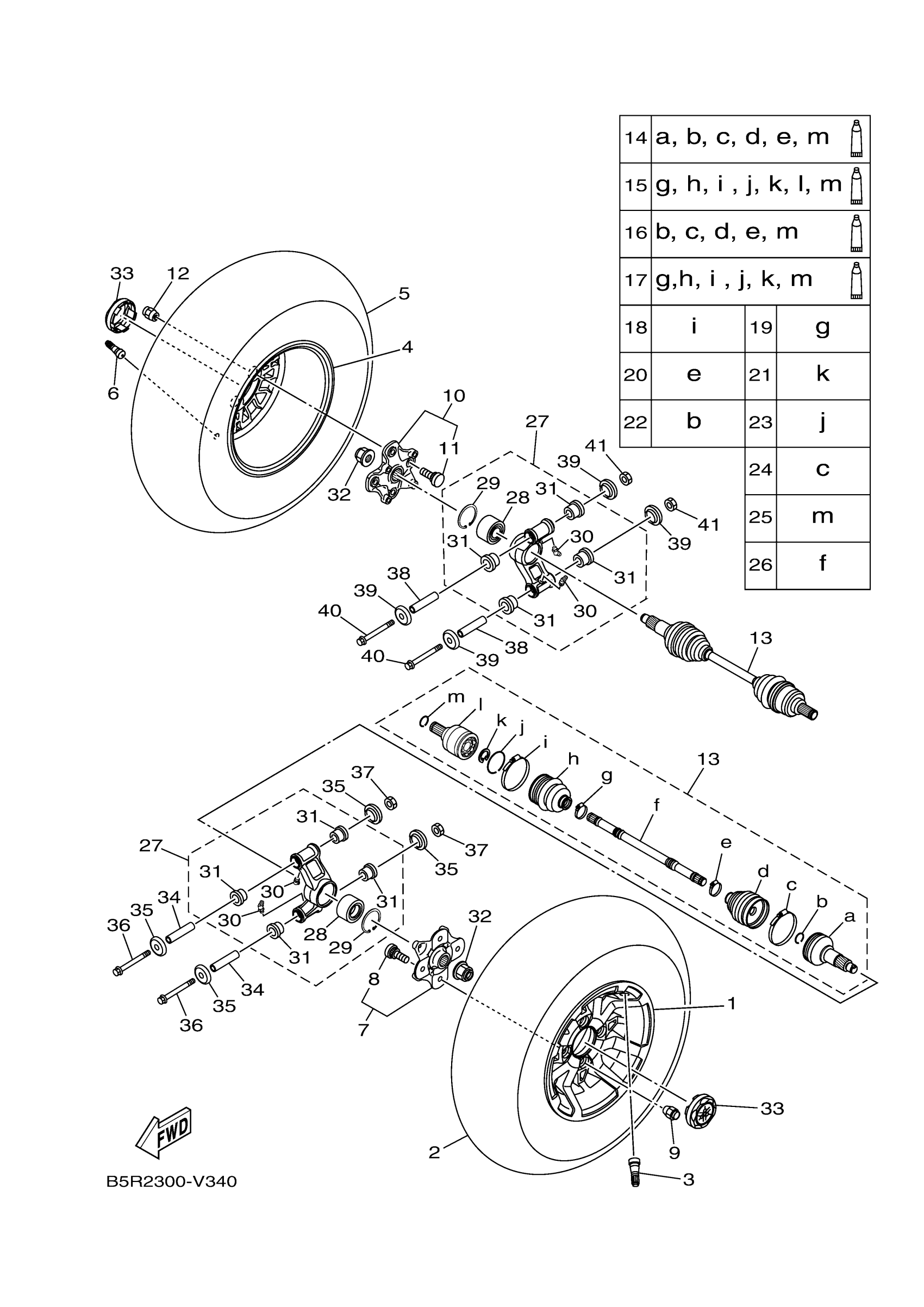

Yamaha YFM45KPHSF (KODIAK 450 EPS HUNTING) D28E 2025 REAR WHEEL Diagram
#
2
TIRE (AT25X10-12 CU906 4PR TL)
94110-12821-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
5
TIRE (AT25X10-12 CU906 4PR TL)
94110-12821-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
16
BOOT SET (BALL JOI
28P-2510G-10-00
Unavailable
17
BOOT SET(DOUBLE OF
28P-2510H-10-00
Unavailable
18
BOOT BAND(DOUBLE OFFSET JOINT)
3B4-2511H-00-00
Unavailable
19
BOOT BAND (SMALL)
3B4-2512G-00-00
Unavailable
20
BOOT BAND (SMALL)
28P-2512G-00-00
Unavailable
21
SNAP RING
3B4-2512J-00-00
Unavailable
22
CIRCLIP
3B4-2512H-00-00
Unavailable
23
CIRCLIP
3B4-25182-00-00
Unavailable
24
BOOT BAND(DOUBLE OFFSET JOINT)
28P-2511H-00-00
Unavailable
25
CLIP, SPRING
3B4-2536E-00-00
Unavailable
26
SHAFT
BB5-2518E-10-00
Unavailable
27
REAR KNUCKLE ASSY.
BB5-F532F-00-00
Unavailable
28
BEARING
93305-00602-00
Unavailable
29
CIRCLIP
99009-55500-00
Unavailable
30
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
31
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
32
NUT
90179-20016-00
Unavailable
33
WHEEL CAP ASSY.
1RB-F530B-00-00
Unavailable
34
SPACER
5KM-23448-00-00
Unavailable
35
COVER, THRUST 1
3JN-23517-00-00
Unavailable
36
BOLT, FLANGE
90105-10212-00
Unavailable
37
NUT, SELF-LOCKING
90185-10012-00
Unavailable
38
SPACER
5KM-23448-00-00
Unavailable
39
COVER, THRUST 1
3JN-23517-00-00
Unavailable
40
BOLT, FLANGE
90105-10212-00
Unavailable
41
NUT, SELF-LOCKING
90185-10012-00
Unavailable
