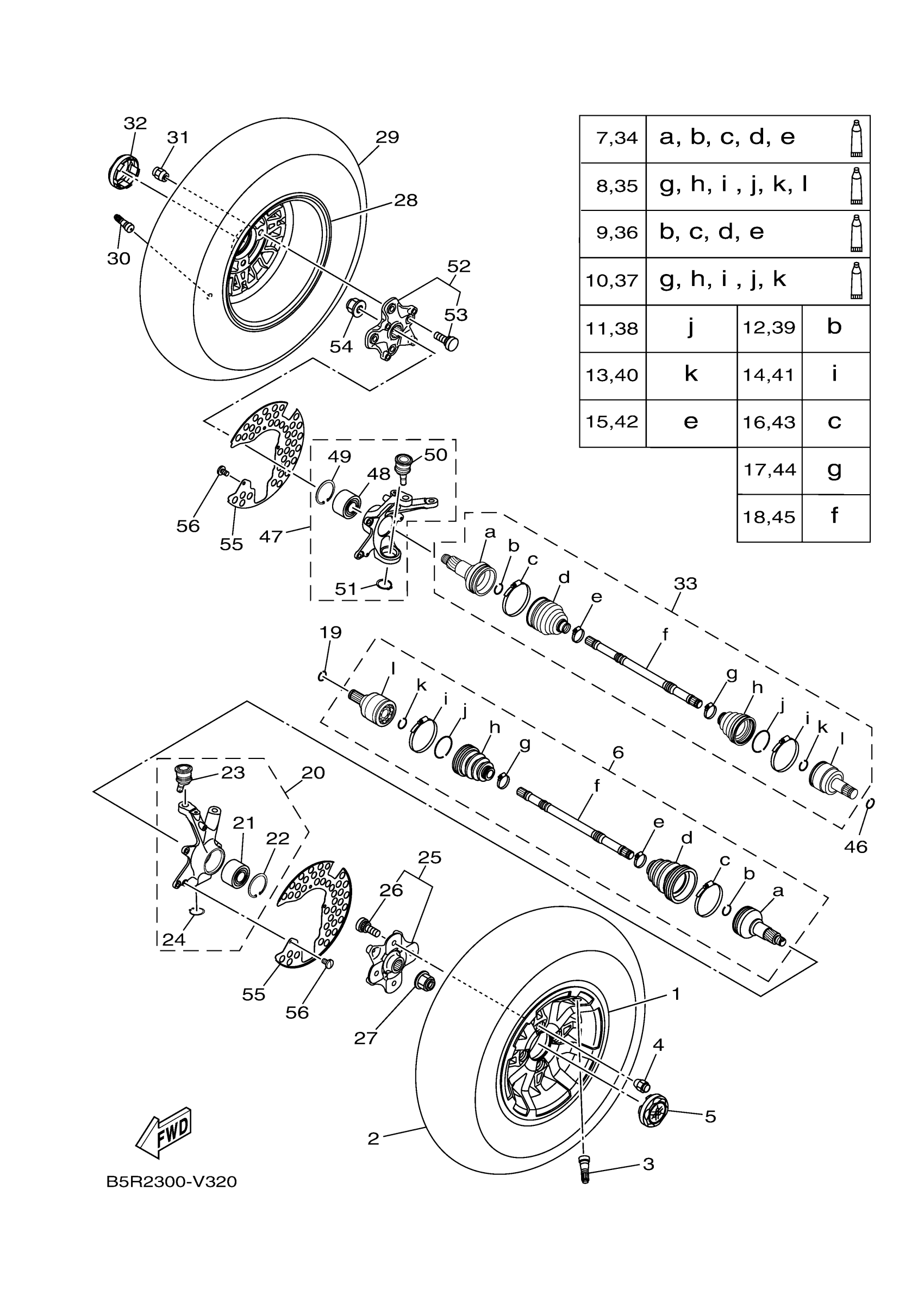

Yamaha YFM45KPHRF (KODIAK 450 EPS HUNTING) D286 2024 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B32-F5168-00-00

$221.99

2

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10032-00

$13.49

5

WHEEL CAP ASSY.

1RB-F530B-00-00

$14.49

6

DRIVE SHAFT ASSY

B5R-2518F-01-00

$400.99

7

BALL JOINT SET

28P-2510F-05-00

$506.99

8

DOUBLE OFF SET JOI

B5R-2510J-01-00

$191.99

9

BOOT SET (BALL JOI

28P-2510G-02-00

$59.99

10

BOOT SET(DOUBLE OFFSET JOINT)

B5R-2510H-01-00

$44.99

11

CIRCLIP

4S1-2512H-00-00

Unavailable

12

CIRCLIP

3B4-2512H-00-00

$6.99

13

SNAP RING

2HR-2512J-00-00

$6.99

14

BOOT BAND

4S1-2511G-00-00

Unavailable

15

BOOT BAND (SMALL)

28P-2512G-00-00

$16.49

16

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

17

BOOT BAND (SMALL)

B5R-2512G-00-00

Unavailable

18

DRUM, BRAKE

B5R-2511E-00-00

Unavailable

19

CIRCLIP(2HR)

93450-22119-00

Unavailable

20

STEERING KNUCKLE A

BB5-F3501-00-00

Unavailable

21

BEARING

93305-00602-00

Unavailable

22

CIRCLIP

99009-55500-00

Unavailable

23

BALL JOINT 2

3B4-23579-01-00

Unavailable

24

CIRCLIP(4A6)

99009-30400-00

Unavailable

25

HUB ASSY 2

B16-F510D-03-00

Unavailable

26

BOLT, SERRATION

90114-10014-00

Unavailable

27

NUT

90179-20016-00

Unavailable

28

CAST WHEEL, FRONT

B32-F5168-00-00

$221.99

29

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

Unavailable

30

VALVE, RIM

93900-00812-00

Unavailable

31

NUT

90179-10032-00

$13.49

32

WHEEL CAP ASSY.

1RB-F530B-00-00

$14.49

33

DRIVE SHAFT ASSY

B5R-2518G-01-00

Unavailable

34

BALL JOINT SET

28P-2510F-05-00

$506.99

35

DOUBLE OFF SET JOI

B5R-2510J-01-00

$191.99

36

BOOT SET (BALL JOI

28P-2510G-02-00

$59.99

37

BOOT SET(DOUBLE OFFSET JOINT)

B5R-2510H-01-00

$44.99

38

CIRCLIP

4S1-2512H-00-00

Unavailable

39

CIRCLIP

3B4-2512H-00-00

$6.99

40

SNAP RING

2HR-2512J-00-00

$6.99

41

BOOT BAND

4S1-2511G-00-00

Unavailable

42

BOOT BAND (SMALL)

28P-2512G-00-00

$16.49

43

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

44

BOOT BAND (SMALL)

B5R-2512G-00-00

Unavailable

45

SHAFT

B5R-2518E-00-00

Unavailable

46

CIRCLIP(2HR)

93450-22119-00

Unavailable

47

STEERING KNUCKLE A

BB5-F3502-00-00

Unavailable

48

BEARING

93305-00602-00

Unavailable

49

CIRCLIP

99009-55500-00

Unavailable

50

BALL JOINT 2

3B4-23579-01-00

Unavailable

51

CIRCLIP(4A6)

99009-30400-00

Unavailable

52

HUB ASSY 2

B16-F510D-03-00

Unavailable

53

BOLT, SERRATION

90114-10014-00

Unavailable

54

NUT

90179-20016-00

Unavailable

55

RING, WHEEL 1 (LEF

BB5-F514A-00-00

Unavailable

56

SCREW, BIND(1JK)

98980-06010-00

Unavailable
