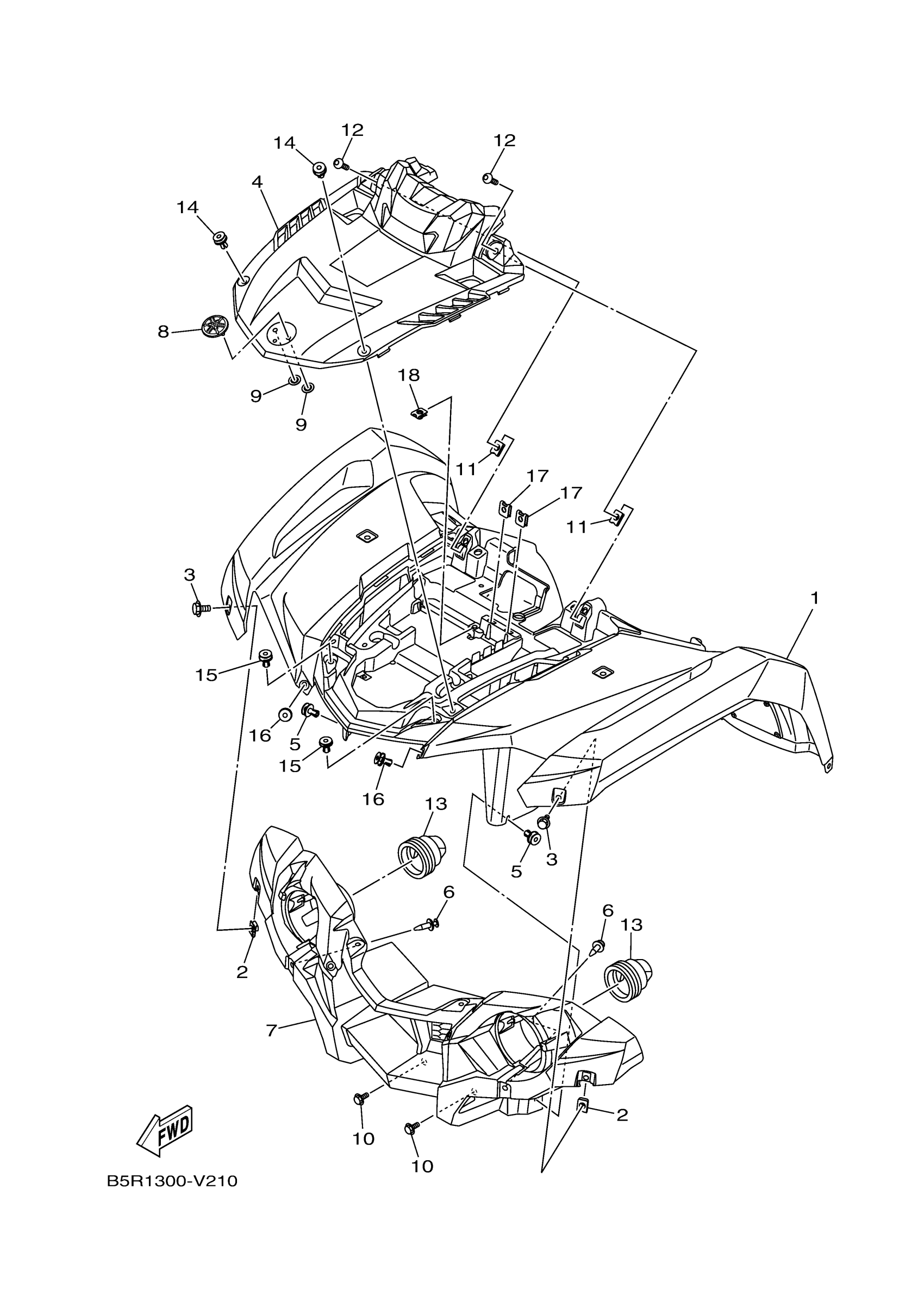

Yamaha YFM45KPHNH (KODIAK 450 EPS HUNTING) BEYG 2022 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

BB5-F1500-A2-00

$147.24

2

NUT, SPRING(4ES)

90183-06069-00

$5.69

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

FRONT PANEL COMP.

BB5-F330D-10-00

$153.70

5

RIVET

90269-07010-00

$3.49

6

RIVET

90269-06800-00

$1.35

7

GRILLE, FRONT

BB5-F8309-00-00

$39.26

8

TUNING FORK MARK

1XD-F175B-01-00

$12.28

9

NUT, SPRING

90183-06071-00

$0.50

10

BOLT

90109-06043-00

Unavailable

11

NUT, SPRING(4ES)

90183-06069-00

$5.69

12

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$4.60

13

CAP

5UH-F8349-00-00

$11.65

14

RIVET

90269-07010-00

$3.49

15

RIVET

90269-07010-00

$3.49

16

RIVET

90269-07010-00

$3.49

17

NUT, SPRING

90183-05008-00

Unavailable

18

NUT, SPRING(4ES)

90183-06069-00

$5.69
