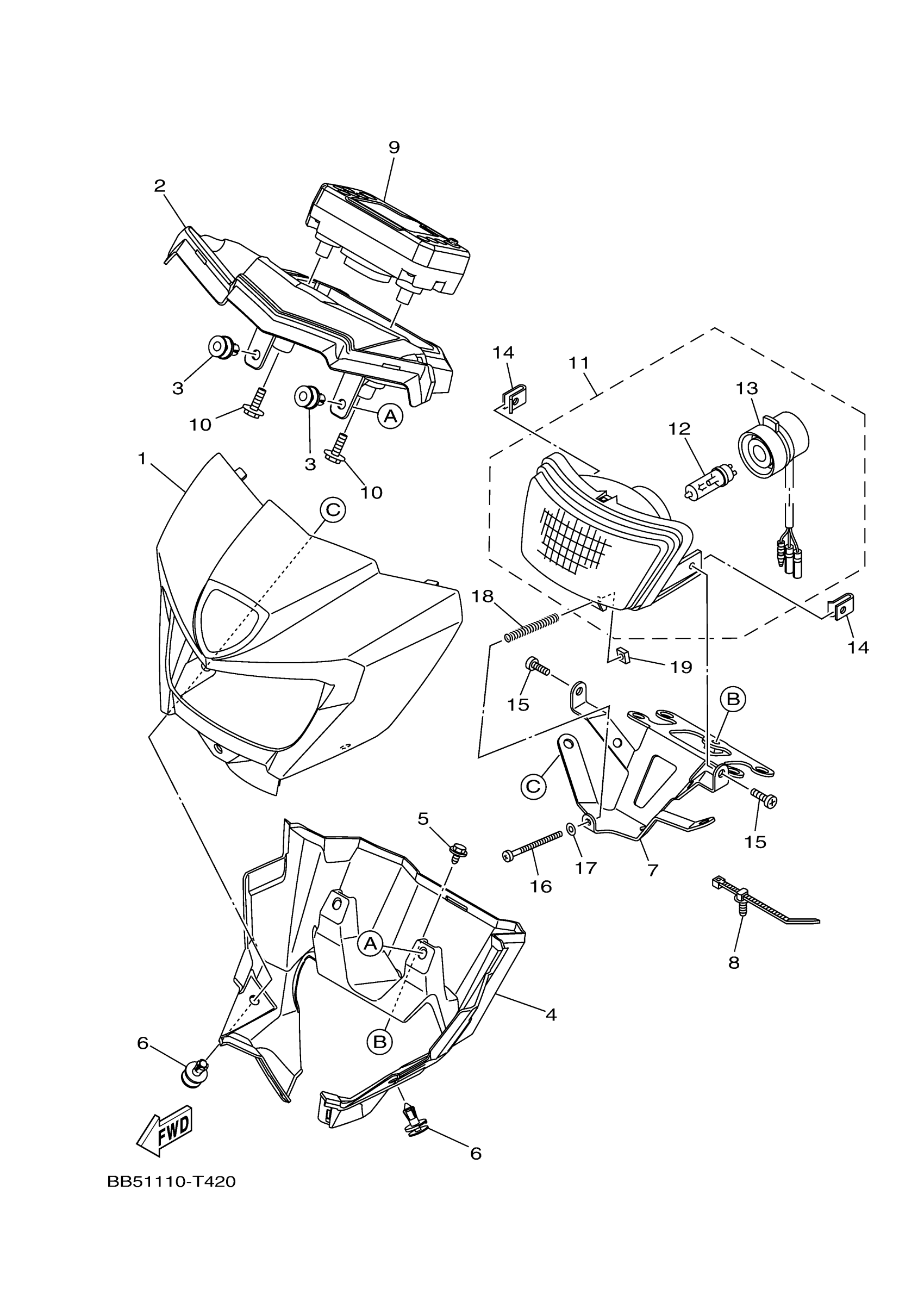

Yamaha YFM45KPHMH (KODIAK 450 EPS HUNTER) BEY7 2021 HEADLIGHT 2 Diagram

#

Description
Price

1

COVER COMP.

BB5-H252L-00-00

$165.99

2

COVER, METER

BB5-H3559-00-00

$8.49

3

RIVET

90269-07010-00

$4.35

4

COVER, HANDLE UPPE

BB5-F6143-00-00

Unavailable

5

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

6

RIVET

90269-07010-00

$4.35

7

STAY

2SM-F6292-00-00

Unavailable

8

CLAMP

1NS-F1338-00-00

$3.33

9

METER ASSY

B5R-83500-00-00

$341.99

10

SCREW, TAPPING(3VP)

90163-05006-00

$3.23

11

HEADLIGHT ASSY

2PA-84300-00-00

$91.99

12

BULB, HEADLIGHT

5VM-84314-00-00

$42.99

13

SOCKET CORD ASSY 1

2PA-84340-00-00

Unavailable

14

NUT

5VM-84117-00-00

$6.99

15

SCREW, PAN

98517-05012-00

$4.73

16

SCREW, ADJUSTING

5BF-8433E-00-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

SPRING, COMPRESSION

90501-100A3-00

Unavailable

19

NUT, ADJUSTING

5VM-84334-00-00

Unavailable
