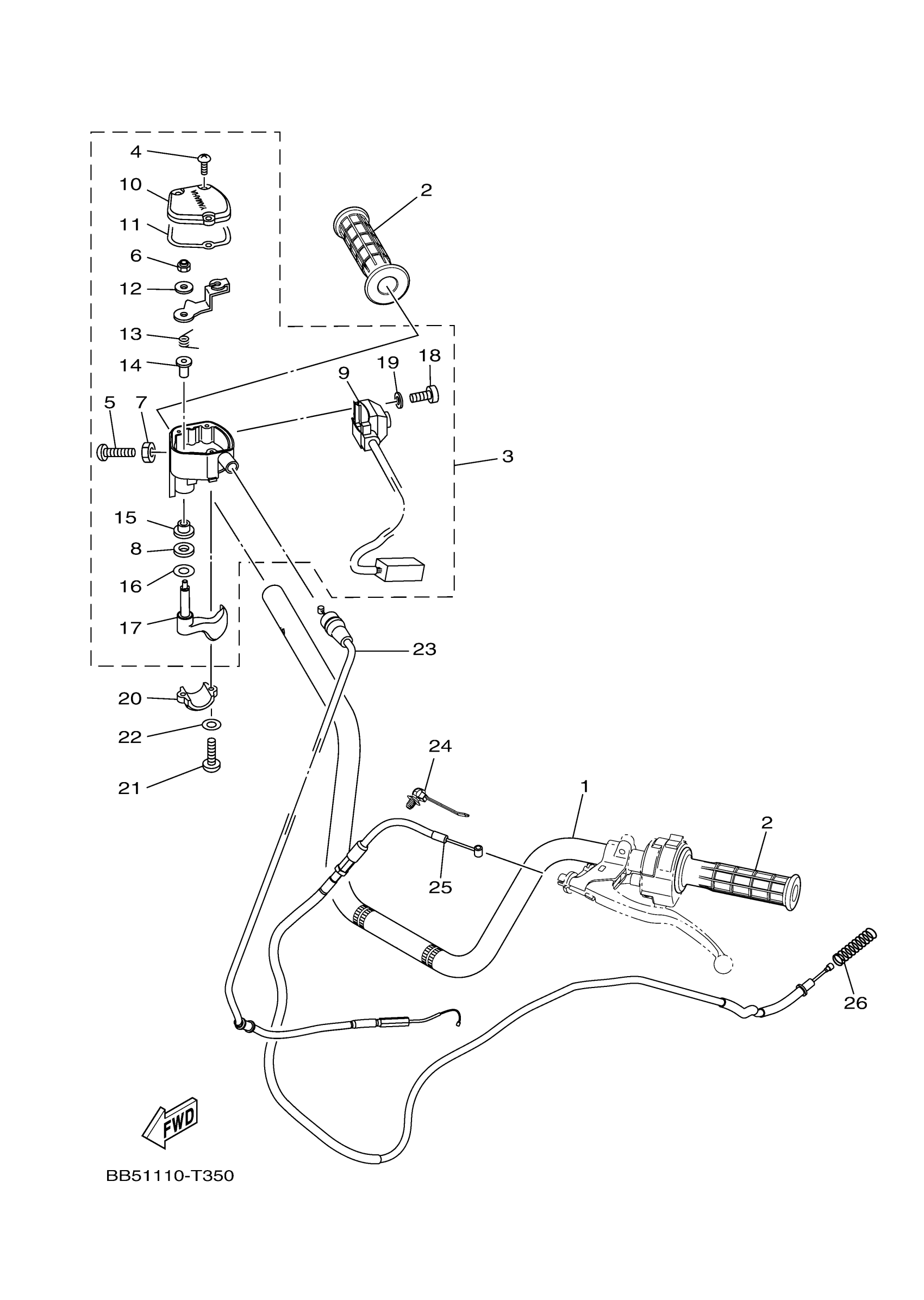

Yamaha YFM45KPHKF (KODIAK 450 EPS 4WD HUNTER) BB5J 2019 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

BB5-F6111-10-00

$37.71

2

GRIP

5FU-F6241-10-00

$10.31

3

THROTTLE LEVER ASSY

BB5-26250-00-00

Unavailable

4

SCREW(3HE)

90149-04278-00

$0.73

5

SCREW, PAN HEAD

98517-05020-00

$1.26

6

NUT, U

95617-05100-00

$6.22

7

NUT, HEXAGON SMALL

95317-05700-00

$5.76

8

OIL SEAL (9X15X4-256)

93104-09025-00

$5.08

9

SWITCH, HANDLE 1

1P1-83976-00-00

$111.14

10

CAP, GEAR

4KB-2628F-10-00

$23.09

11

GASKET

4KB-2628G-00-00

$9.93

12

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

13

SPRING

1NV-26304-00-00

$11.00

14

COLLAR

1NV-26259-01-00

$6.33

15

COLLAR

1NV-2625K-00-00

$5.77

16

WASHER

1NV-26129-00-00

Unavailable

17

LEVER, THROTTLE

BB5-2625G-02-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

20

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

21

SCREW, PAN HEAD

98517-05020-00

$1.26

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

CABLE, THROTTLE 1

BB5-26311-00-00

Unavailable

24

CLAMP

5B4-F1338-00-00

Unavailable

25

WIRE, BRAKE 1

BB5-F6341-00-00

Unavailable

26

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable
