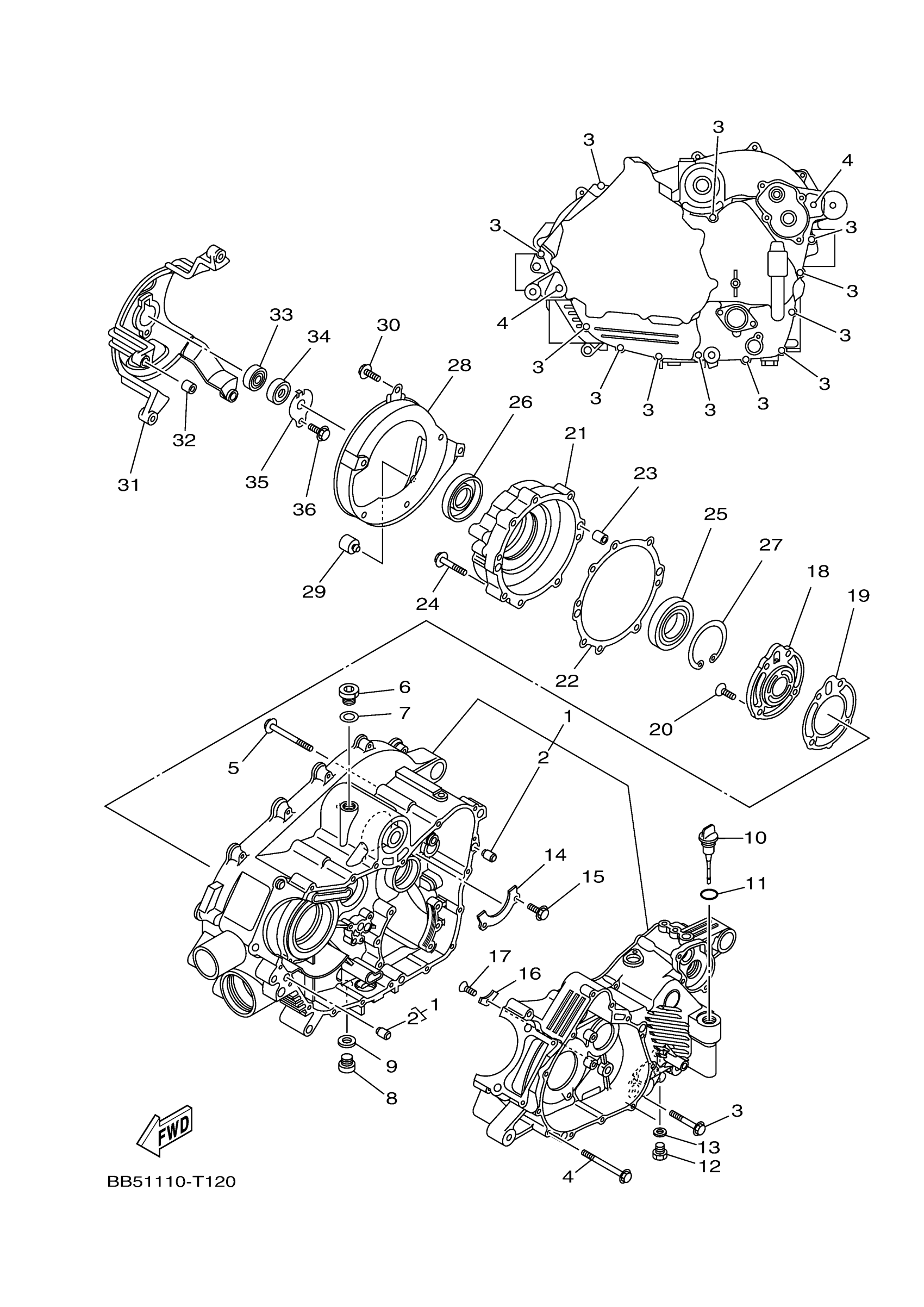

Yamaha YFM45KPHKF (KODIAK 450 EPS 4WD HUNTER) BB5J 2019 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

BB5-15100-09-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, FLANGE

95022-06040-00

$3.45

4

BOLT, FLANGE

95022-06065-00

$1.96

5

BOLT, FLANGE

95022-06065-00

$1.96

6

PLUG, STRAIGHT SCREW

90340-18003-00

Unavailable

7

GASKET (1J7)

90430-18130-00

$8.49

8

PLUG, STRAIGHT SCREW

90340-14002-00

$20.99

9

GASKET

214-11198-01-00

$3.17

10

PLUG, OIL LEVEL

5GH-15362-00-00

Unavailable

11

O-RING (603)

93210-19026-00

$8.49

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$4.29

13

GASKET

214-11198-01-00

$3.17

14

PLATE, BEARING COVER

5GH-15388-00-00

$4.73

15

BOLT, FLANGE

95817-06012-00

$1.43

16

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

17

SCREW, COUNTERSUNK

90151-06023-00

Unavailable

18

COVER, AIR CLEANER

5GH-15414-00-00

Unavailable

19

GASKET 1

5GH-15454-00-00

Unavailable

20

SCREW

90149-06085-00

Unavailable

21

HOUSING, BEARING 1

5GH-15163-00-00

Unavailable

22

GASKET, CARBURETOR COVER 2

5GH-15463-00-00

Unavailable

23

PIN, DOWEL(3VD)

99530-10114-00

$2.55

24

BOLT, FLANGE

95022-06040-00

$3.45

25

BEARING

93316-01003-00

Unavailable

26

OIL SEAL

93102-32483-00

Unavailable

27

CIRCLIP (70R)

93420-80066-00

Unavailable

28

COVER

5GH-15333-00-00

Unavailable

29

DAMPER, ENGINE MOUNT 5

5GH-15338-00-00

Unavailable

30

BOLT, WITH WASHER

90119-06173-00

Unavailable

31

HOUSING, BEARING

5GH-15442-01-00

Unavailable

32

PIN, DOWEL

91810-20001-00

Unavailable

33

BEARING(3WF)

93306-20119-00

Unavailable

34

OIL SEAL

93101-12168-00

Unavailable

35

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

36

BOLT, FLANGE

95022-06012-00

Unavailable
