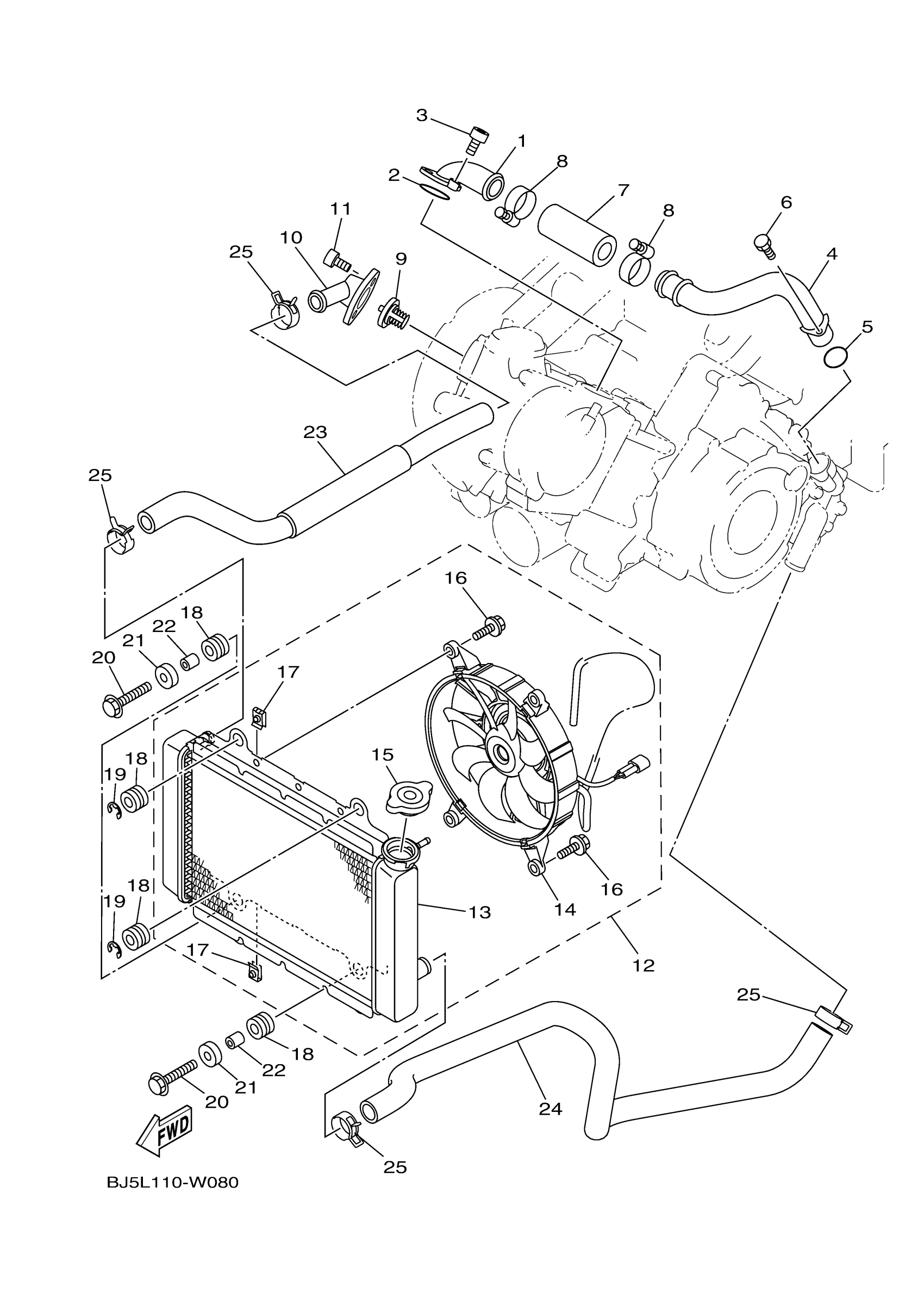

Yamaha YFM45KPATG (KODIAK 450 EPS) DD54 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

JOINT

5GH-12446-00-00

$46.48

2

O-RING

93210-33006-00

$4.85

3

BOLT,SOCKET HEAD

91314-06020-00

$2.05

4

PIPE 4

5GH-12484-00-00

$47.84

5

O-RING (716)

93210-18417-00

$5.56

6

BOLT,SOCKET

91317-06012-00

$6.17

7

PIPE 1

5GH-12481-00-00

$9.37

8

HOSE CLAMP ASSY

90450-32015-00

$15.23

9

THERMOSTAT

2TV-12411-01-00

$62.54

10

COVER, THERMOSTAT

5GH-12413-00-00

$62.78

11

BOLT,SOCKET HEAD

91314-06020-00

$2.05

12

RADIATOR ASSY

BB5-E2460-04-00

Unavailable

13

RADIATOR COMP

BB5-E2461-00-00

$149.68

14

. BLOWER ASSY

5ND-E2405-03-00

Unavailable

15

CAP, RADIATOR

1XD-E2462-00-00

Unavailable

16

BOLT, BLOWER HOLDI

5ND-E2675-00-00

$0.66

17

PLATE

5ND-E2535-00-00

$11.29

18

GROMMET(2GH)

90480-12475-00

$6.68

19

CIRCLIP

99002-10600-00

$6.28

20

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.74

21

WASHER

90209-06012-00

$4.71

22

COLLAR

90387-06113-00

$10.51

23

PIPE 2 (RADIATOR HOSE)

5ND-E2482-00-00

$45.57

24

PIPE 3

1CT-E2483-00-00

$20.18

25

CLIP

90467-26800-00

$3.00
