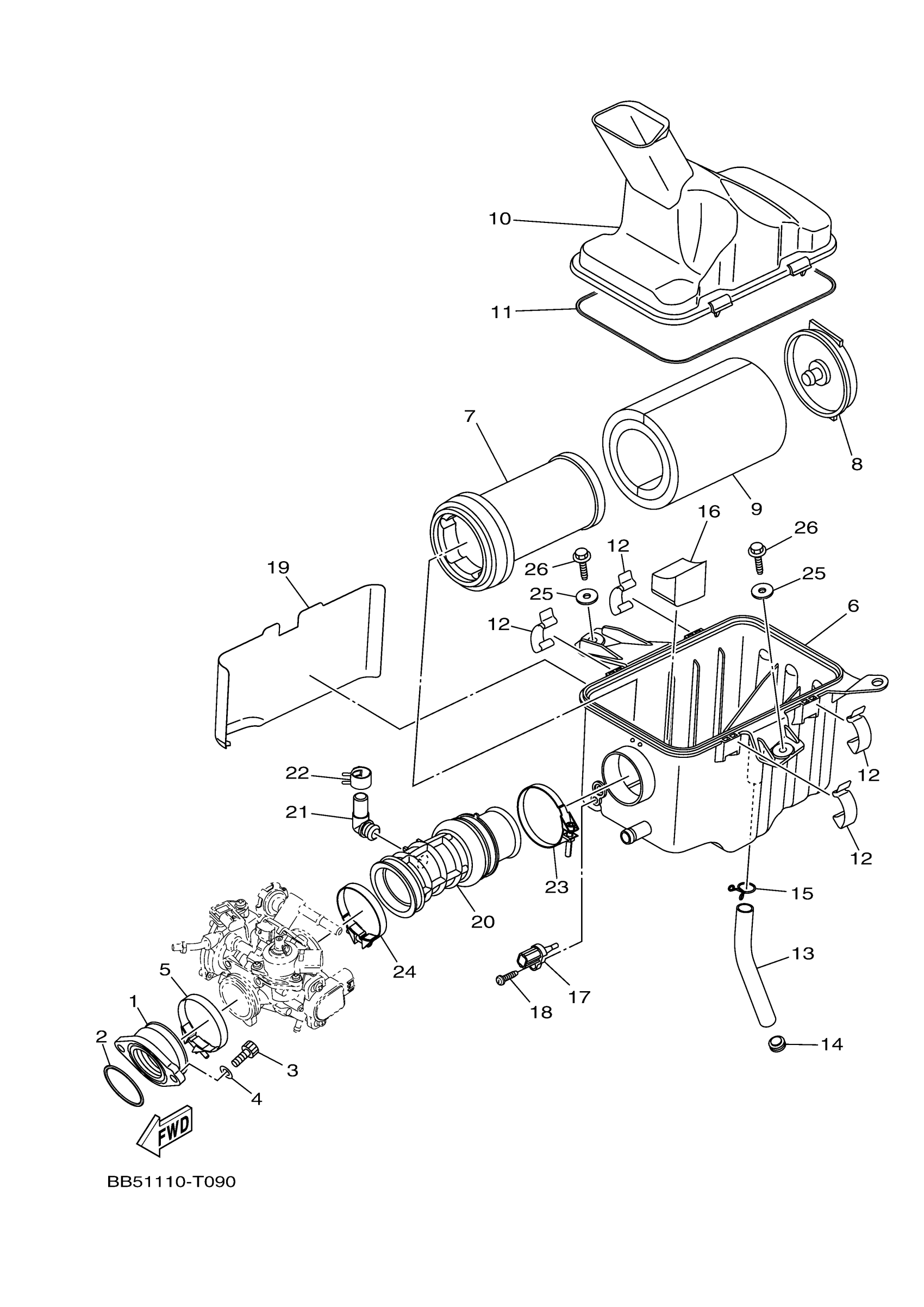

Yamaha YFM45KPATG (KODIAK 450 EPS) DD54 2026 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

BB5-13586-00-00

$56.58

2

O-RING (10L)

93210-44545-00

$11.47

3

BOLT,SOCKET

91314-08020-00

$6.17

4

WASHER, PLATE

90201-08070-00

$6.23

5

HOSE CLAMP ASSY

90450-54009-00

$9.77

6

CASE, AIR CLEANER

BB5-E4411-00-00

$28.17

7

GUIDE

5UH-E4458-00-00

$17.41

8

PLATE,ELEMENT FIT (END CAP)

5UH-E4468-00-00

$5.28

9

ELEMENT, AIR CLEAN

1NS-E4451-00-00

$19.79

10

CAP, CLEANER CASE

BB5-E4412-00-00

$23.52

11

SEAL

BB5-E4462-01-00

$5.94

12

CLIP, CAP FITTING

3B4-14424-00-00

$6.72

13

PIPE, DRAIN

5UH-E4769-10-00

$7.71

14

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

15

CLIP, DRAIN CLEANER

5UH-E4438-01-00

$2.66

16

ELEMENT, AIR CLEAN

BB5-E4461-00-00

$7.68

17

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$49.83

18

SCREW, PANHEAD TAPPING

97702-50520-00

$0.28

19

PROTECTOR

5ND-E442F-01-00

$4.00

20

JOINT, AIR CLEANER

BB5-E4453-00-00

$9.91

21

PIPE

5TJ-14419-00-00

$7.57

22

. CLIP

90467-150A1-00

$3.55

23

HOSE CLAMP ASSY

90450-58002-00

$15.11

24

HOSE CLAMP ASSY

90450-54009-00

$9.77

25

WASHER, PLATE

90201-06036-00

$6.26

26

BOLT, FLANGE

90105-06833-00

$1.77
