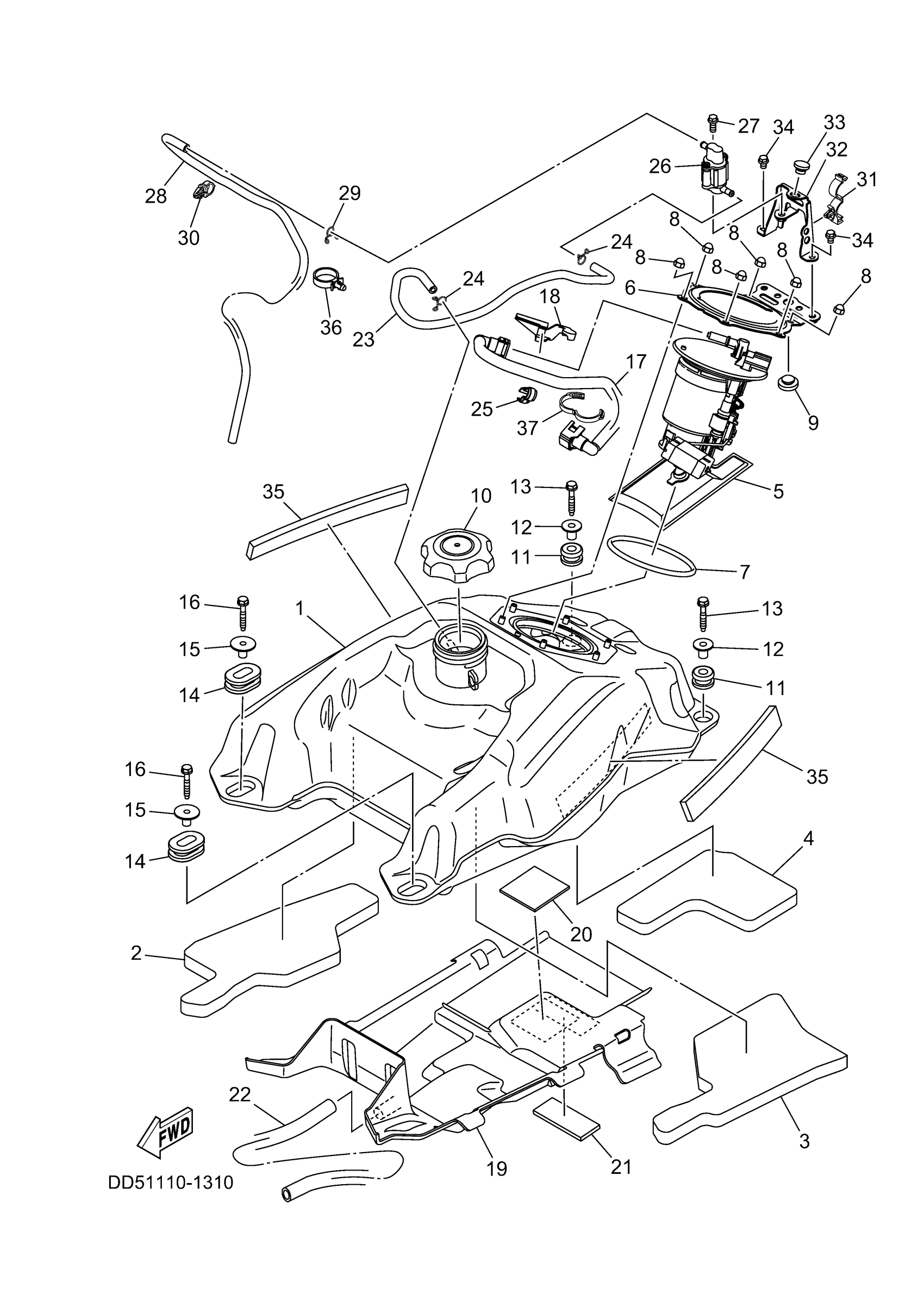

Yamaha YFM45KPATG (KODIAK 450 EPS) DD54 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BB5-F4110-01-00

$192.09

2

INSULATOR 3

BB5-F172S-00-00

$11.71

3

INSULATOR 4

BB5-F173S-00-00

$10.60

4

INSULATOR 5

BB5-F174S-00-00

$7.05

5

FUEL PUMP COMP.

DD5-13907-00-00

Unavailable

6

BRACKET, FUEL PUMP

BB5-24491-00-00

$15.02

7

O-RING

1S3-24486-00-00

$15.04

8

NUT (J17)

95380-06800-00

$6.74

9

STOPPER, MAIN STAND

128-27114-00-00

$6.62

10

CAP ASSY

BKP-24610-00-00

$26.28

11

GROMMET (4V1)

90480-18290-00

$7.02

12

COLLAR (36R)

90387-066J1-00

$6.86

13

BOLT, WITH WASHER

90119-06883-00

$1.20

14

GROMMET(38W)

90480-01400-00

$10.06

15

COLLAR

90387-07021-00

$6.26

16

BOLT, WITH WASHER

90119-06883-00

$1.20

17

PIPE, FUEL 1

BB5-13971-01-00

Unavailable

18

CLAMP

90464-14004-00

$5.40

19

DAMPER, PLATE 1

BB5-F414H-00-00

$12.32

20

DAMPER

1B2-F174Y-00-00

$1.63

21

DAMPER, RUBBER 1

BB5-21485-00-00

$3.98

22

HOSE

90445-19005-00

$19.18

23

PIPE 2

BB5-F4312-00-00

$9.17

24

CLIP

90467-090A2-00

$2.51

25

CLAMP(53Y)

90464-15065-00

$5.72

26

PIPE JOINT ASSY

BB5-24380-00-00

$36.43

27

BOLT, FLANGE DEEP RECESS

95E32-06014-00

$0.35

28

HOSE (L960)

90445-095K5-00

$12.98

29

CLIP

90467-090A2-00

$2.51

30

CLAMP

90464-12830-00

$1.02

31

CLAMP

90464-18007-00

$3.46

32

STAY

BB5-F4216-00-00

$3.66

33

PLUG (11H)

90338-11125-00

$6.71

34

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.74

35

DAMPER, PLATE

90520-08001-00

$6.98

36

CLAMP(4NK)

90464-24230-00

$5.62

37

CLAMP

90464-28003-00

$2.77
