Description

Price

1

CYLINDER HEAD ASSY

DD5-11101-09-00

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$24.50

3

CIRCLIP (1L9)

93440-12052-00

$1.75

4

BOLT, FLANGE

95022-06014-00

$2.63

5

GASKET (4V2)

90430-06166-00

$3.45

6

BOLT, STUD

95612-08620-00

$6.25

7

GASKET, CYLINDER HEAD 1

5GH-11181-00-00

$50.68

8

PIN, DOWEL

99530-14016-00

$3.20

9

GASKET

90430-14240-00

$6.91

10

BOLT, FLANGE

90105-10137-00

$10.65

11

BOLT, FLANGE

90105-10136-00

$9.83

12

WASHER PLATE 341839090000

90201-10128-00

$3.42

13

BOLT

91312-06140-00

$8.66

14

BREATHER ASSY

4WU-11160-01-00

$64.60

15

PLATE, BREATHER

4KB-11165-00-00

$23.92

16

BOLT, FLANGE

95022-06012-00

$3.00

17

O-RING (15A)

93211-06635-00

$12.42

18

BOLT,SOCKET

91317-06025-00

$2.05

19

PIPE 1

BB5-14871-00-00

$58.37

20

GASKET

5XT-14815-10-00

$3.54

21

BOLT,SOCKET

91317-06012-00

$6.17

22

BOLT,SOCKET

91317-06016-00

$1.16

23

PIPE, BREATHER 1

BB5-E1166-00-00

$5.02

24

CLIP

90467-140A4-00

$8.31

25

COVER, CYLINDER HEAD SIDE 2

2NL-11186-12-00

$10.95

26

O-RING

93210-57634-00

$12.58

27

BOLT,SOCKET HEAD

91314-06020-00

$2.05

28

PLATE

5GH-1111F-00-00

$25.00

29

BOLT (661)

97013-06012-00

$4.71

30

WASHER, LOCK

90215-06003-00

$11.26

31

DR7EA NGK SPLUG 10PK

DR7-EA000-00-00

$3.92

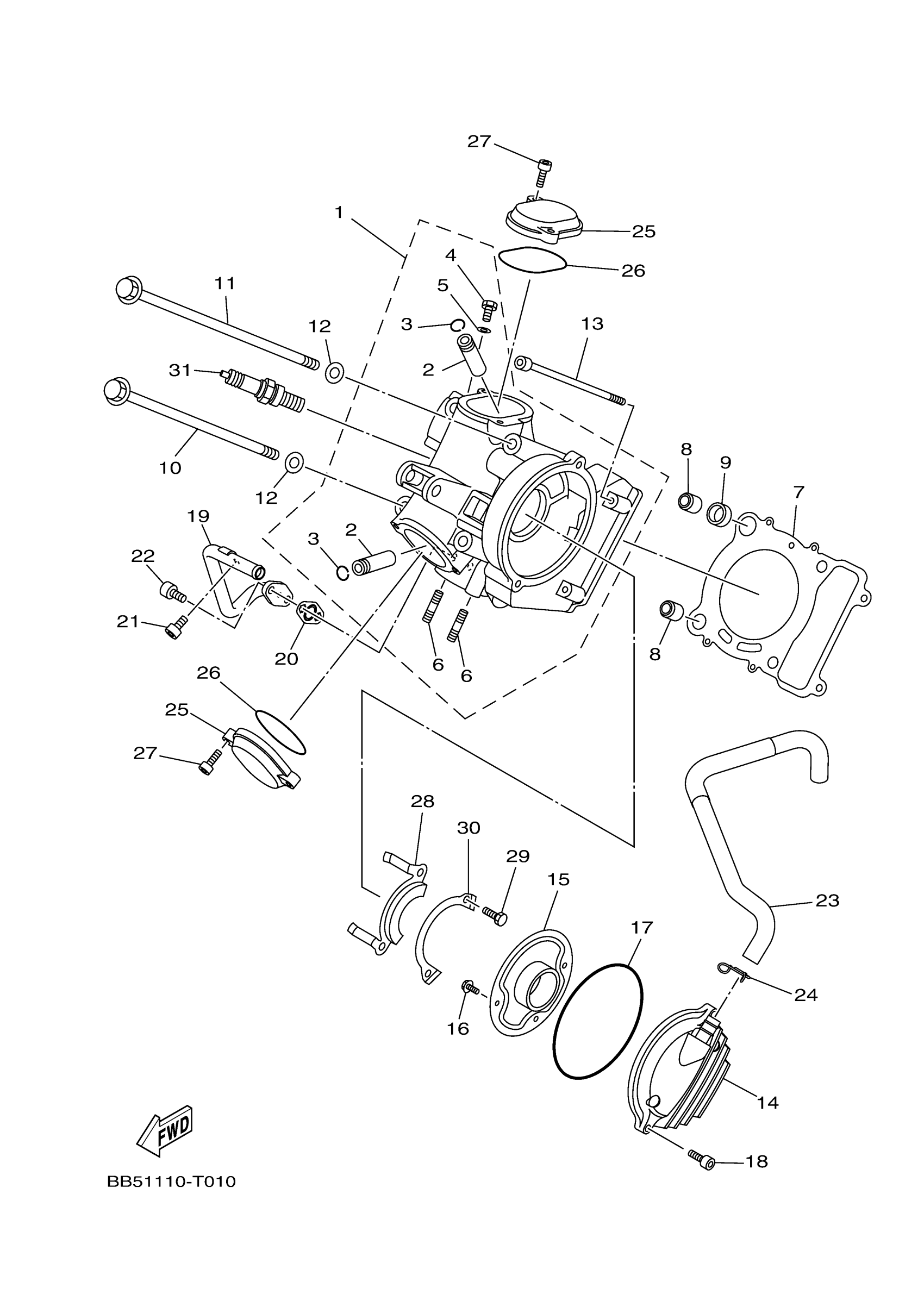

Yamaha YFM45KPATG (KODIAK 450 EPS) DD54 2026 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY
