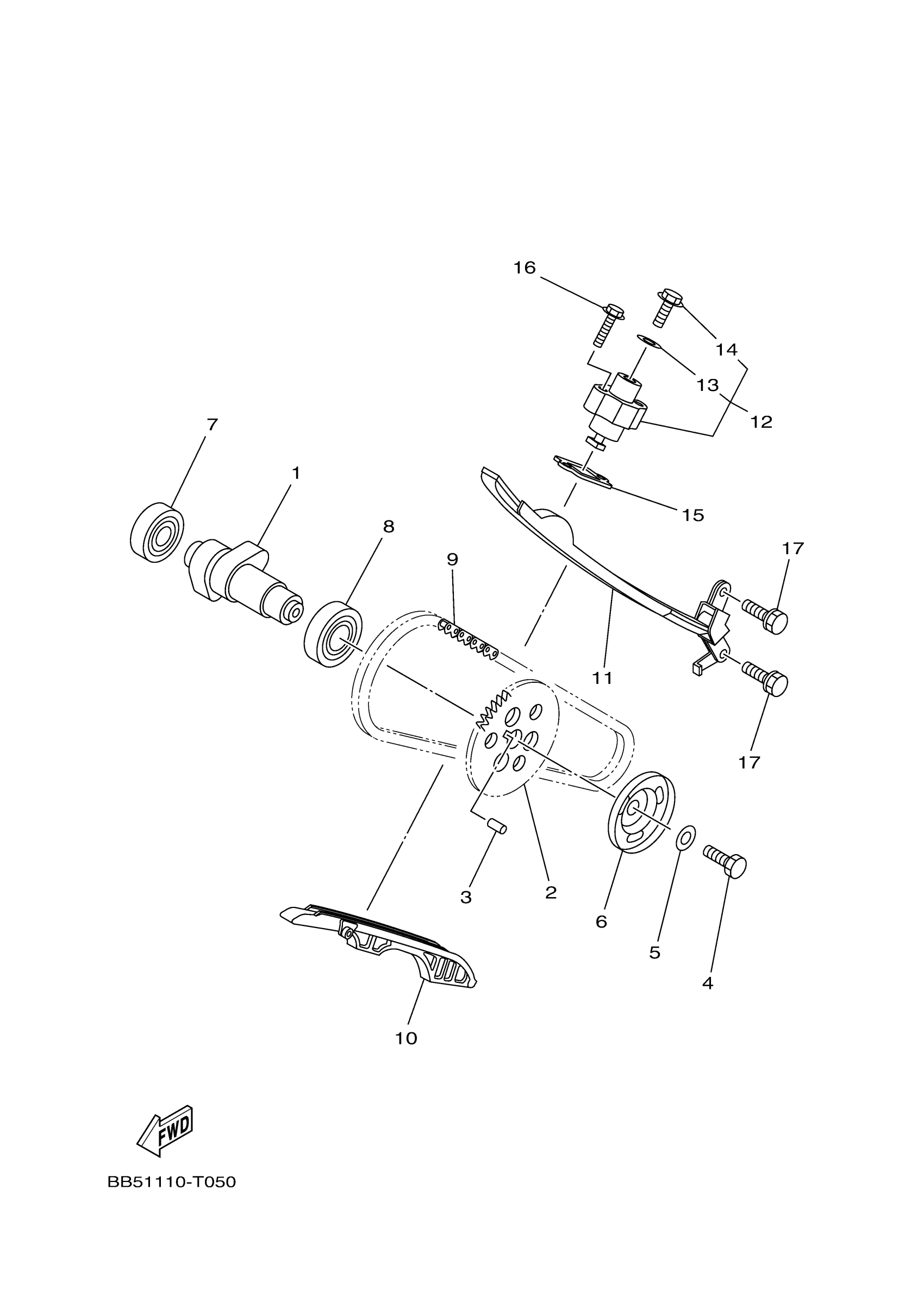

Yamaha YFM45KPATG (KODIAK 450 EPS) DD54 2026 CAMSHAFT & CHAIN Diagram

Description

Price

CAMSHAFT 1

5GH-12171-01-00

$176.99

SPROCKET, CAM CHAIN

5GH-12176-10-00

$50.99

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT

90101-10016-00

$4.14

WASHER, PLATE (3L6)

90201-10774-00

$9.49

PLATE, BREATHER 2

4KB-11145-00-00

$11.99

BEARING(3BN)

93306-00438-00

$37.99

BEARING (31G)

93306-00515-00

$42.99

CHAIN

94582-20116-00

$30.99

GUIDE, STOPPER 1

5GH-12231-10-00

$49.99

GUIDE, STOPPER 2

5GH-12241-01-00

$64.99

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

GASKET, TENSIONER

31G-12214-00-00

$14.49

PLUG

31G-12222-00-00

$24.99

GASKET, TENSIONER CASE

3GD-12213-00-00

$6.99

BOLT, FLANGE

95022-06025-00

Unavailable

BOLT, WITH WASHER

90119-06173-00

Unavailable
