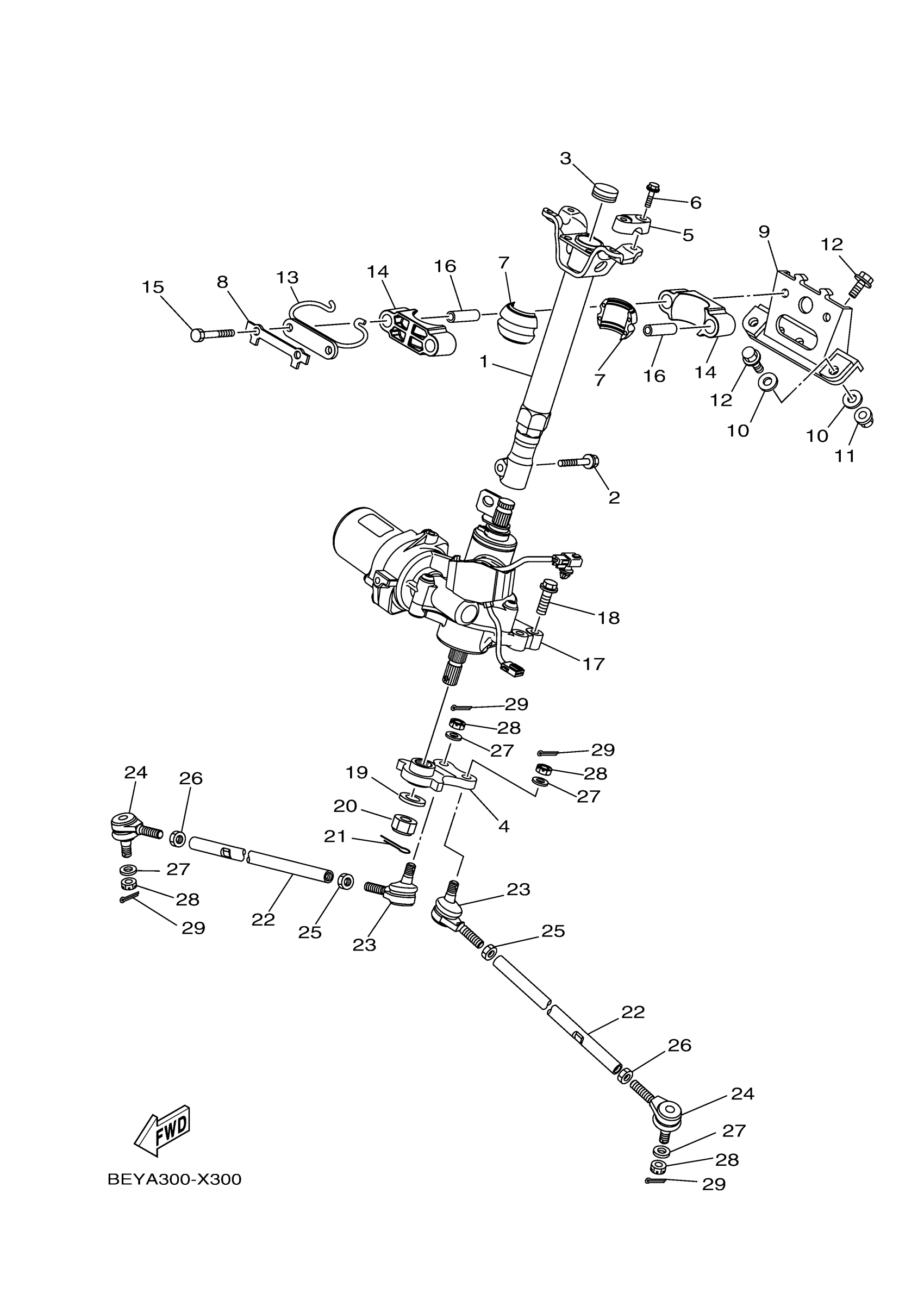

Yamaha YFM45KPASG (KODIAK 450 EPS) D28D 2025 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

BB5-F3813-00-00

$150.99

2

BOLT, FLANGE

90105-08290-00

Unavailable

3

PLUG, TAPER(2HR)

90336-28053-00

$10.49

4

ARM, PITMAN

B5R-F3816-00-00

$26.99

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

6

BOLT, FLANGE DEEP RECESS

95D32-08030-00

$1.28

7

PLANE BEARING, STE

1CT-F3812-00-00

$7.99

8

WASHER, LOCK 1

1CT-F3894-00-00

Unavailable

9

BRACKET, STEERING

1CT-F253F-00-00

Unavailable

10

WASHER, PLATE

90201-08055-00

$8.49

11

NUT(4KM)

90179-08674-00

$7.49

12

BOLT, FLANGE

95812-08020-00

$2.80

13

BRACKET, STEERING

1CT-F3868-00-00

$8.99

14

BRACKET, STEERING

1CT-F1957-00-00

Unavailable

15

BOLT

97012-08080-00

Unavailable

16

COLLAR, 2

1CT-F1545-01-00

Unavailable

17

POWER STRG. ACTUATOR ASSY

3B4-238B0-43-00

Unavailable

18

BOLT, FLANGE

90105-08150-00

Unavailable

19

WASHER, PLATE

90201-16021-00

Unavailable

20

NUT U

95612-16100-00

Unavailable

21

PIN, COTTER

91490-20035-00

Unavailable

22

ROD, TIE

BB5-23831-00-00

Unavailable

23

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

24

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

25

NUT (682)

95380-10700-00

Unavailable

26

NUT

90170-10010-00

Unavailable

27

WASHER (25G)

90209-10229-00

Unavailable

28

NUT, CASTLE

90171-10001-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable
