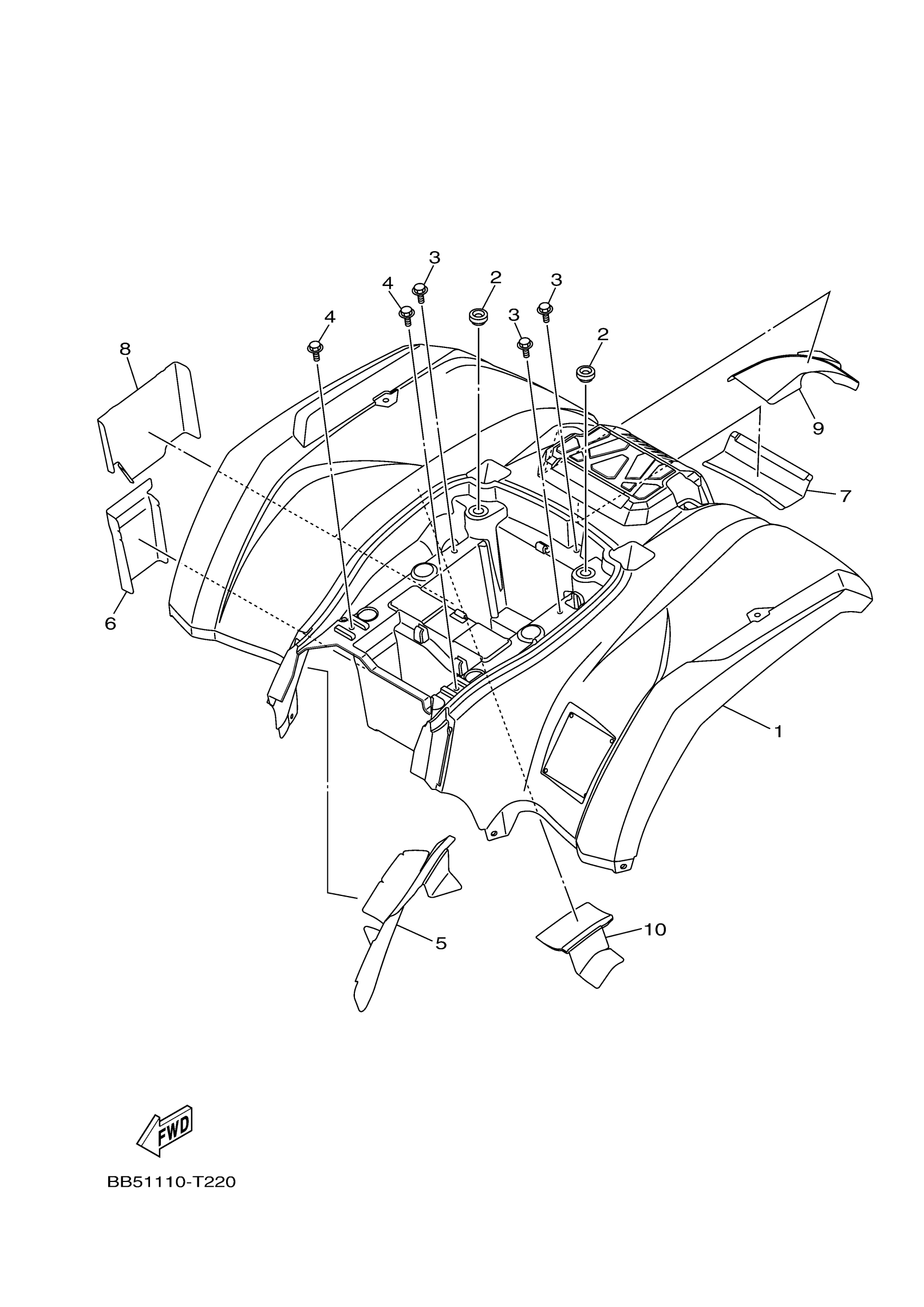

Yamaha YFM45KPASG (KODIAK 450 EPS) D28D 2025 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY

B5R-F1600-40-00

$180.70

2

GROMMET

90480-16807-00

$1.31

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

4

BOLT, FLANGE

90105-06831-00

$1.18

5

COVER, REAR FENDER

BB5-F163A-00-00

$11.61

6

COVER, REAR FENDER

BB5-F163E-00-00

$5.47

7

PROTECTOR

BB5-F1652-00-00

$5.39

8

COVER, REAR FENDER

BB5-F163F-00-00

$5.58

9

SEAL 1

BB5-F1732-03-00

Unavailable

10

SEAL 3

BB5-F173M-03-00

$5.56
