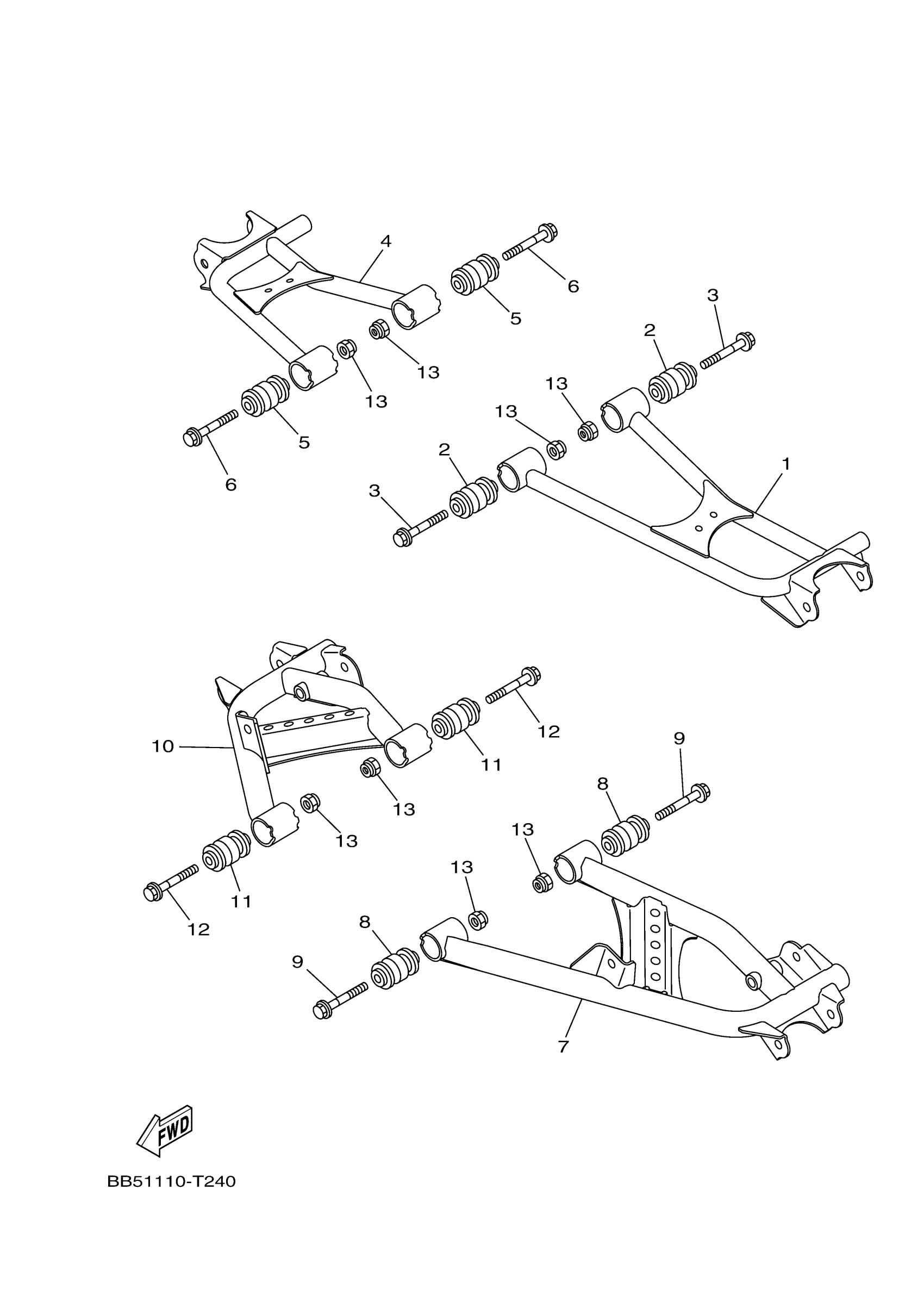

Yamaha YFM45KPASG (KODIAK 450 EPS) D28D 2025 REAR ARM Diagram

#

Description

Price

1

ARM, REAR 1

BB5-F2171-01-00

$31.50

2

BUSH

1HP-F3526-00-00

$20.42

3

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

4

ARM, REAR 2

BB5-F2172-01-00

$34.29

5

BUSH

1HP-F3526-00-00

$20.42

6

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

7

ARM 1

BB5-F217M-01-00

$37.76

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

10

ARM 2

BB5-F217N-01-00

$50.24

11

BUSH

1HP-F3526-00-00

$20.42

12

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

13

NUT, S/L FLANGE

95602-10200-00

$2.14
