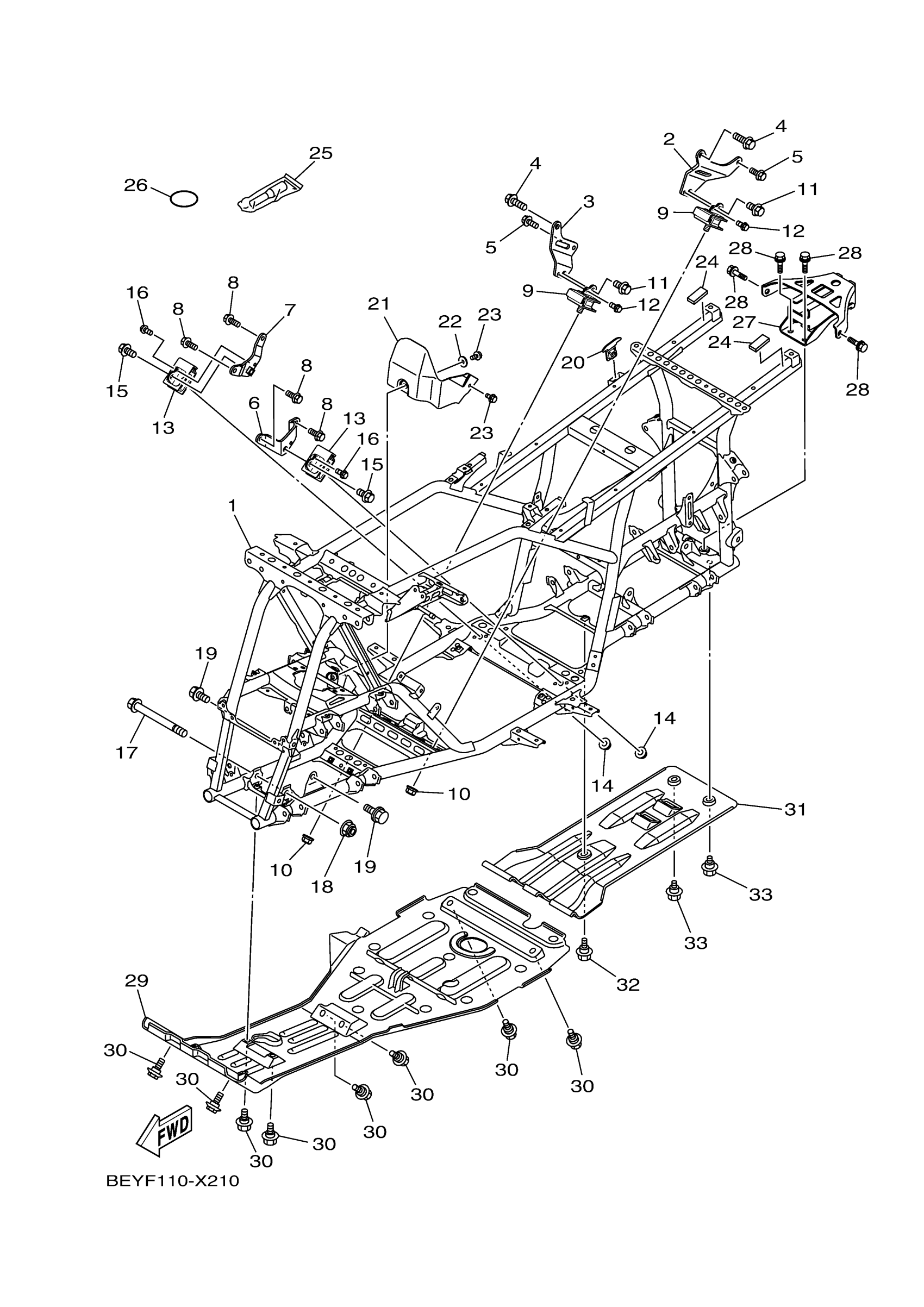

Yamaha YFM45KPASG (KODIAK 450 EPS) D28D 2025 FRAME Diagram

#

Description
Price

1

FRAME COMP.

B5R-F1110-01-00

Unavailable

2

STAY, ENGINE 1

BB5-F1315-00-00

$13.49

3

STAY, ENGINE 2

BB5-F1316-00-00

$9.49

4

BOLT, FLANGE DEEP RECESS

95D32-10030-00

$1.06

5

BOLT, FLANGE

95812-08020-00

$2.80

6

STAY, ENGINE 3

BB5-F1317-00-00

$9.49

7

STAY, ENGINE 4

BB5-F1318-00-00

$8.49

8

BOLT, FLANGE

95812-08020-00

$2.80

9

DAMPER, RUBBER 1

3B4-21485-01-00

$42.99

10

NUT, SELF-LOCKING

90185-10011-00

$5.60

11

BOLT, FLANGE DEEP RECESS

95D32-10020-00

Unavailable

12

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

13

DAMPER, RUBBER 1

3B4-21485-01-00

$42.99

14

NUT, SELF-LOCKING

90185-10011-00

$5.60

15

BOLT, FLANGE DEEP RECESS

95D32-10020-00

Unavailable

16

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

17

BOLT, FLANGE

90105-10230-00

Unavailable

18

NUT, SELF-LOCKING

90185-10011-00

$5.60

19

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

20

STAY, MUFFLER 2

BB5-F1446-00-00

Unavailable

21

PROTECTOR 1

1CT-F2825-00-00

Unavailable

22

WASHER, PLATE

90201-06078-00

Unavailable

23

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable

24

DAMPER

BB5-F113B-10-00

Unavailable

25

GAUGE, AIR

1NV-2811A-01-00

Unavailable

26

O-RING (4X7)

93210-92448-00

Unavailable

27

RR HITCH ASSY

2SM-F3802-00-00

Unavailable

28

BOLT, FLANGE

95812-10014-00

Unavailable

29

GUARD, ENGINE 1

5ND-F147A-03-00

Unavailable

30

BOLT

90109-06043-00

Unavailable

31

GUARD COMP.

1CT-F840K-10-00

Unavailable

32

BOLT

90109-06043-00

Unavailable

33

BOLT

90109-06202-00

Unavailable
