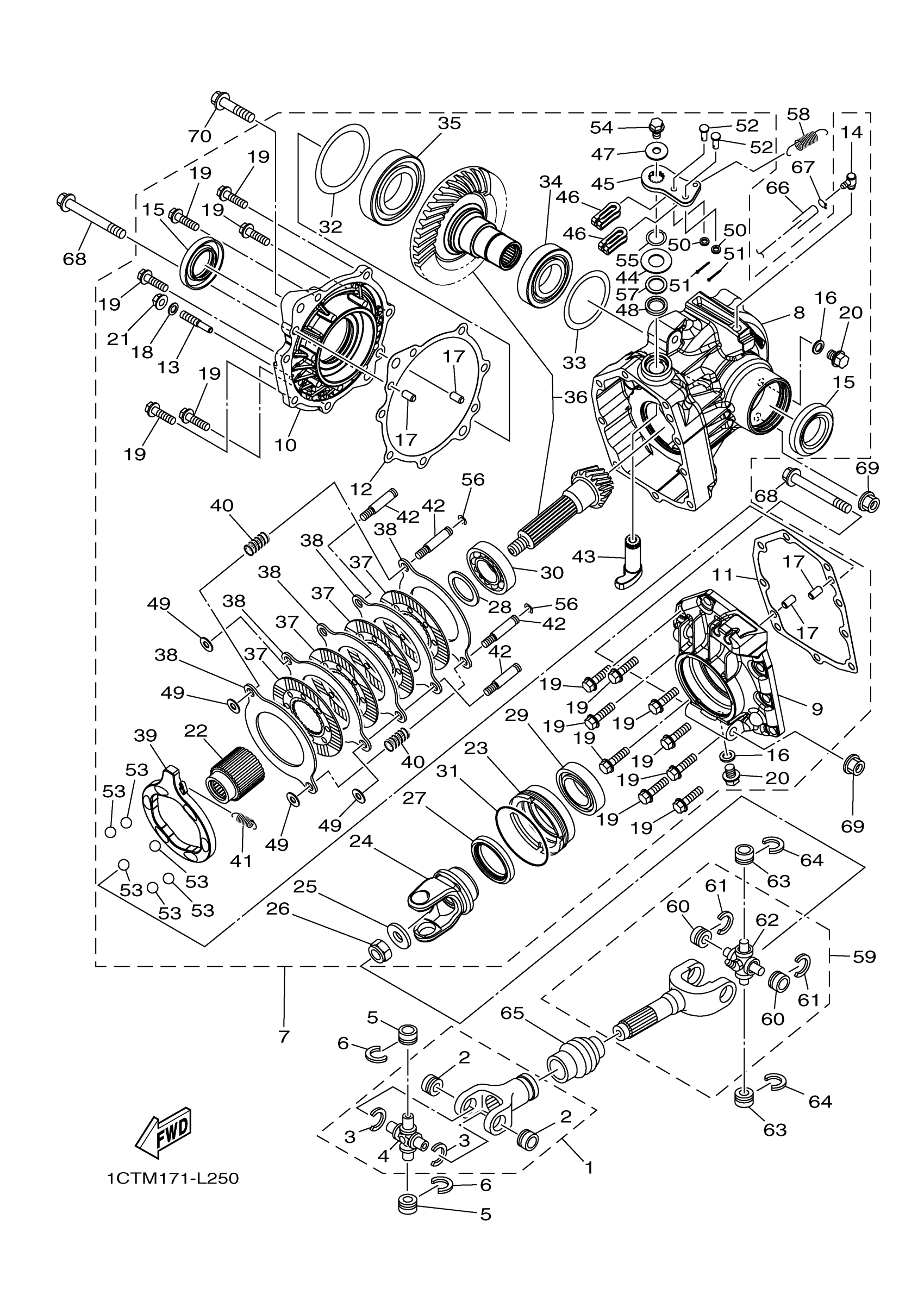

Yamaha YFM45KPASG (KODIAK 450 EPS) D28D 2025 DRIVE SHAFT Diagram
#
8
HOUSING, DRIVE SHA
1CT-G6151-01-00
Unavailable
10
HOUSING, BEARING
1CT-G6152-01-00
Unavailable
13
. STOPPER, RING GEAR
1CT-G6156-00-00
Unavailable
14
. BREATHER
1CT-E5371-00-00
Unavailable
16
GASKET
1CT-E1195-00-00
Unavailable
17
ROLLER
1CT-E3362-00-00
Unavailable
18
GASKET
1CT-G6819-00-00
Unavailable
19
BOLT
1CT-E2157-00-00
Unavailable
20
BOLT
1CT-E2228-00-00
Unavailable
21
. NUT, ADJUSTING
1CT-E3275-00-00
Unavailable
22
COUPLING
1CT-G6126-00-00
Unavailable
23
NUT
1CT-G4583-00-00
Unavailable
24
YOKE, JOINT
1CT-G6186-00-00
Unavailable
25
WASHER 1
1CT-E1557-00-00
Unavailable
26
NUT, LOCK
1CT-E6377-00-00
Unavailable
27
OIL SEAL
1CT-E511B-10-00
Unavailable
28
SHIM, PINION
1CT-E7531-00-00
Unavailable
29
BEARING 1
1CT-E1428-00-00
Unavailable
30
BEARING 2
1CT-E1429-00-00
Unavailable
31
OIL RING, PISTON
1CT-E1614-00-00
Unavailable
32
SHIM
1CT-G5567-00-00
Unavailable
33
SHIM
1CT-G5577-00-00
Unavailable
34
BEARING
1CT-E142A-00-00
Unavailable
35
BEARING 4
1CT-E142B-00-00
Unavailable
36
RING GEAR SET
1CT-G61A0-01-00
Unavailable
37
INSERT, PLATE
1CT-F5345-00-00
Unavailable
38
PLATE 1
1CT-F539F-00-00
Unavailable
39
PLATE, GUIDE
1CT-F5689-00-00
Unavailable
40
SPRING, RETURN
1CT-G6277-00-00
Unavailable
41
. SPRING
1CT-F476L-00-00
Unavailable
42
BOLT,LOCK PLATE
1CT-G2478-10-00
Unavailable
43
CAMSHAFT
1CT-F5351-00-00
Unavailable
44
. WASHER
1CT-E2289-10-00
Unavailable
45
. LEVER, CAMSHAFT
1CT-F5355-00-00
Unavailable
46
. END, CABLE 3
1CT-F6374-00-00
Unavailable
47
WASHER 2
1CT-G1298-00-00
Unavailable
48
RING,SEAL
1CT-E4005-10-00
Unavailable
49
WASHER, 1
1CT-G1297-00-00
Unavailable
50
. WASHER 2
1CT-E1558-00-00
Unavailable
51
. GUIDE 1
1CT-E469U-00-00
Unavailable
52
. PIN, STRAIGHT
1CT-E319L-00-00
Unavailable
53
BALL
1CT-E7051-00-00
Unavailable
54
. BOLT 2
1CT-E22A1-00-00
Unavailable
55
. CLIP
1CT-E1486-00-00
Unavailable
56
CLIP
1CT-G5319-00-00
Unavailable
57
. SHIM
1CT-E3147-00-00
Unavailable
58
SPRING, TENSION(J45)
90506-14397-00
Unavailable
59
CROSS JOINT COMP. 2
1CT-46107-00-00
Unavailable
65
SEAL 1
5GT-46136-00-00
Unavailable
66
HOSE
90445-07810-00
Unavailable
67
CLIP (1J7)
90467-07029-00
Unavailable
68
BOLT, FLANGE
90105-10844-00
Unavailable
69
NUT, SELF-LOCKING
90185-10011-00
Unavailable
70
BOLT, FLANGE
90105-10386-00
Unavailable
