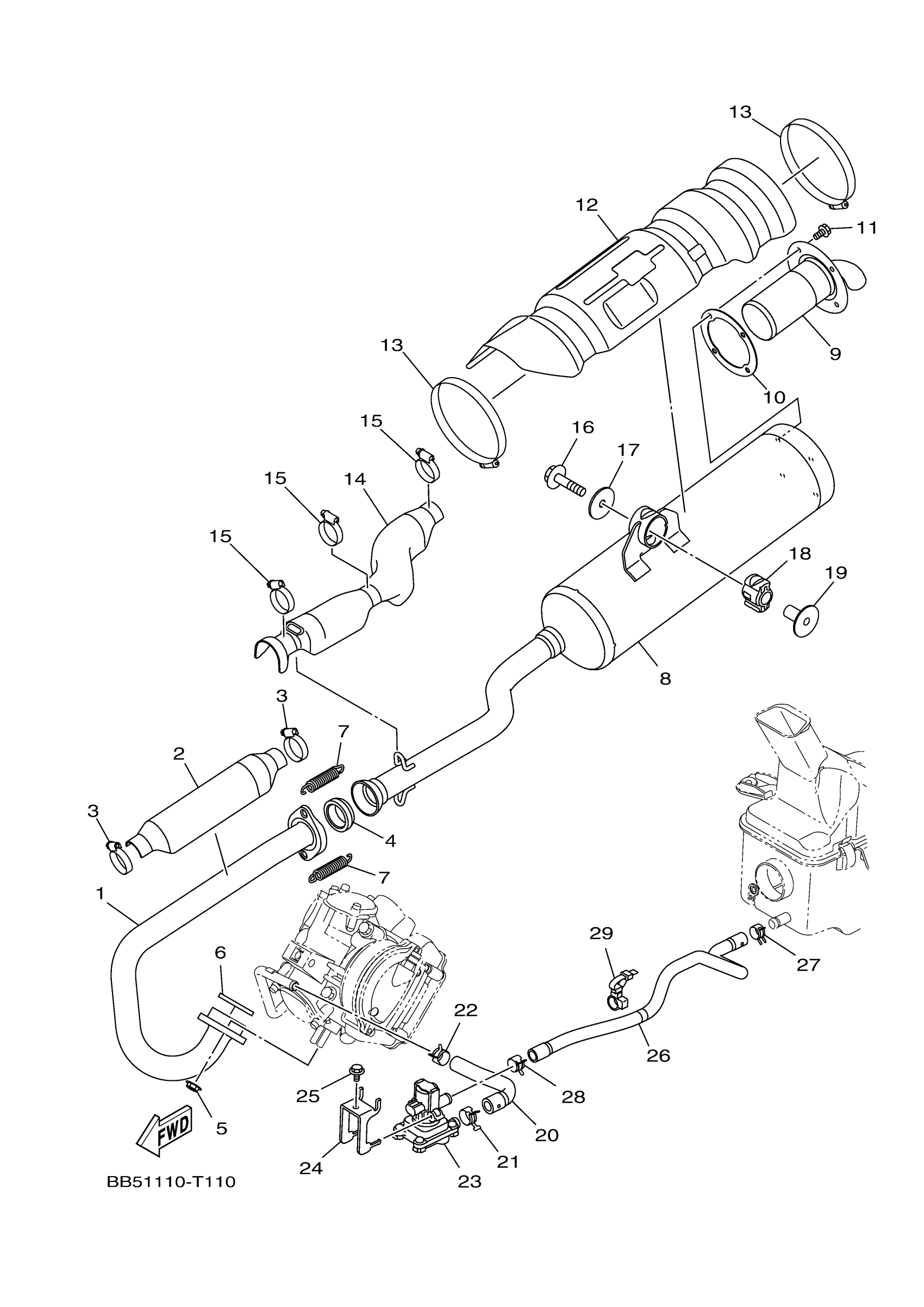

Yamaha YFM45KPANG (KODIAK 450 EPS) BEYF 2022 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BB5-E4611-01-00

Unavailable

2

PROTECTOR, EXHAUST

BB5-E4628-00-00

Unavailable

3

HOSE CLAMP ASSY

90450-38003-00

$16.99

4

GASKET, MUFFLER

BB5-E4714-00-00

Unavailable

5

NUT,FLANGE(J10)

95702-08500-00

$1.43

6

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

7

SPRING, TENSION

90506-26012-00

$13.99

8

MUFFLER 1

BB5-E4711-01-00

$382.99

9

SPARK ARRESTER ASS

2BG-E4780-00-00

$69.99

10

GASKET, SILENCER

2BG-E4755-00-00

$21.99

11

BOLT, FLANGE

95022-06012-00

$3.29

12

PROTECTOR, MUFFLER

BB5-E4718-00-00

$33.99

13

HOSE CLAMP ASSY

90450-99805-00

$44.99

14

PROTECTOR, MUFFLER

BB5-E4728-00-00

$36.99

15

HOSE CLAMP ASSY

90450-38003-00

$16.99

16

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

17

WASHER PLATE 256234440000

90201-10149-00

Unavailable

18

DAMPER, MUFFLER

BB5-14737-00-00

Unavailable

19

COLLAR

90387-10113-00

Unavailable

20

HOSE, BEND 1

BB5-14881-00-00

Unavailable

21

CLIP (23E)

90467-20085-00

Unavailable

22

CLIP

90467-18179-00

Unavailable

23

AIR INDUCTION SYSTEM ASSY

5VK-14803-00-00

Unavailable

24

BRACKET

2MB-F1159-00-00

Unavailable

25

BOLT, FLANGE

95812-06010-00

Unavailable

26

HOSE, BEND 2

BB5-E4882-00-00

Unavailable

27

CLIP

90467-16009-00

Unavailable

28

CLIP(3TB)

90467-17128-00

Unavailable

29

CLAMP

90464-25006-00

Unavailable
