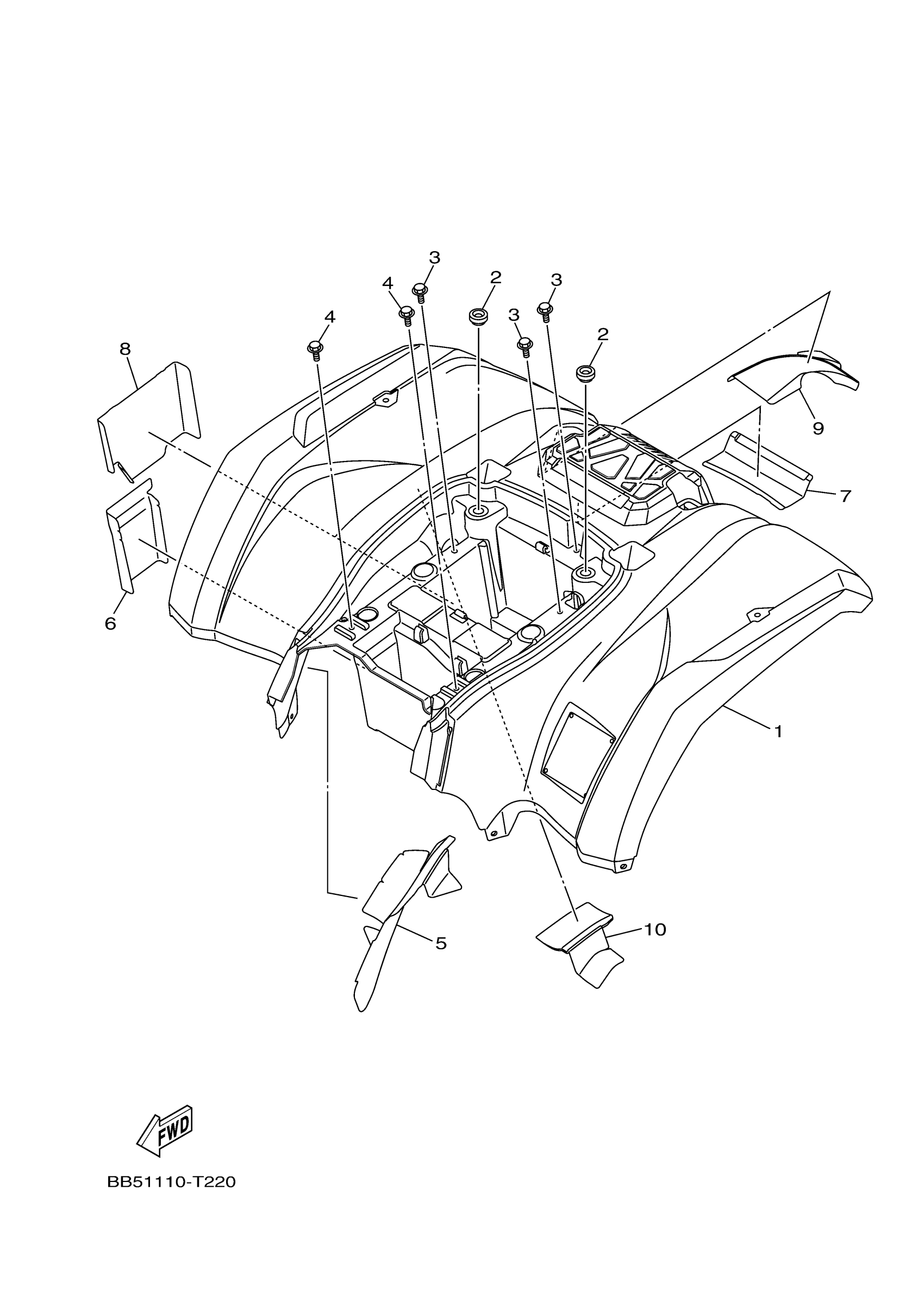

Yamaha YFM45KPAMG (KODIAK 450 EPS) BEY6 2021 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY

B5R-F1600-40-00

$183.48

2

GROMMET

90480-16807-00

$1.20

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.23

4

BOLT, FLANGE

90105-06831-00

$1.20

5

COVER, REAR FENDER

BB5-F163A-00-00

$11.78

6

COVER, REAR FENDER

BB5-F163E-00-00

$5.55

7

PROTECTOR

BB5-F1652-00-00

$5.48

8

COVER, REAR FENDER

BB5-F163F-00-00

$5.66

9

SEAL 1

BB5-F1732-03-00

Unavailable

10

SEAL 3

BB5-F173M-03-00

$5.65
