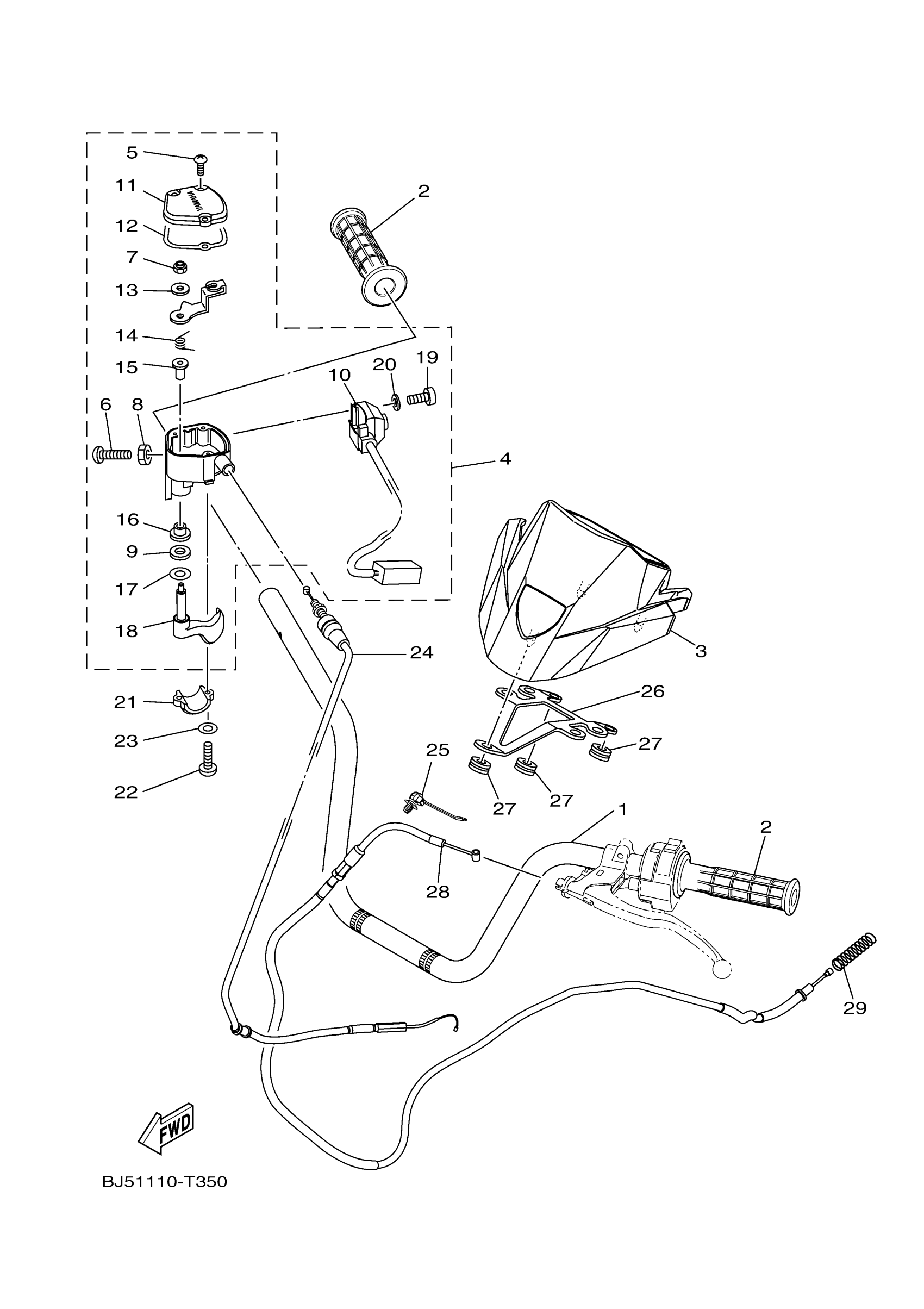

Yamaha YFM45KDXTL (KODIAK 450) D297 2026 STEERING HANDLE & CABLE Diagram

HANDLEBAR

BB5-F6111-10-00

$47.99

GRIP

5FU-F6241-10-00

$17.49

PROTECTOR, HANDLEB

BJ5-F6124-00-00

$9.49

THROTTLE LEVER ASS

BB5-26250-01-00

Unavailable

SCREW(3HE)

90149-04278-00

$2.39

SCREW, PAN HEAD

98517-05020-00

$4.25

NUT, U

95617-05100-00

$9.49

NUT, HEXAGON SMALL

95317-05700-00

$8.49

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

SWITCH, HANDLE 1

1P1-83976-00-00

$137.99

CAP, GEAR

4KB-2628F-10-00

$30.99

GASKET

4KB-2628G-00-00

$13.49

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

SPRING

1NV-26304-00-00

$11.99

COLLAR

1NV-26259-01-00

$7.99

COLLAR

1NV-2625K-00-00

Unavailable

WASHER

1NV-26129-00-00

Unavailable

LEVER, THROTTLE

BB5-2625G-02-00

Unavailable

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

SCREW, PAN HEAD

98517-05020-00

$4.25

WASHER, PLAIN (646)

92990-05600-00

Unavailable

CABLE, THROTTLE 1

BJ5-26311-00-00

Unavailable

CLAMP

5B4-F1338-00-00

Unavailable

STAY

BJ5-F6292-00-00

Unavailable

GROMMET(3GM)

90480-10517-00

Unavailable

WIRE, BRAKE 1

BB5-F6341-00-00

Unavailable

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable
