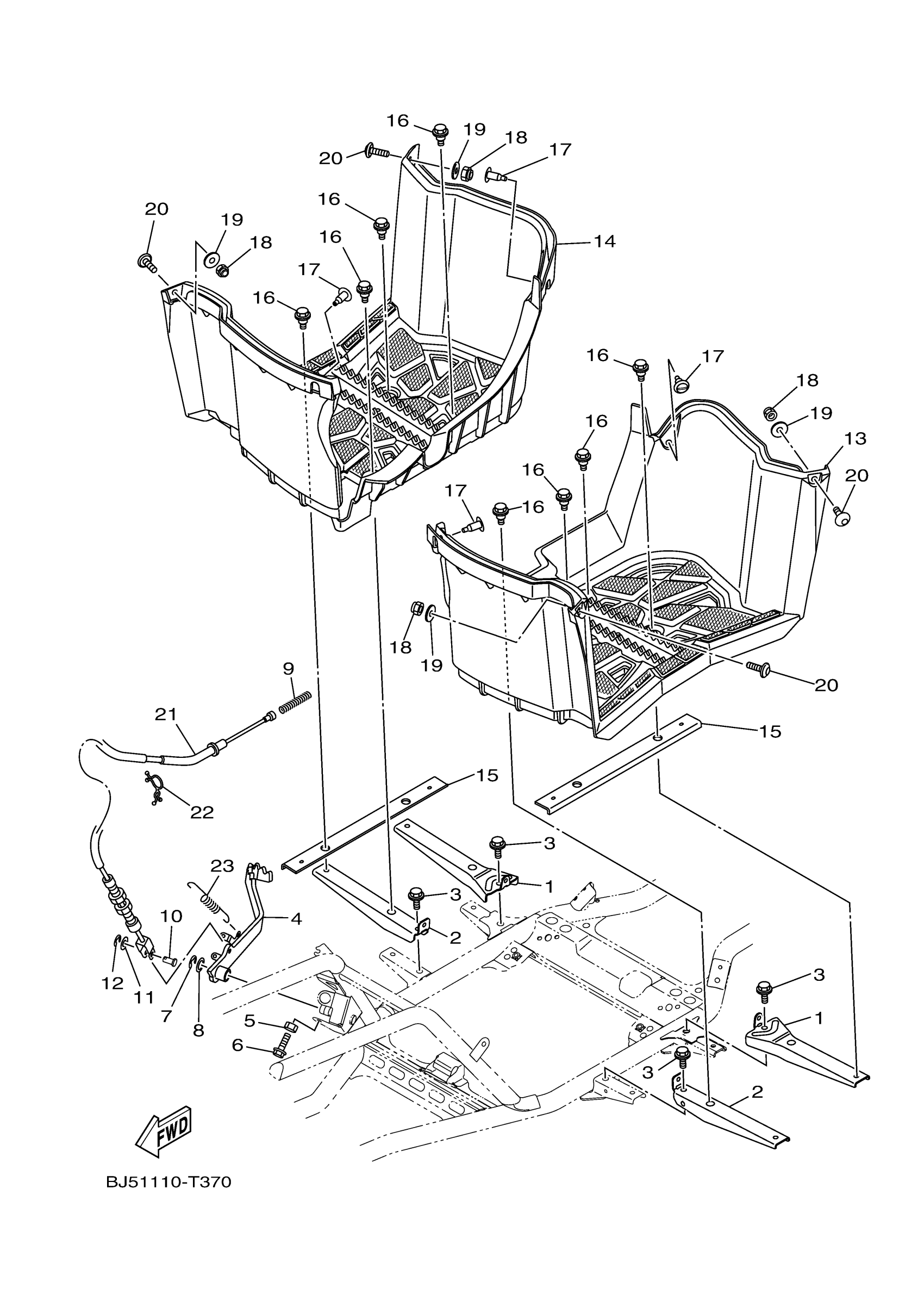

Yamaha YFM45KDXTL (KODIAK 450) D297 2026 STAND & FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

BB5-F7471-00-00

Unavailable

2

BAR, FOOTREST 1

5ND-F7471-01-00

$14.49

3

BOLT, FLANGE DEEP RECESS

95D32-08012-00

$0.75

4

PEDAL, BRAKE

1CT-F7211-01-00

$34.99

5

NUT(JN5)

95317-06700-00

$8.49

6

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$1.23

7

CIRCLIP (137)

93430-10015-00

$9.49

8

WASHER, PLATE

90201-14023-00

$5.60

9

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

10

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

PIN, COTTER (648)

91490-20015-00

$2.20

13

COVER 1

BB5-F7453-00-00

$68.99

14

COVER 2

BB5-F7463-00-00

$68.99

15

PLATE 1

5ND-F7445-00-00

$10.99

16

BOLT

90109-06840-00

Unavailable

17

RIVET

90269-06804-00

Unavailable

18

NUT, NYLON

95707-06300-00

Unavailable

19

WASHER, PLATE

90201-06078-00

Unavailable

20

BOLT

90111-06051-00

Unavailable

21

CABLE, BRAKE

BB5-F6361-00-00

Unavailable

22

CLAMP(N30)

90464-21234-00

Unavailable

23

SPRING, TENSION

90506-20010-00

Unavailable
