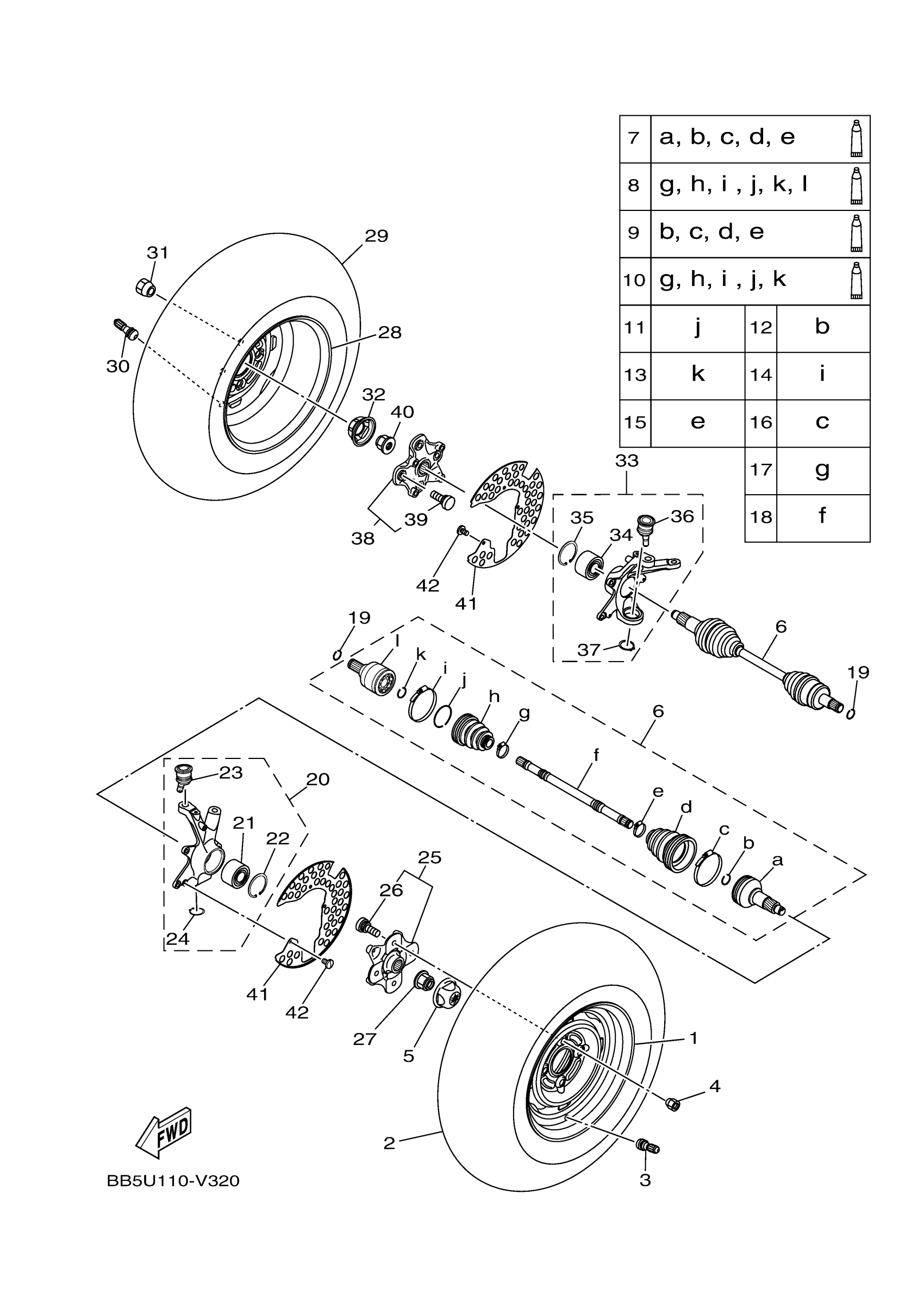

Yamaha YFM45KDXSL (KODIAK 450) D294 2025 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

B16-F5180-00-00

$208.99

2

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10022-00

$3.81

5

CAP, WHEEL

1HP-F512A-00-00

$2.13

6

DRIVE SHAFT ASSY

B5R-2518F-01-00

$400.99

7

BALL JOINT SET

28P-2510F-05-00

$506.99

8

DOUBLE OFF SET JOI

B5R-2510J-01-00

$191.99

9

BOOT SET (BALL JOI

28P-2510G-02-00

$59.99

10

BOOT SET(DOUBLE OFFSET JOINT)

B5R-2510H-01-00

$44.99

11

CIRCLIP

4S1-2512H-00-00

Unavailable

12

CIRCLIP

3B4-2512H-00-00

$6.99

13

SNAP RING

2HR-2512J-00-00

$6.99

14

BOOT BAND

4S1-2511G-00-00

Unavailable

15

BOOT BAND (SMALL)

28P-2512G-00-00

$16.49

16

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

17

BOOT BAND (SMALL)

B5R-2512G-00-00

Unavailable

18

DRUM, BRAKE

B5R-2511E-00-00

Unavailable

19

CIRCLIP(2HR)

93450-22119-00

Unavailable

20

STEERING KNUCKLE A

BB5-F3501-00-00

Unavailable

21

BEARING

93305-00602-00

Unavailable

22

CIRCLIP

99009-55500-00

Unavailable

23

BALL JOINT 2

3B4-23579-01-00

Unavailable

24

CIRCLIP(4A6)

99009-30400-00

Unavailable

25

HUB ASSY 2

B16-F510D-03-00

Unavailable

26

BOLT, SERRATION

90114-10014-00

Unavailable

27

NUT

90179-20016-00

Unavailable

28

WHEEL COMP.

B16-F5180-00-00

$208.99

29

TIRE (AT25X8-12 CU905 4PR TL)

94108-12823-00

Unavailable

30

VALVE, RIM

93900-00812-00

Unavailable

31

NUT

90179-10022-00

$3.81

32

CAP, WHEEL

1HP-F512A-00-00

$2.13

33

STEERING KNUCKLE A

BB5-F3502-00-00

Unavailable

34

BEARING

93305-00602-00

Unavailable

35

CIRCLIP

99009-55500-00

Unavailable

36

BALL JOINT 2

3B4-23579-01-00

Unavailable

37

CIRCLIP(4A6)

99009-30400-00

Unavailable

38

HUB ASSY 2

B16-F510D-03-00

Unavailable

39

BOLT, SERRATION

90114-10014-00

Unavailable

40

NUT

90179-20016-00

Unavailable

41

RING, WHEEL 1 (LEF

BB5-F514A-00-00

Unavailable

42

SCREW, BIND(1JK)

98980-06010-00

Unavailable
