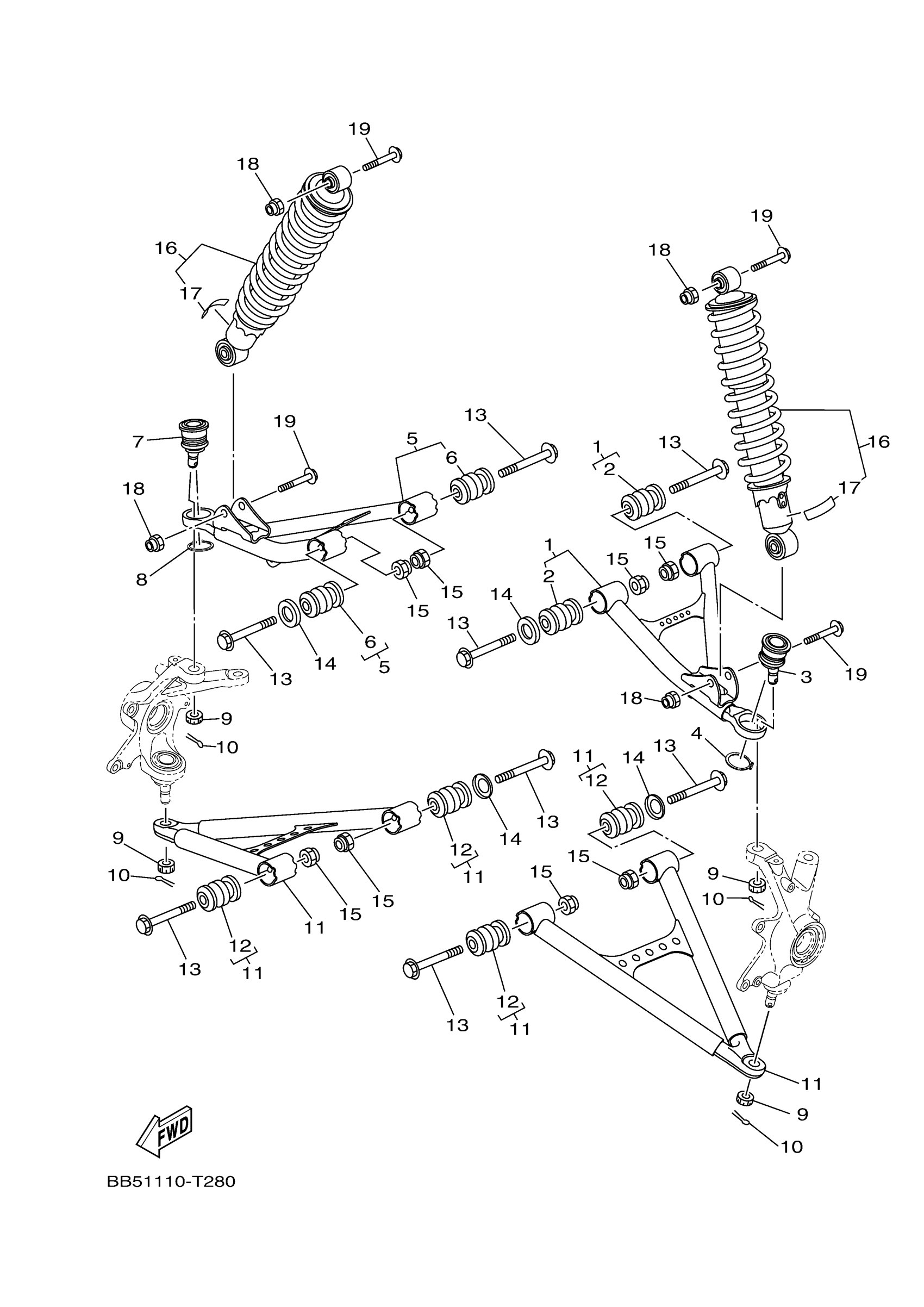

Yamaha YFM45KDXSL (KODIAK 450) D294 2025 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

BB5-F3540-02-00

Unavailable

2

BUSH

1HP-F3526-00-00

$20.42

3

BALL JOINT 2

3B4-23579-01-00

$70.02

4

CIRCLIP(4A6)

99009-30400-00

$6.11

5

FRONT UPPER ARM CO

BB5-F3550-02-00

$51.64

6

BUSH

1HP-F3526-00-00

$20.42

7

BALL JOINT 2

3B4-23579-01-00

$70.02

8

CIRCLIP(4A6)

99009-30400-00

$6.11

9

NUT, CASTLE

90171-12001-00

$2.66

10

PIN, COTTER

91490-25020-00

$2.73

11

FRONT LOWER ARM CO

BB5-F3570-01-00

$48.93

12

BUSH

1HP-F3526-00-00

$20.42

13

BOLT, FLANGE(7LU)

95817-10070-00

Unavailable

14

WASHER

5KM-22149-10-00

$5.96

15

NUT, S/L FLANGE

95602-10200-00

$2.14

16

SHOCK ABSORBER ASS

BB5-F3390-00-00

Unavailable

17

LABEL, WARNING

BB5-F2259-00-00

Unavailable

18

NUT, SELF-LOCKING

90185-10012-00

Unavailable

19

BOLT, FLANGE

90105-10841-00

Unavailable
