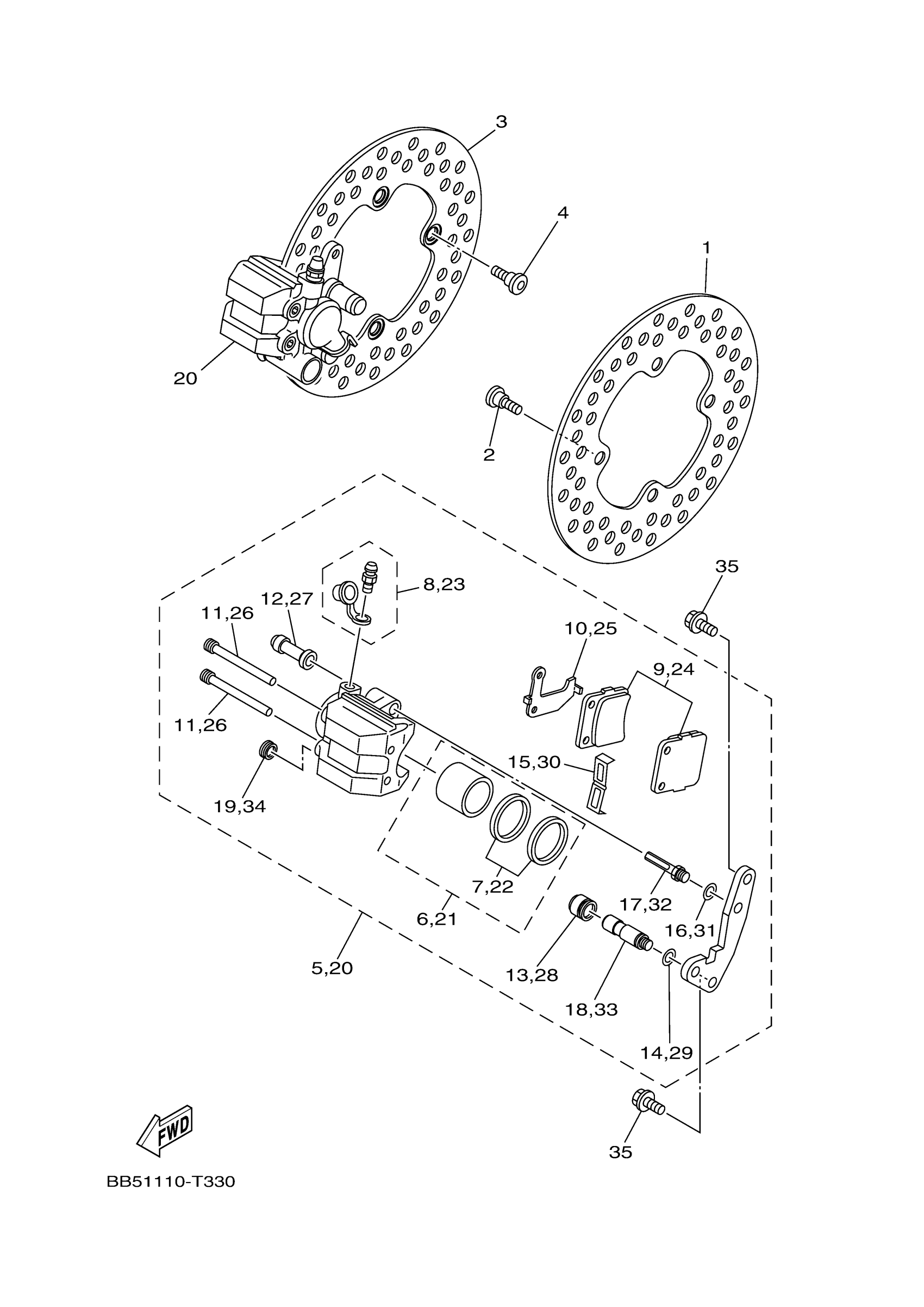

Yamaha YFM45KDXSL (KODIAK 450) D294 2025 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

BB5-F582T-00-00

$35.37

2

BOLT

90109-08087-00

$2.47

3

DISC, BRAKE (LEFT)

BB5-F582T-00-00

$35.37

4

BOLT

90109-08087-00

$2.47

5

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$242.40

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

7

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

10

SHIM, CALIPER

3GD-25827-00-00

Unavailable

11

PIN, PAD

3GD-25933-00-00

$21.38

12

BOOT 2

1UY-25937-51-00

$11.48

13

BOOT, CALIPER

1UY-25917-51-00

$5.50

14

SPRING, PAD

1UY-25934-51-00

$4.17

15

SUPPORT, PAD

1UY-25919-51-00

$19.98

16

WASHER, SPRING

1UY-25938-51-00

Unavailable

17

BOLT

1UY-25926-51-00

Unavailable

18

PIN, SLIDE

3GD-25914-00-00

Unavailable

19

DUST PLUG

3GD-25916-00-00

Unavailable

20

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

Unavailable

21

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

22

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

23

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

24

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

25

SHIM, CALIPER

3GD-25828-00-00

Unavailable

26

PIN, PAD

3GD-25933-00-00

$21.38

27

BOOT 2

1UY-25937-51-00

$11.48

28

BOOT, CALIPER

1UY-25917-51-00

$5.50

29

SPRING, PAD

1UY-25934-51-00

$4.17

30

SUPPORT, PAD

1UY-25919-51-00

$19.98

31

WASHER, SPRING

1UY-25938-51-00

Unavailable

32

BOLT

1UY-25926-51-00

Unavailable

33

PIN, SLIDE

3GD-25914-00-00

Unavailable

34

DUST PLUG

3GD-25916-00-00

Unavailable

35

BOLT, FLANGE

90105-08161-00

Unavailable
