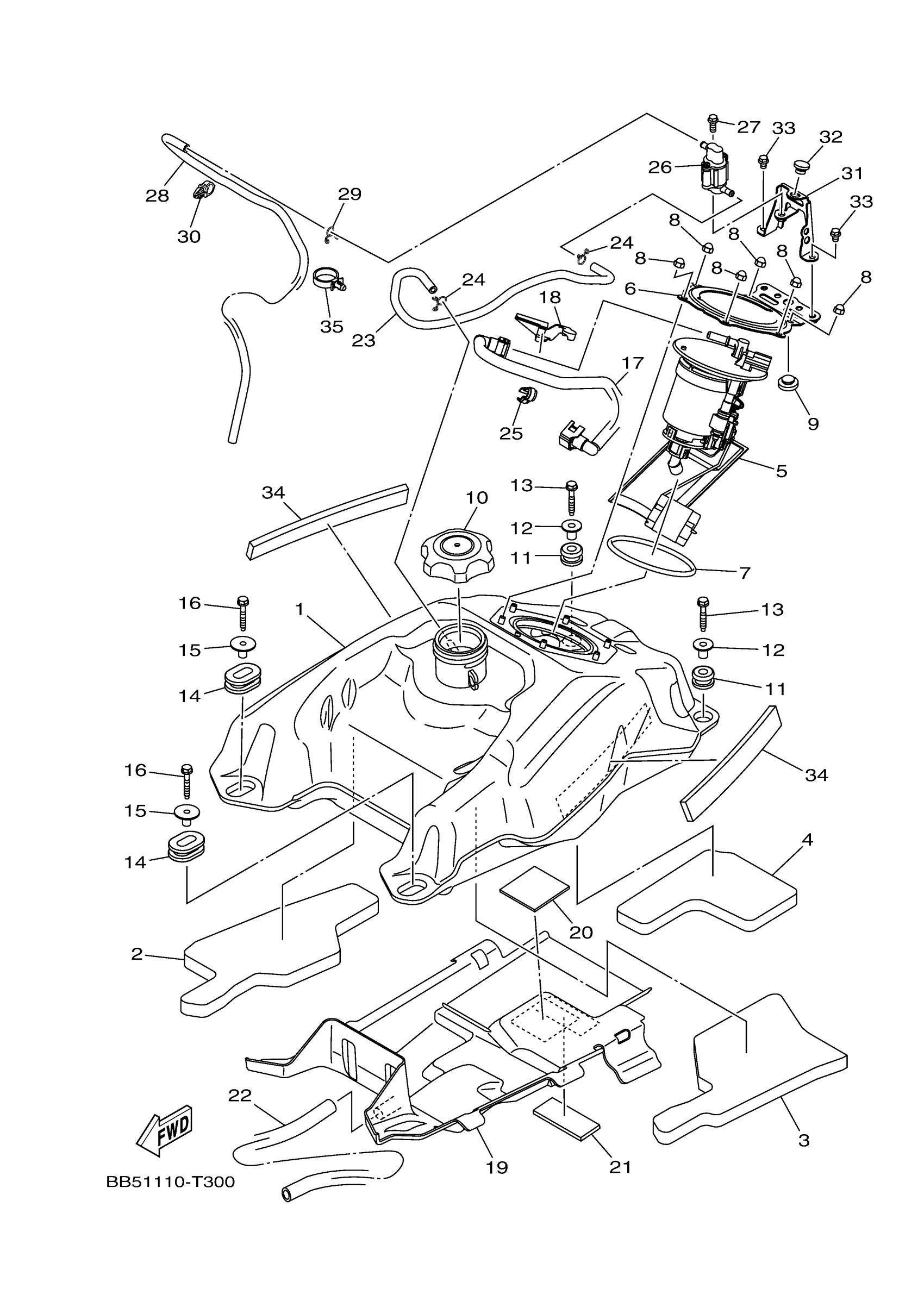

Yamaha YFM45KDXPL (KODIAK 450) BJ5V0 2023 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BB5-F4110-01-00

$210.99

2

INSULATOR 3

BB5-F172S-00-00

$14.99

3

INSULATOR 4

BB5-F173S-00-00

$13.49

4

INSULATOR 5

BB5-F174S-00-00

$8.49

5

FUEL PUMP COMP.

BB5-13907-03-00

$726.99

6

BRACKET, FUEL PUMP

BB5-24491-00-00

Unavailable

7

O-RING

1S3-24486-00-00

$17.49

8

NUT (J17)

95380-06800-00

$8.49

9

STOPPER, MAIN STAND

128-27114-00-00

$7.99

10

CAP ASSY

BKP-24610-00-00

$31.99

11

GROMMET (4V1)

90480-18290-00

$8.49

12

COLLAR (36R)

90387-066J1-00

$8.49

13

BOLT, WITH WASHER

90119-06883-00

$4.51

14

GROMMET(38W)

90480-01400-00

$13.49

15

COLLAR

90387-07021-00

$7.49

16

BOLT, WITH WASHER

90119-06883-00

$4.51

17

PIPE, FUEL 1

BB5-13971-01-00

Unavailable

18

CLAMP

90464-14004-00

Unavailable

19

DAMPER, PLATE 1

BB5-F414H-00-00

Unavailable

20

DAMPER

1B2-F174Y-00-00

Unavailable

21

DAMPER, RUBBER 1

BB5-21485-00-00

Unavailable

22

HOSE

90445-19005-00

Unavailable

23

PIPE 2

BB5-F4312-00-00

Unavailable

24

CLIP

90467-090A2-00

Unavailable

25

CLAMP(53Y)

90464-15065-00

Unavailable

26

PIPE JOINT ASSY

BB5-24380-00-00

Unavailable

27

BOLT, FLANGE DEEP RECESS

95E32-06014-00

Unavailable

28

HOSE (L960)

90445-095K5-00

Unavailable

29

CLIP

90467-090A2-00

Unavailable

30

CLAMP

90464-12830-00

Unavailable

31

STAY

BB5-F4216-00-00

Unavailable

32

PLUG (11H)

90338-11125-00

Unavailable

33

BOLT, FLANGE DEEP RECESS

95E32-06010-00

Unavailable

34

DAMPER, PLATE

90520-08001-00

Unavailable

35

CLAMP(4NK)

90464-24230-00

Unavailable
