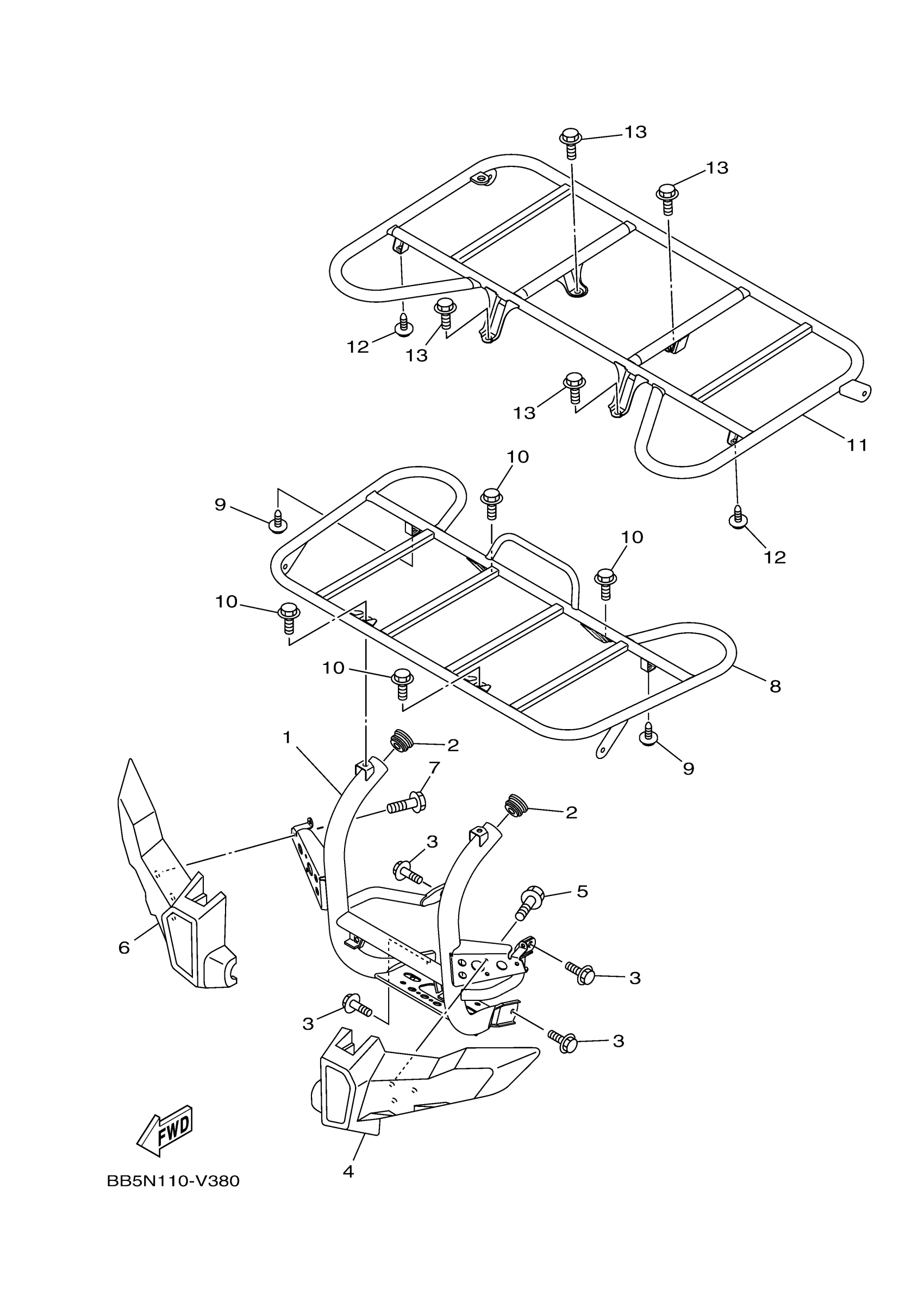

Yamaha YFM45KDXMR (KODIAK 450) BJ5L1 2021 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT

B5R-F845N-10-00

Unavailable

2

PLUG

90338-29800-00

Unavailable

3

BOLT, FLANGE

95817-08014-00

$1.81

4

DAMPER 1

37S-F8415-00-00

$78.27

5

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.58

6

DAMPER 2

37S-F8416-00-00

$75.99

7

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.58

8

CARRIER, FRONT

BB5-F4841-30-00

$125.39

9

BOLT, WITH WASHER

90119-06157-00

$6.23

10

BOLT, FLANGE

95817-08012-00

$3.71

11

CARRIER, REAR

BB5-F4842-30-00

Unavailable

12

BOLT, WITH WASHER

90119-06157-00

$6.23

13

BOLT, FLANGE

95817-08012-00

$3.71
