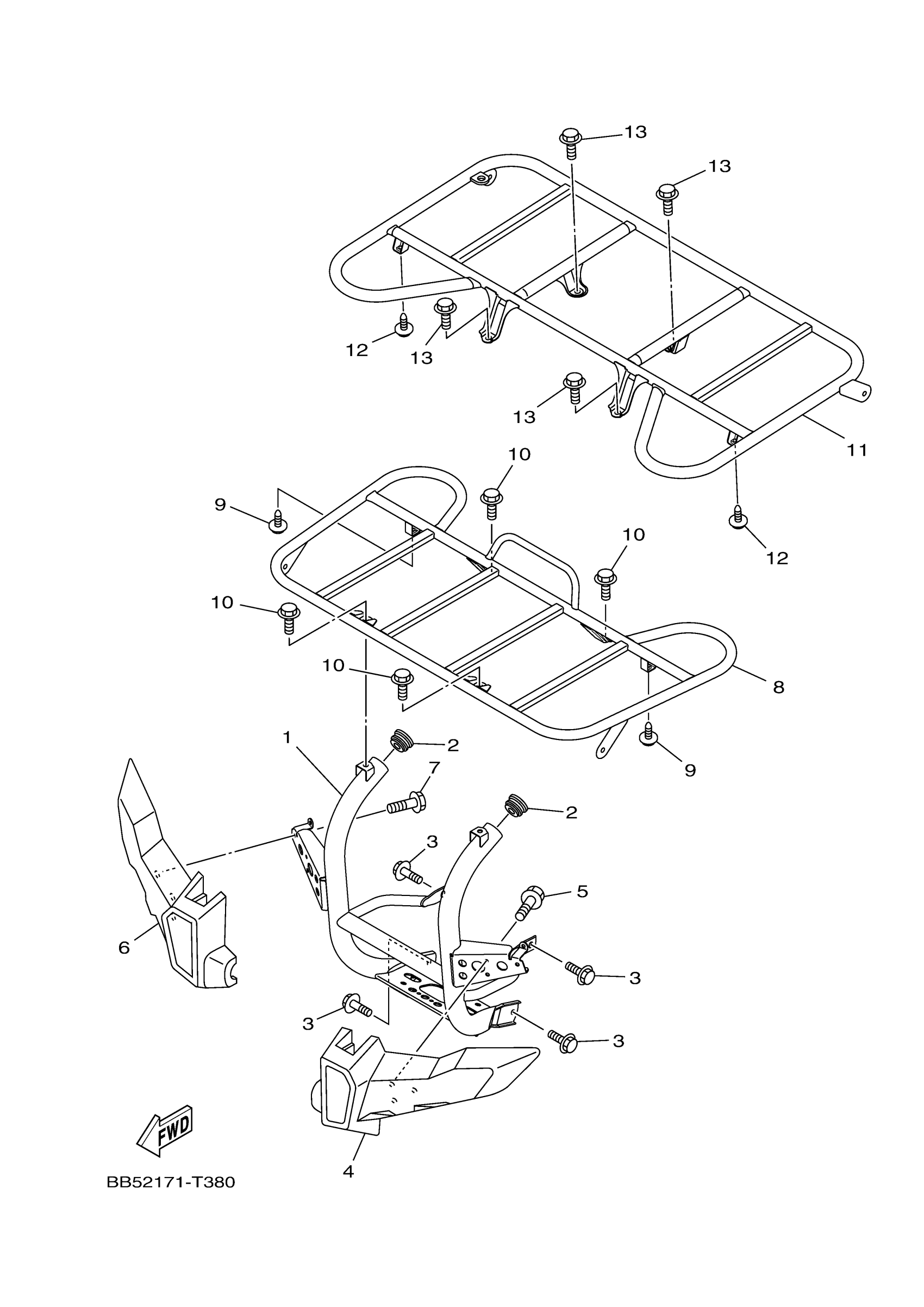

Yamaha YFM45KDXKR (KODIAK 450 4WD) BJ571 2019 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT

37S-F845N-01-00

Unavailable

2

PLUG

90338-29800-00

Unavailable

3

BOLT, FLANGE

95817-08014-00

$1.81

4

DAMPER 1

37S-F8415-00-00

$76.31

5

BOLT, FLANGE

95812-06010-00

$2.71

6

DAMPER 2

37S-F8416-00-00

$74.09

7

BOLT, FLANGE

95812-06010-00

$2.71

8

CARRIER, FRONT

BB5-F4841-10-00

$154.44

9

BOLT, WITH WASHER

90119-06157-00

$6.23

10

BOLT, FLANGE

95817-08012-00

$3.71

11

CARRIER, REAR

BB5-F4842-10-00

Unavailable

12

BOLT, WITH WASHER

90119-06157-00

$6.23

13

BOLT, FLANGE

95817-08012-00

$3.71
