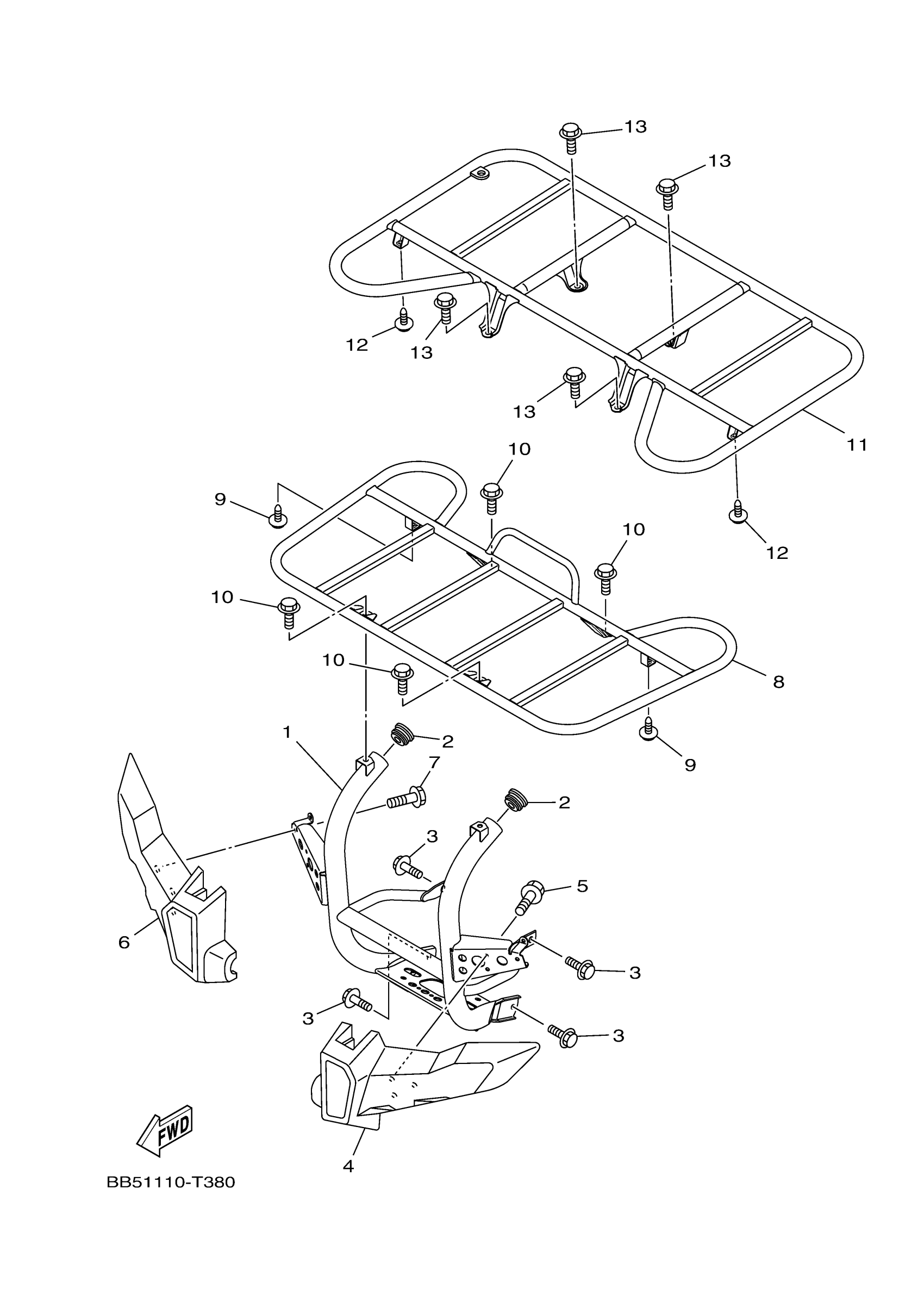

Yamaha YFM45KDXJR (KODIAK 450 4WD) BJ511 2018 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT

37S-F845N-01-00

Unavailable

2

PLUG

90338-29800-00

$8.49

3

BOLT, FLANGE

95817-08014-00

$5.60

4

DAMPER 1

37S-F8415-00-00

$94.99

5

BOLT, FLANGE

95812-06010-00

$2.98

6

DAMPER 2

37S-F8416-00-00

$91.99

7

BOLT, FLANGE

95812-06010-00

$2.98

8

CARRIER, FRONT

BB5-F4841-00-00

$168.99

9

BOLT, WITH WASHER

90119-06157-00

$8.49

10

BOLT, FLANGE

95817-08012-00

$5.49

11

CARRIER, REAR

BB5-F4842-00-00

$181.99

12

BOLT, WITH WASHER

90119-06157-00

$8.49

13

BOLT, FLANGE

95817-08012-00

$5.49
