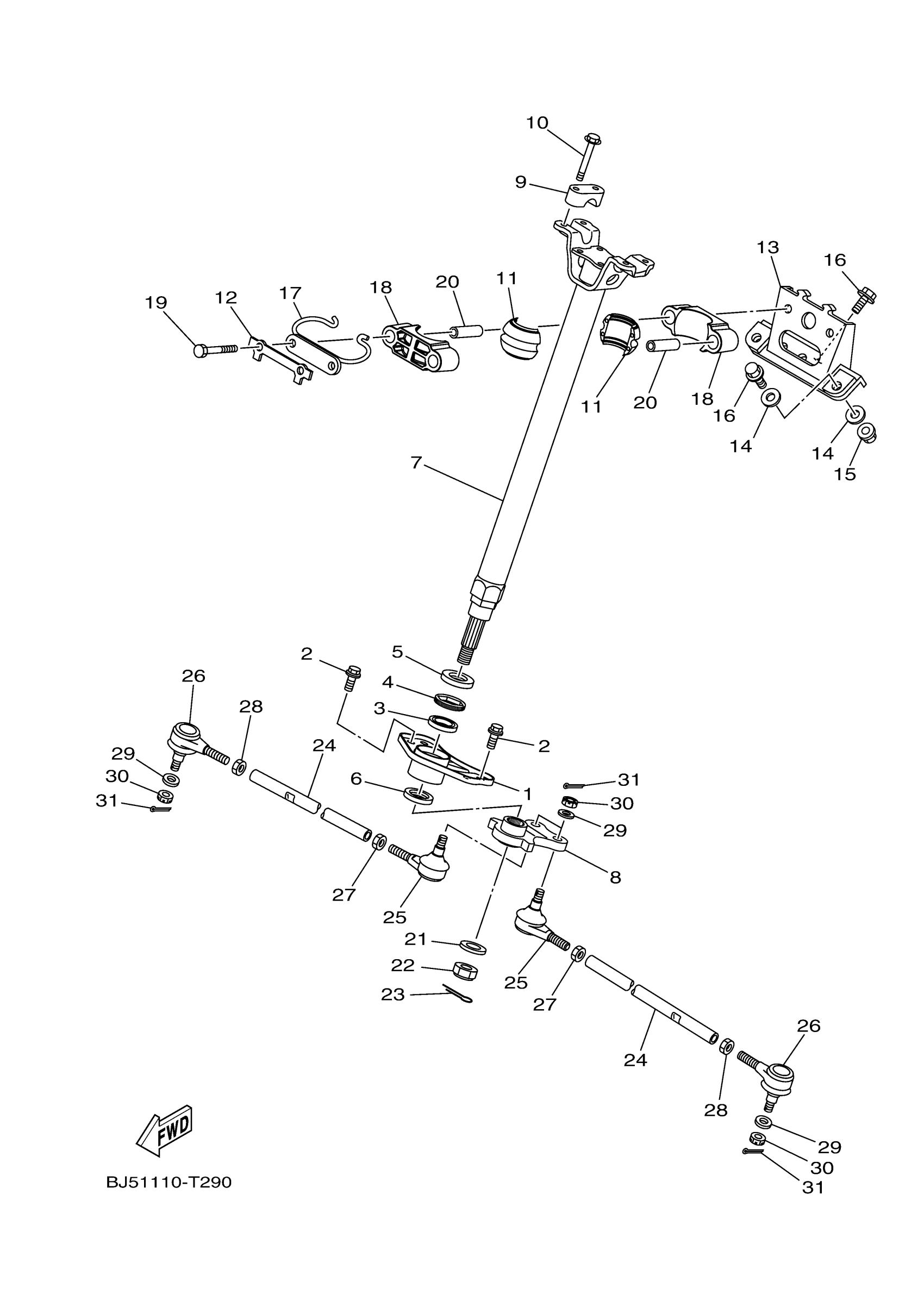

Yamaha YFM45KDHKF (KODIAK 450 4WD HUNTER) BJ5B 2019 STEERING Diagram

#

Description
Price

1

BRACKET, STEERING

1CU-F131H-00-00

$27.99

2

BOLT, FLANGE

90105-08237-00

$3.28

3

BEARING

93306-203YN-00

$11.49

4

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

5

OIL SEAL (25X36X8-334)

93102-25099-00

$13.49

6

HOLDER, BEARING

2GU-23872-00-00

$25.99

7

COLUMN, STEERING 2

BJ5-F3813-00-00

$74.99

8

ARM, PITMAN

BJ5-F3816-01-00

$28.99

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

10

BOLT, FLANGE

95812-08030-00

$3.81

11

PLANE BEARING, STE

1CT-F3812-00-00

$7.99

12

WASHER, LOCK 1

1CT-F3894-00-00

Unavailable

13

BRACKET, STEERING

1CT-F253F-00-00

Unavailable

14

WASHER, PLATE

90201-08055-00

$8.49

15

NUT(4KM)

90179-08674-00

$7.49

16

BOLT, FLANGE

95812-08020-00

Unavailable

17

BRACKET, STEERING

1CT-F3868-00-00

Unavailable

18

BRACKET, STEERING

1CT-F1957-00-00

Unavailable

19

BOLT

97012-08080-00

Unavailable

20

COLLAR, 2

1CT-F1545-01-00

Unavailable

21

WASHER, PLATE

90201-14021-00

Unavailable

22

NUT, SELF-LOCKING

90185-14009-00

Unavailable

23

PIN, COTTER

91490-20035-00

Unavailable

24

ROD, TIE

BB5-23831-00-00

Unavailable

25

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

26

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

27

NUT (682)

95380-10700-00

Unavailable

28

NUT

90170-10010-00

Unavailable

29

WASHER (25G)

90209-10229-00

Unavailable

30

NUT, CASTLE

90171-10001-00

Unavailable

31

PIN, COTTER

91490-25020-00

Unavailable
