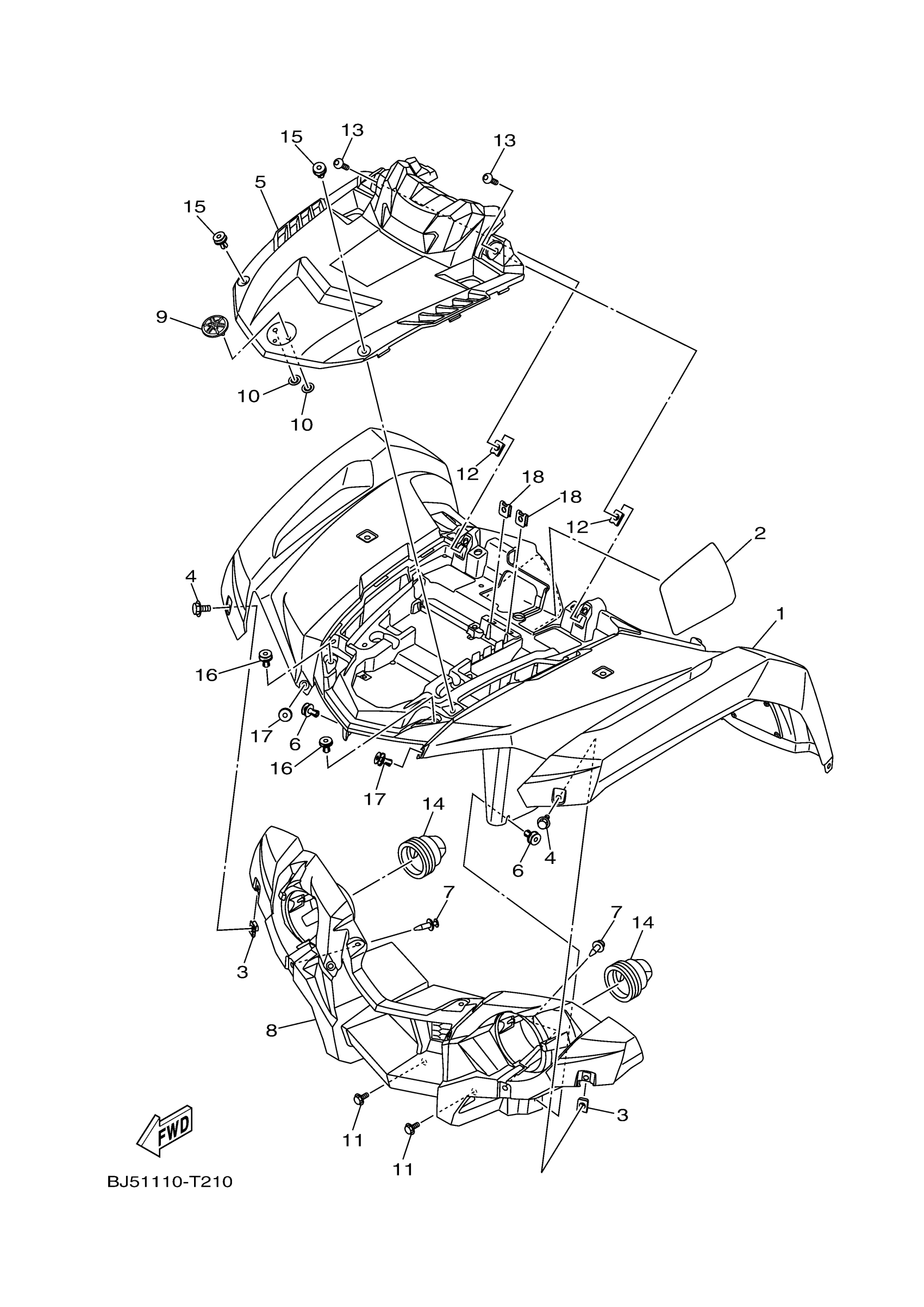

Yamaha YFM45KDHKF (KODIAK 450 4WD HUNTER) BJ5B 2019 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

BB5-F1500-A2-00

$147.24

2

SEAL 1

BB5-F1575-00-00

$4.62

3

NUT, SPRING(4ES)

90183-06069-00

$5.69

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

FRONT PANEL COMP.

BB5-F330D-10-00

$153.70

6

RIVET

90269-07010-00

$3.49

7

RIVET

90269-06800-00

$1.35

8

GRILLE, FRONT

BB5-F8309-00-00

$39.26

9

TUNING FORK MARK

1XD-F175B-01-00

$12.28

10

NUT, SPRING

90183-06071-00

$0.50

11

BOLT

90109-06043-00

Unavailable

12

NUT, SPRING(4ES)

90183-06069-00

$5.69

13

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$4.60

14

CAP

5UH-F8349-00-00

$11.65

15

RIVET

90269-07010-00

$3.49

16

RIVET

90269-07010-00

$3.49

17

RIVET

90269-07010-00

$3.49

18

NUT, SPRING

90183-05008-00

Unavailable
