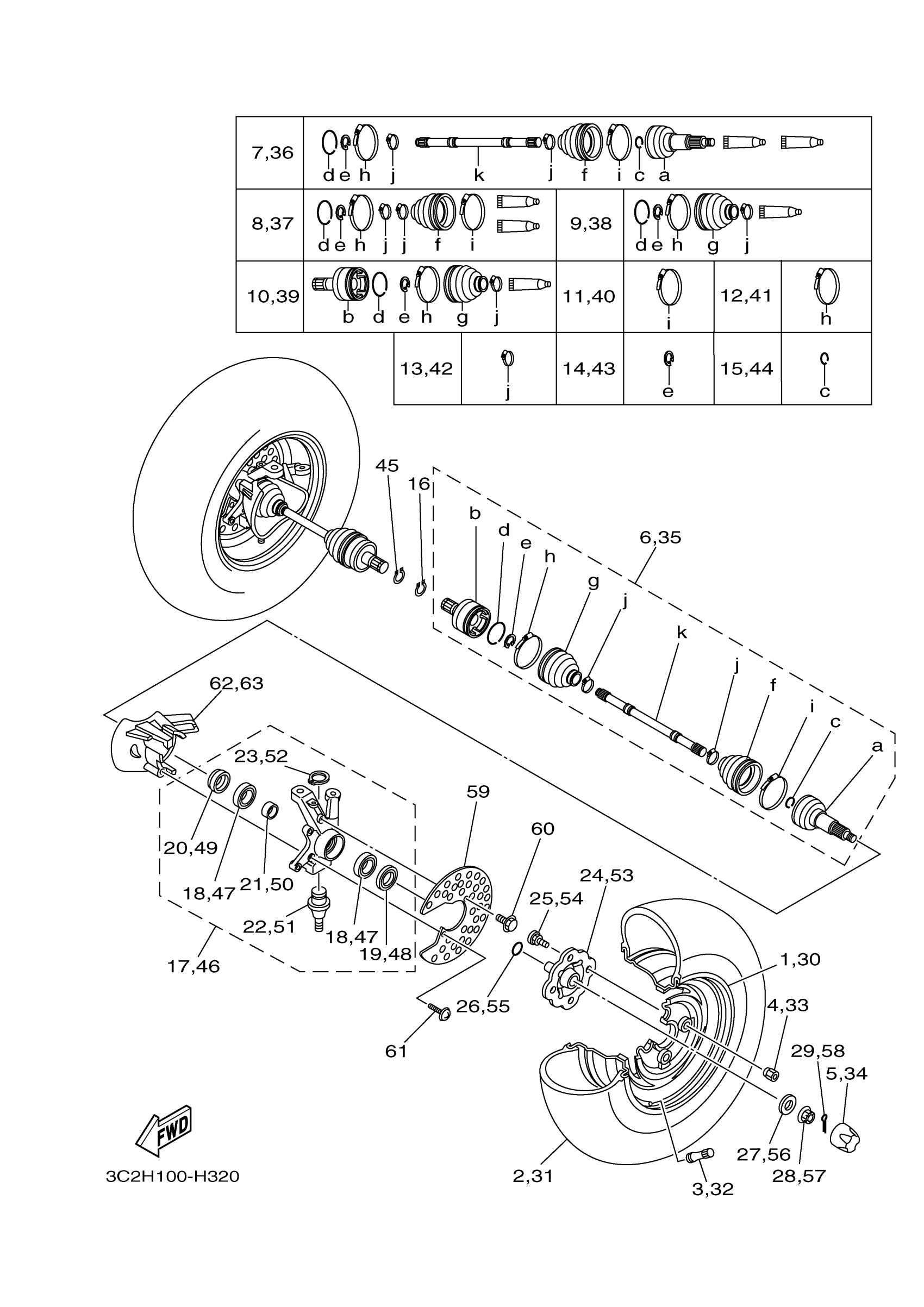

Yamaha YFM45FXZW (WOLVERINE 450 4WD) 3C2K 2010 FRONT WHEEL Diagram
#
1
WHEEL COMP.
3C2-F5180-10-00
Unavailable
2
23 X 8.00 R12 M937 3-STAR RADL
94108-12814-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
6
DRIVE SHAFT ASSY
5TE-F518F-00-00
Unavailable
7
. BALL JOINT SET
5TE-F510F-00-00
Unavailable
8
BOOT SET (BALL JOINT)
5GH-2510G-00-00
Unavailable
10
DOUBLE OFF SET JOINT
5GH-2510J-00-00
Unavailable
12
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
16
CIRCLIP(2HR)
93450-22119-00
Unavailable
17
STEERING KNUCKLE A
5ND-F3501-11-00
Unavailable
18
BEARING
93306-006Y2-00
Unavailable
19
OIL SEAL
93106-38046-00
Unavailable
20
OIL SEAL
93106-38047-00
Unavailable
21
SPACER(2HR)
90560-30325-00
Unavailable
22
BALL JOINT 1
37S-23549-01-00
Unavailable
23
CIRCLIP
93410-32075-00
Unavailable
24
HUB,FRONT
5ND-F5111-30-00
Unavailable
25
BOLT, SERRATION
90114-10014-00
Unavailable
26
O-RING(47X)
93210-27666-00
Unavailable
27
WASHER, PLATE
90201-16804-00
Unavailable
28
NUT, CASTLE
90171-16002-00
Unavailable
29
PIN, COTTER
91490-30030-00
Unavailable
30
WHEEL COMP.
3C2-F5180-10-00
Unavailable
31
23 X 8.00 R12 M937 3-STAR RADL
94108-12814-00
Unavailable
32
VALVE, RIM
93900-00812-00
Unavailable
35
DRIVE SHAFT ASSY
5TE-F518F-00-00
Unavailable
36
. BALL JOINT SET
5TE-F510F-00-00
Unavailable
37
BOOT SET (BALL JOINT)
5GH-2510G-00-00
Unavailable
39
DOUBLE OFF SET JOINT
5GH-2510J-00-00
Unavailable
41
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
45
CIRCLIP(2HR)
93450-22119-00
Unavailable
46
STEERING KNUCKLE A
5ND-F3502-11-00
Unavailable
47
BEARING
93306-006Y2-00
Unavailable
48
OIL SEAL
93106-38046-00
Unavailable
49
OIL SEAL
93106-38047-00
Unavailable
50
SPACER(2HR)
90560-30325-00
Unavailable
51
BALL JOINT 1
37S-23549-01-00
Unavailable
52
CIRCLIP
93410-32075-00
Unavailable
53
HUB,FRONT
5ND-F5111-30-00
Unavailable
54
BOLT, SERRATION
90114-10014-00
Unavailable
55
O-RING(47X)
93210-27666-00
Unavailable
56
WASHER, PLATE
90201-16804-00
Unavailable
57
NUT, CASTLE
90171-16002-00
Unavailable
58
PIN, COTTER
91490-30030-00
Unavailable
59
RING, WHEEL 1 (LEF
5ND-F514A-00-00
Unavailable
60
BOLT, FLANGE
95817-06012-00
Unavailable
61
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
62
MUD GUARD 1
4S2-F2327-01-00
Unavailable
63
MUD GUARD 2
4S2-F2328-01-00
Unavailable
