Description

Price

1

CRANKSHAFT ASSY

5ND-11400-00-00

$700.99

2

CRANK SUB ASSY 1

5ND-11401-09-00

$263.99

3

CRANK SUB ASSY 2

5ND-11402-09-00

Unavailable

4

PIN, CRANK 1

5GH-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL (3TB)

93310-635D4-00

Unavailable

6

WASHER, PLATE(1XL)

90201-356K1-00

$14.99

7

ROD, CONNECTING

5GH-11651-01-00

$151.99

8

SEAL, CRANK

5GH-11447-00-00

$43.99

9

KEY, WOODRUFF

90280-05001-00

$12.49

10

WASHER, PLATE

90201-10038-00

$5.60

11

BOLT

90101-10017-00

$4.51

12

O-RING (538)

93210-16290-00

Unavailable

13

BEARING(4GB)

93306-30629-00

$72.99

14

PISTON (STD)

5ND-11631-00-YX

$122.99

14

PISTON (0.50MM O/S)

5ND-11636-00-00

$120.99

14

PISTON (1.00MM O/S)

5ND-11638-00-00

Unavailable

15

PISTON RING SET (STD)

5ND-11603-00-00

Unavailable

15

PISTON RING SET (0.50MM O/S)

5ND-11605-00-00

Unavailable

15

PISTON RING SET (1.00MM O/S)

5ND-11607-00-00

Unavailable

16

PIN, PISTON

3LD-11633-00-00

Unavailable

17

CIRCLIP 341116340000

93450-22027-00

Unavailable

18

BALANCER ASSY

5ND-11500-00-00

Unavailable

19

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

20

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

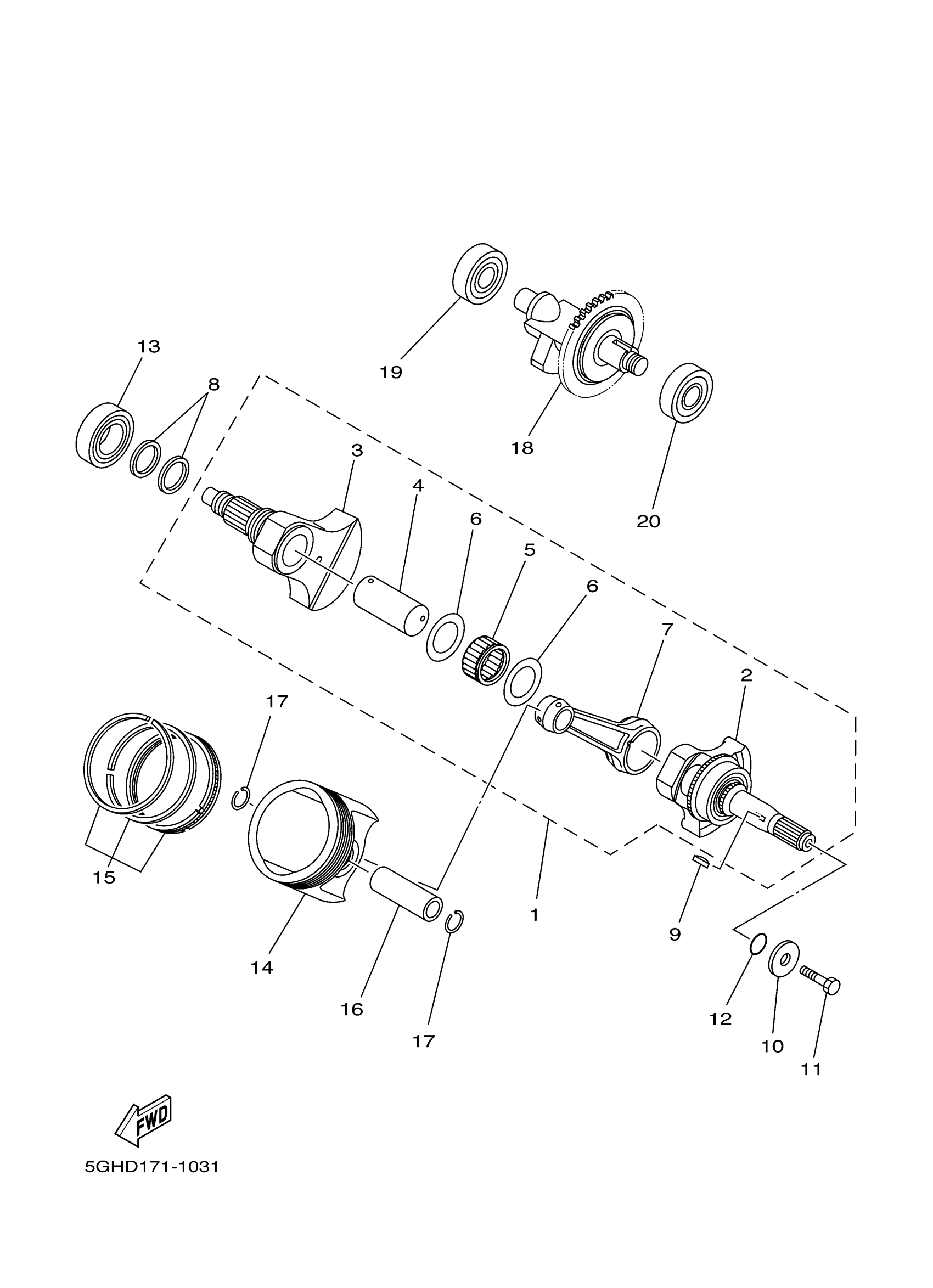

Yamaha YFM45FXZW (WOLVERINE 450 4WD) 3C2K 2010 CRANKSHAFT & PISTON Diagram

CRANKSHAFT ASSY

CRANK SUB ASSY 1

CRANK SUB ASSY 2

PIN, CRANK 1

BEARING, CYLINDRICAL (3TB)

WASHER, PLATE(1XL)

ROD, CONNECTING

SEAL, CRANK

KEY, WOODRUFF

WASHER, PLATE

BOLT

O-RING (538)

BEARING(4GB)

PISTON (STD)

PISTON (0.50MM O/S)

PISTON (1.00MM O/S)

PISTON RING SET (STD)

PISTON RING SET (0.50MM O/S)

PISTON RING SET (1.00MM O/S)

PIN, PISTON

CIRCLIP 341116340000

BALANCER ASSY

BRG,R-B 6303 47MM 115G NK

BRG,R-B 6304C3 52MM 144G KY
